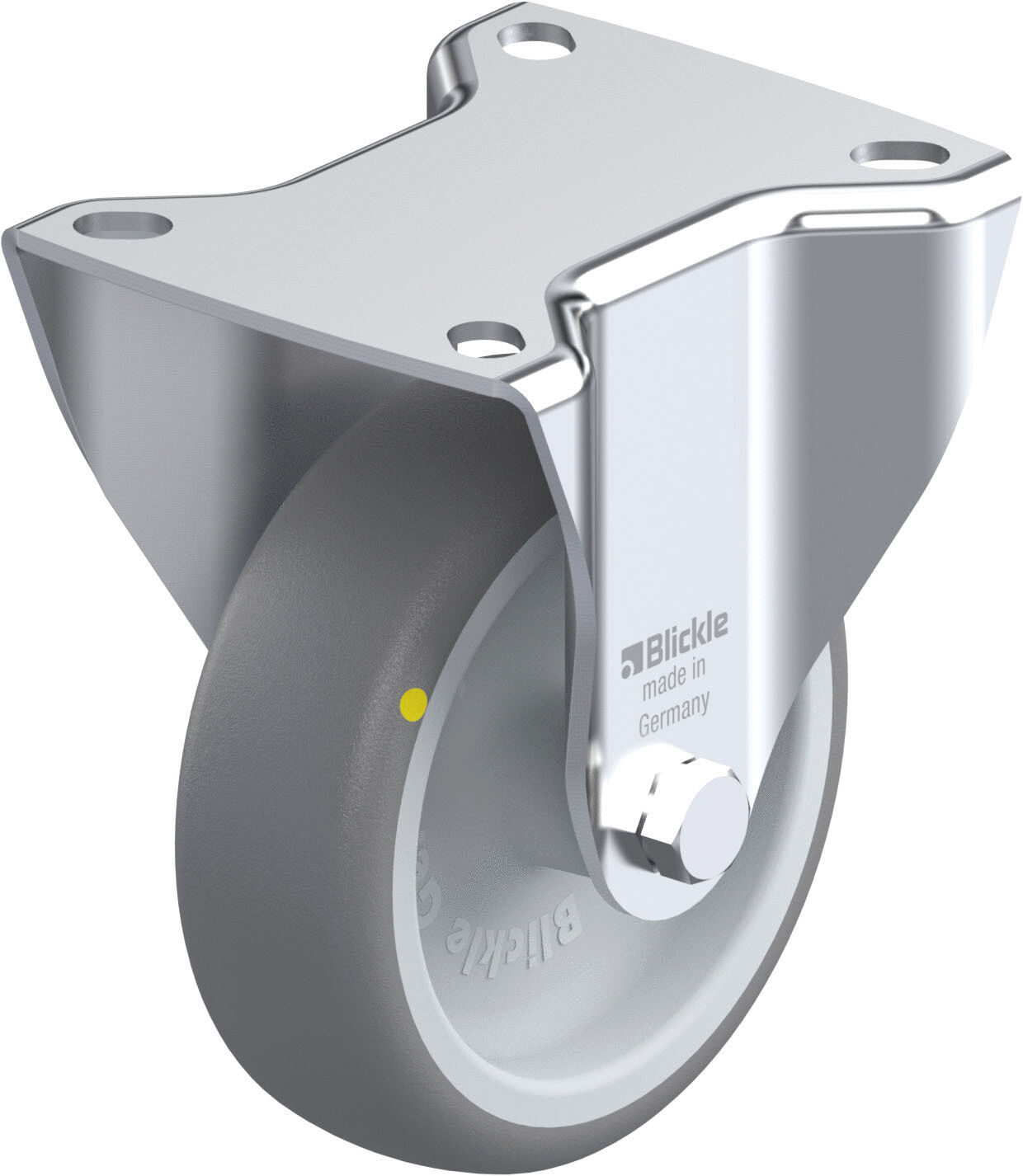

ESD Fixed castor with top plate 600, load capacity 175 kg

(Product No.: 625.100.ELS)

ESD Fixed castor with top plate 600, load capacity 175 kg

Name: ESD Fixed castor with top plate 600, load capacity 175 kg
SKU: 625.100.ELS
Price: 14.95 CHF
Availability: InStock

ArticleNo: 625.100.ELS

ESD Fixed castor with top plate 600, load capacity 175 kg

dpvlink:

8051

Load capacity :

100 kg

Load capacity (static):

175 kg

Wheel Ø:

100 mm

Total height:

125 mm

Properties:

Further product information

Name:

14.95 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD Fixed castor with top plate 600, load capacity 175 kg

The ESD swivel casters with top plate 600 from Blickle are characterized by a high load capacity of 175 kg under static load and 70 kg in motion. The casters consist of a robust steel sheet housing from series B, which is galvanically zinc plated and blue passivated, as well as Cr6-free, ensuring high corrosion resistance.
The tread of the wheel from the TPA series is made of a high-quality thermoplastic rubber elastomer (TPE) with a Shore hardness of 85 A, allowing for mark-free and oil-resistant use. The wheel body is made of impact-resistant polypropylene. This material combination offers very high chemical resistance and is temperature resistant from -20 °C to +60 °C, although with reduced load capacity at temperatures above +30 °C.
The casters comply with the ESD standard DIN EN 61340-5-1 and are therefore conductive, making them ideal for use in ESD-protected areas. With a wheel width of 32 mm, a diameter of 100 mm, and an overall height of 125 mm, as well as mounting via a top plate measuring 100 x 85 mm, these casters are versatile. The weight per caster is 500 g.

Details

Load capacity Load capacity: 100 kg
Load capacity (static) Load capacity (static): 175 kg
Wheel Ø Wheel Ø: 100 mm
Total height Total height: 125 mm
Bolt hole Bolt hole: 9 mm
Bolt hole spacing Bolt hole spacing: 80 x 60 mm
Mounting typ Mounting typ: top plate
Plate dimensions Plate dimensions: 100 x 85 mm
Wheel bearing Wheel bearing: plain bearing
Wheel width Wheel width: 32 mm
Wheel/castor type Wheel/castor type: fixed castor
Color Color: black
Conductivity Conductivity: conductive
Load capacity when moving Load capacity when moving: 70 kg
Bracket Bracket: steel sheet
Shore hardness Shore hardness: 85 Shore A
Tread Tread: rubber, thermoplastic
ESD ESD: yes
Temperature resistance Temperature resistance: -20 - 60 °C
Weight Weight: 500 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 381

Complete Catalog 2023 - 2024

Product Family

ESD Fixed castors with top plate

Housing series B

Sheet steel, electrogalvanized, blue passivated, Cr6-free

Wheel series TPA

Tread: high-quality thermoplastic rubber elastomer (TPE), hardness 85 Shore A, color grey, non-marking, oil-containing
Wheel body: high-quality polypropylene, unbreakable, color black

Other properties
