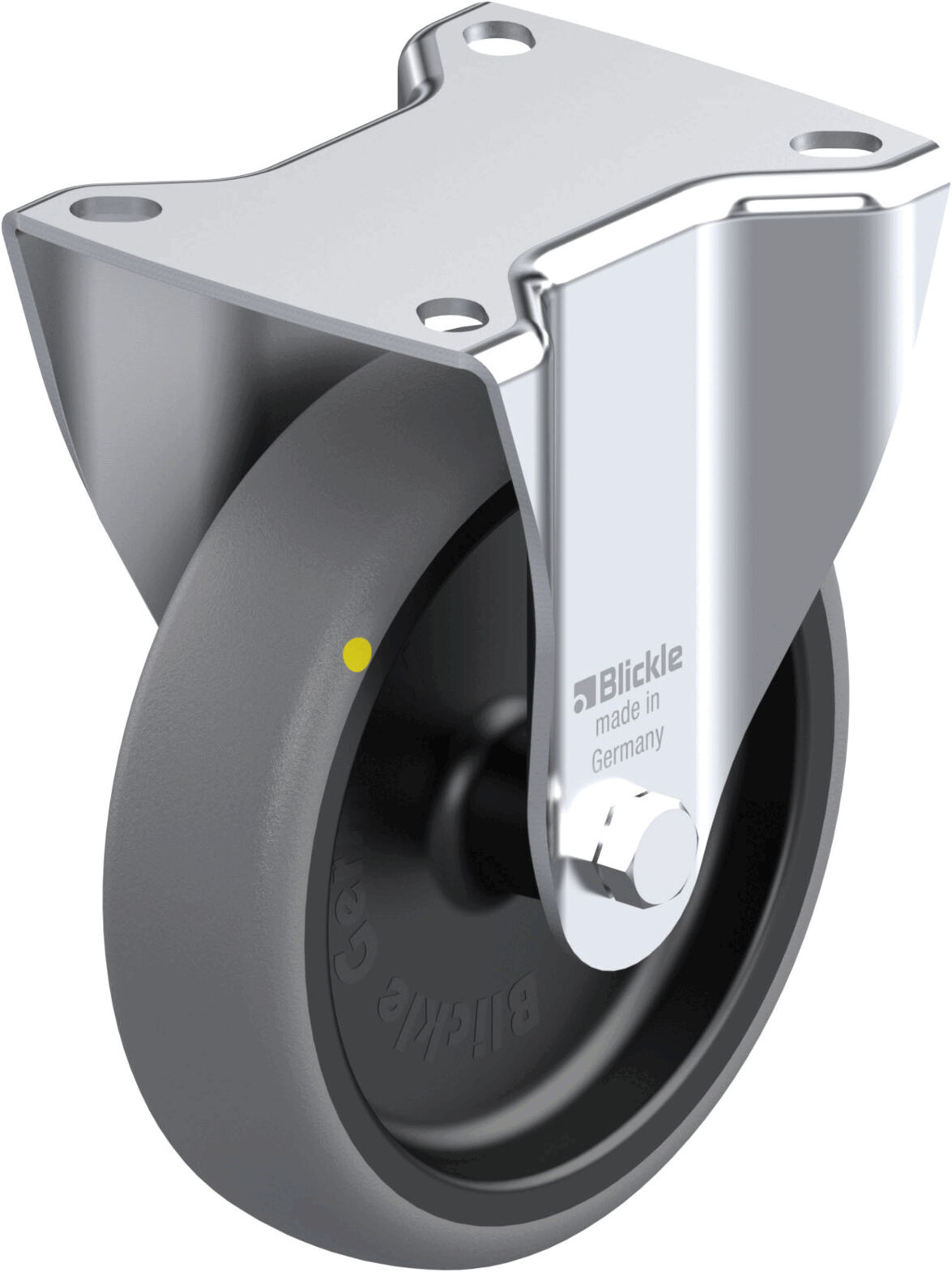

ESD Fixed castor with top plate 600, load capacity 200 kg
The ESD swivel casters with mounting plate 600 from Blickle are designed for a static load capacity of up to 200 kg and comply with the ESD standard DIN EN 61340-5-1, making them ideal for use in ESD-sensitive areas. The housing of the B series is made of galvanically zinc-plated, blue passivated sheet steel, which is Cr6-free, ensuring high durability and corrosion resistance.
The casters feature a wheel body made of impact-resistant polypropylene in black and a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A in gray. This combination not only provides a non-marking and oil-containing surface but also a very high chemical resistance against many aggressive agents.
The swivel casters have a wheel diameter of 125 mm, a total height of 150 mm, and a wheel width of 32 mm. They are mounted via a mounting plate measuring 100 x 85 mm. Additionally, the casters are temperature-resistant from -20 °C to +60 °C, with the load capacity reduced to 80 kg at temperatures above +30 °C.
Thanks to the plain bearing and conductive properties, these casters are particularly suitable for technical use in dynamic and demanding environments.
The casters feature a wheel body made of impact-resistant polypropylene in black and a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A in gray. This combination not only provides a non-marking and oil-containing surface but also a very high chemical resistance against many aggressive agents.
The swivel casters have a wheel diameter of 125 mm, a total height of 150 mm, and a wheel width of 32 mm. They are mounted via a mounting plate measuring 100 x 85 mm. Additionally, the casters are temperature-resistant from -20 °C to +60 °C, with the load capacity reduced to 80 kg at temperatures above +30 °C.
Thanks to the plain bearing and conductive properties, these casters are particularly suitable for technical use in dynamic and demanding environments.
Details
- Load capacity (static) Load capacity (static)
- 200 kg
- Wheel Ø Wheel Ø
- 125 mm
- Total height Total height
- 150 mm
- Bolt hole Bolt hole
- 9 mm
- Bolt hole spacing Bolt hole spacing
- 80 x 60 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 100 x 85 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- fixed castor
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 80 kg
- Bracket Bracket
- steel sheet
- Shore hardness Shore hardness
- 85 Shore A
- Tread Tread
- rubber, thermoplastic
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 600
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
