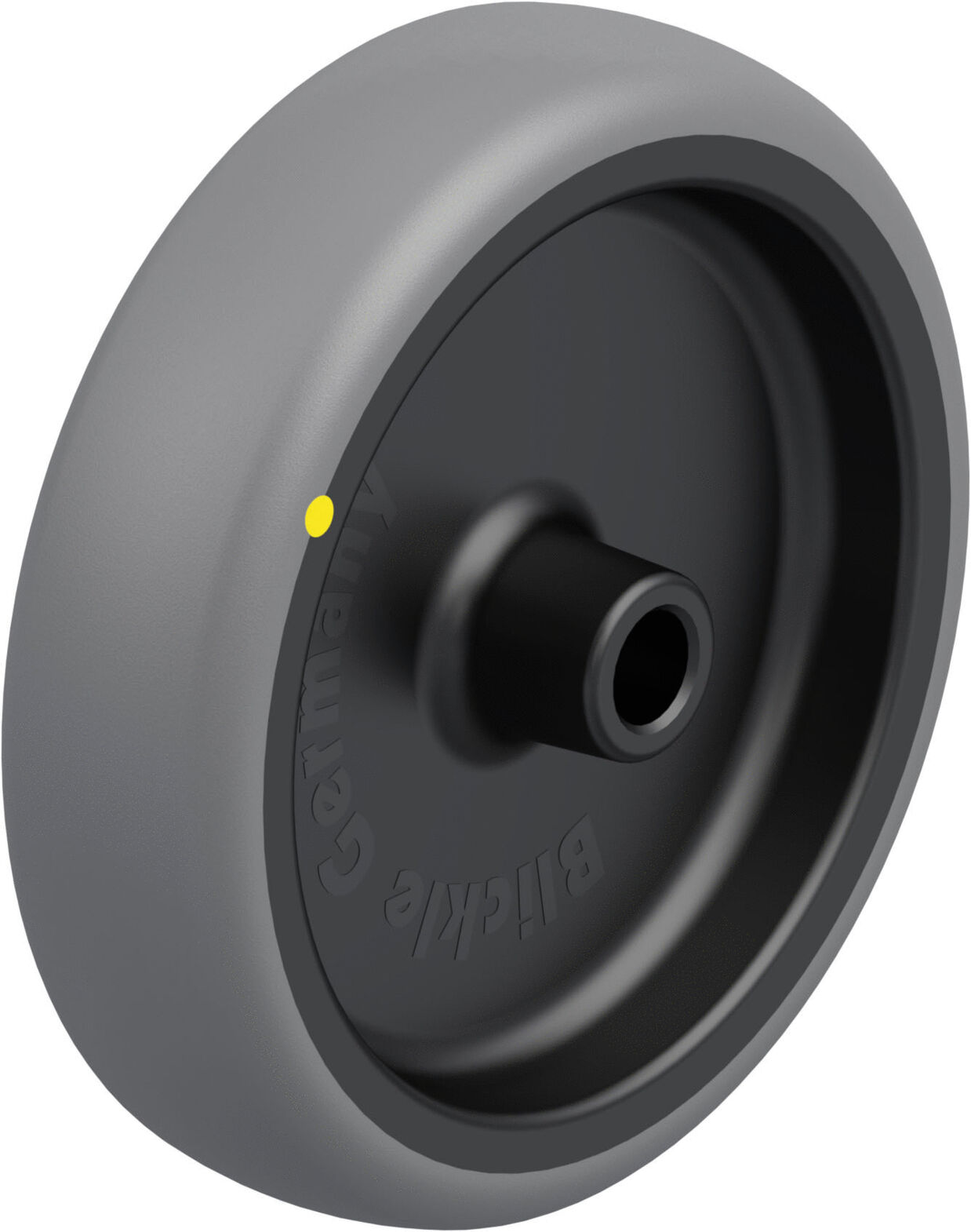

ESD Wheel with thermoplastic rubber tread 600, load capacity 200 kg
ESD Wheel with Thermoplastic Rubber Tread 600, Load Capacity 200 kg
The ESD wheel with thermoplastic rubber tread from the 600 series combines a high load capacity of 200 kg with excellent mobility and safety for sensitive environments. The tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A minimizes rolling and swiveling resistance, is non-marking, and is firmly connected to the wheel body. The wheel body itself is made of shatterproof black polypropylene.
Technical Specifications: - Wheel Ø: 125 mm - Wheel width: 32 mm - Axle hole: 12 mm - Hub length: 45 mm - Weight: 200 g - Wheel/Roller type: Wheel - Wheel bearing: Plain bearing - Conductivity: Conductive - ESD compliant according to DIN EN 61340-5-1 - Temperature resistance: -20 °C to +60 °C (reduced load capacity above +30 °C) - Load capacity (static): 200 kg, in motion: 80 kg
This wheel is characterized by its high chemical resistance and suitability for use in ESD-sensitive areas. Ideal for use in electronics manufacturing and other industrial sectors where electrostatic discharge must be avoided.
Item number: 622.125.ELS
The ESD wheel with thermoplastic rubber tread from the 600 series combines a high load capacity of 200 kg with excellent mobility and safety for sensitive environments. The tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A minimizes rolling and swiveling resistance, is non-marking, and is firmly connected to the wheel body. The wheel body itself is made of shatterproof black polypropylene.
Technical Specifications: - Wheel Ø: 125 mm - Wheel width: 32 mm - Axle hole: 12 mm - Hub length: 45 mm - Weight: 200 g - Wheel/Roller type: Wheel - Wheel bearing: Plain bearing - Conductivity: Conductive - ESD compliant according to DIN EN 61340-5-1 - Temperature resistance: -20 °C to +60 °C (reduced load capacity above +30 °C) - Load capacity (static): 200 kg, in motion: 80 kg
This wheel is characterized by its high chemical resistance and suitability for use in ESD-sensitive areas. Ideal for use in electronics manufacturing and other industrial sectors where electrostatic discharge must be avoided.
Item number: 622.125.ELS
Details
- Wheel Ø Wheel Ø
- 125 mm
- Wheel width Wheel width
- 32 mm
- axle hole axle hole
- 12 mm
- Hub length Hub length
- 45 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel/castor type Wheel/castor type
- wheel
- Conductivity Conductivity
- conductive
- Load capacity (static) Load capacity (static)
- 200 kg
- Load capacity when moving Load capacity when moving
- 80 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 200
