Axial components

Axial components are electronic components in which the connection pins or wires are arranged parallel to the longitudinal axis of the component. This means that the connections are on both sides of the component and are arranged in a line. Examples of axial components are resistors, capacitors and diodes.

We have suitable cutting machines for processing axially arranged components.

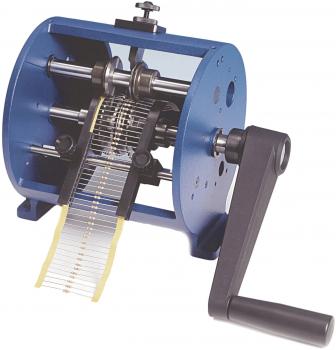

The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/1 • TP 6/1.97 standard
Cutting and bending machine TP 6/1 - standard
Version: standard / Tape pitch pattern P : 6.5 - 60 mm / Lead diameter d: 0.4 - 1.3 mm / Body diameter D: 0.4 - 16 mm
Cutting and bending machine TP 6/1.97 - standard
Version: simplified bending wheel adjustment / Tape pitch pattern P : 6.5 - 60 mm / Lead diameter d: 0.4 - 1.3 mm / Body diameter D: 0.4 - 16 mm

2 Products
Product No.: 415.100
from 2,023.55 CHF
excl. 8.1% tax
to the product family

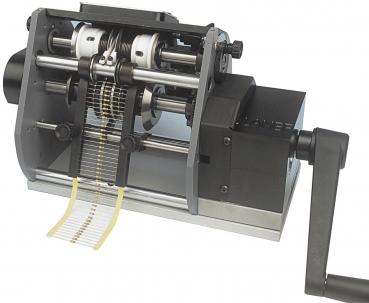

The image shows a mechanical machine with a sturdy frame and a long metal band that is pulled through a mechanism. A handle on the side is used to operate the machine.
CUTBEND
Cutting and bending machine CUTBEND type A (VB 08) standard
Cutting and bending machine CUTBEND type A (VB 05)
Cutting and bending machine CUTBEND type A (VB 10)
Cutting and bending machine CUTBEND type A (VB 12)
Cutting machine CUTBEND type B (FG 08) standard
Cutting and bending machine CUTBEND type C (BG 08) standard

6 Products
Product No.: 405.101
from 594.60 CHF
excl. 8.1% tax
to the product family
The image shows a manual resistance winding machine. It has a blue body, two rollers, and a handle. Resistors are arranged in a row and are wound automatically.
TP 6-EC cutting and bending machines
TP 6/1.EC Cutting/bending machine - standard
TP 6/6.EC Cutting/bending machine - reduced pitch
TP 6/7.EC Cutting/bending machine - fixed pitch P = 5.08 mm
TP 6/4.EC Cutting/bending machine - reinforced bending wheels

4 Products
Product No.: 415.100.EC
1,270.10 CHF
excl. 8.1% tax
to the product family
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M Adjustable motor drive
M adjustable motor drive
M/1 adjustable motor drive

2 Products
Product No.: 415.825
from 2,216.35 CHF
excl. 8.1% tax
to the product family
The image shows a mechanical device with a hand crank. Two rollers grasp a long, narrow strip that slides through the device. The colors are predominantly blue and black.
Cutting and bending machine TP 6/V1.EC - standard standing assembly
TP 6/V1.EC - cutting and bending machine
for axial components, standing mounting
Wire thickness
0.5 - 0.8 mm, P = 2.54 mm, A = 2.0 mm
(Model 81.OL01 art. no....)

Product No.: 415.400.EC
1,346.95 CHF
excl. 8.1% tax
to the product family
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS Waste tape ejector
TNS/1 waste tape ejector
TNS/13 waste tape ejector

2 Products
Product No.: 415.835.1
477.30 CHF
excl. 8.1% tax
to the product family
The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S

Product No.: 415.200240
442.25 CHF
excl. 8.1% tax
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder

Product No.: 415.800
164.30 CHF
excl. 8.1% tax
Show product

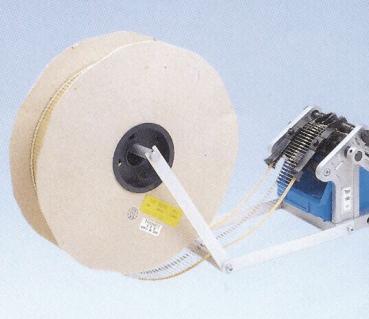

The image shows a large, round roll made of light material, with a mechanism attached to it that includes a motor. A belt connects the roll to the mechanism.
Preview: Image
Preview: The image shows a large, round roll made of light material, with a mechanism attached to it that includes a motor. A belt connects the roll to the mechanism.
Conversion kits / wheel sets, accessories
Wheel set - type A (VB 08) standard for CUTBEND
Wheel set - type A (VB 05) for CUTBEND
Wheel set - type A (VB 10) for CUTBEND
Wheel set - type A (VB 12) for CUTBEND
Wheel set - type B (FG 08) for CUTBEND
Wheel set - type C (BG 08) for CUTBEND
Replacement blade for VB 05 / VB 08 for CUTBEND
Replacement blade for VB 10 / VB 12 for CUTBEND
Dispenser reel CB-109 for taped components for CUTBEND

9 Products
Product No.: 405.300
from 29.60 CHF
excl. 8.1% tax
to the product family
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/6 • TP 6/6.97 reduced pitch
Cutting and bending machine TP 6 / 6 - reduced pitch
Version: reduced grid dimensions / Tape pitch pattern P : 5.08 - 60 mm / Lead diameter d: 0.4 - 0.8 mm / Body diameter D: 0.4 - 10 mm
Cutting and bending machine TP 6 / 6.97 - reduced pitch
Version: reduced grid dimensions, simplified bending wheel adjustment / Tape pitch pattern P : 5.08 - 60 mm / Lead diameter d: 0.4 - 0.8 mm / Body diameter D: 0.4 - 10 mm

2 Products
Product No.: 415.101
from 2,081.50 CHF
excl. 8.1% tax
to the product family
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/7 fixed pitch
Cutting and bending machine TP 6 / 7 – fixed pitch P = 5.08 mm
additional bending wheel for cutting and bending machine TP 6/7
additional bending wheel for cutting and bending machine TP 6/7

3 Products
Product No.: 415.102.400713
from 184.90 CHF
excl. 8.1% tax
to the product family
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
TP 6/4 • TP 6/4.97 reinforced bending wheels
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels

2 Products
Product No.: 415.103
from 2,081.50 CHF
excl. 8.1% tax
to the product family
The image displays a technical drawing of a component with various dimensions. There is a cylindrical center with two ends that have different lengths (A to F).
Preview: The image shows a mechanical machine with a blue casing and a crank. Inside, there are several rotating rollers that work with striped belts to perform processing steps.
Preview: The image displays a technical drawing of a component with various dimensions. There is a cylindrical center with two ends that have different lengths (A to F).
Preview: The image displays a technical drawing of a component, likely a fuse. Various dimension lines (A, D, F, L, P, d) are marked, indicating the dimensions of the component.
Preview: The image displays a simple, green symbol of a landscape. It features stylized mountains and a sun circle. The background is bright and neutral.
TP 6 / V
Cutting and bending machine TP 6 / V1 - standard
Additional bending tool P = 3.8 mm for cutting and bending machine TP 6 / V
Additional bending tool P = 5.08 mm for cutting and bending machine TP 6 / V
Holder for additional bending tool for cutting and bending machine TP 6 / V

4 Products
Product No.: 415.430.V1
from 135.75 CHF
excl. 8.1% tax
to the product family
The image depicts a manual machine with a handle. It features two rollers and an area where paper strips are processed. The mechanism appears sturdy and functional.
TP 6 / V-PR
Cutting and bending machine TP 6 / V-PR (P = 2.54 mm) standing assembly
Tape pitch pattern P : 2.54 mm / Lead diameter d: 0.5 - 0.8 mm / Body diameter D: 0.5 - 4 mm
Cutting and bending machine TP 6 / V-PR (P = 5.08 mm)
Tape pitch pattern P : 5.08 mm / Lead diameter d: 0.5 - 0.8 mm / Body diameter D: 0.5 - 8 mm

2 Products
Product No.: 415.500
6,060.60 CHF
excl. 8.1% tax
to the product family
The image shows a mechanical machine with visible gears and rollers. A hand crank is located on the right side, and a long, thin strip of paper extends from the machine.
Cutting and bending machine TP6/PR-F/1 - basic machine
TP 6, PR-F, 1 cutting and bending machine
for axial components wire thickness 0.5 - 0.9 mm
Basic machine ++ without processing tools ++
(Model 43.OL01 art. no....)

Product No.: 415.191
5,923.25 CHF
excl. 8.1% tax
to the product family

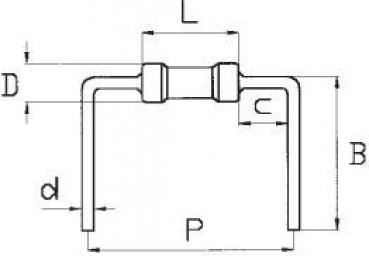

The image shows a technical drawing of a component with various labels for dimensions: L, D, B, P, d, and c. The shape is symmetrical with two outwardly curved ends.
Standard tool cut/bend for cutting and bending machine TP 6/PR-F
Standard tool cut / bend
wire thickness 0.5 - 0.9 mm
++ Tool code 420650 TP6/PR-F/1++

Product No.: 415.191.420650
1,517.05 CHF
excl. 8.1% tax
Show product
1 to 16 (from a total of 23)
