ESD PCB holders / magazines

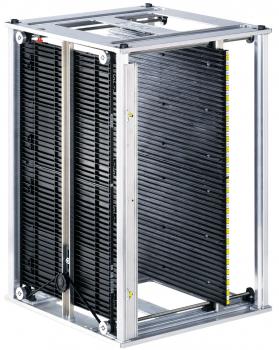

The image shows a rectangular, sturdy metal frame with several vertical, black slats. It has an open front and a textured back.
Quickfill magazine PS-4060
Width : 320 mm / Length : 355 mm / Height : 563 mm / PCB width: 50 - 250 mm / Width adjustment: with quick-clamping adjustment / Temperature resistance Insertion: 60 °C /
Quickfill magazine type PS-4060
Dimensions: 320 x 355 x 563 mm outside (WxDxH)
Width adjustment with quick-clamping adjustment
PCB width 50-250 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 60 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.4060
117.50 CHF
excl. 8.1% tax

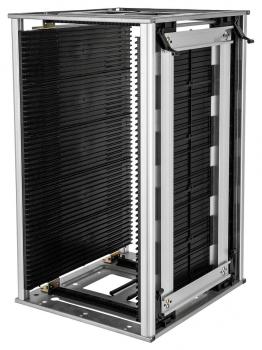

The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 716.2 PC, partially assembled
Width : 460 mm / Length : 535 mm / Height : 563 mm / PCB width: 10 - 390 mm / PCB length: 522 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
716.2PC PCB magazine partially assembled
with transport lock
Dimensions: 535 x 460 x 563 mm outside (LxWxH)
PCB width D = 10-390 mm, slot depth 3 mm
max. PCB length C = 522 mm
weight: 9.1 kg
+++ version 716.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916716
693.00 CHF
excl. 8.1% tax
The image shows a rectangular, gray container with vertical grooves. There are red elements at the corners. The surface texture is uniform and sturdy.
Partition 180, with holes for groove lock
Partition 180, electrically conductive
dpvlink
4288

Product No.: 8910060
32.75 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 701.1 PS, partially assembled
Width : 320 mm / Length : 355 mm / Height : 563 mm / PCB width: 40 - 250 mm / PCB length: 342 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C /
701.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 342 mm
+++ 701.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917701
396.90 CHF
excl. 8.1% tax
The image shows a rectangular container made of black and silver material. It has tall walls with lines and openings that provide a stable structure. The interior is empty.
Printorama Secondo 400 x 300 type 1
Printorama-Secondo 335 x 235 x 98 mm
pitch 5.08 mm all sides, standard
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4828

Product No.: 4310.100.992
58.95 CHF
excl. 8.1% tax
The image displays a square, framed device. It features black slats arranged vertically and is made of metal. It appears sturdy and industrial.
PCB magazine 802.1 PS
Width : 320 mm / Height : 563 mm / Length : 400 mm / PCB width: 40 - 250 mm / PCB length: 387 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C /
802.1 PS PCB magazine partially assembled, TS
dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 10-250 mm, groove depth 3 mm
maximum PCB length C = 387 mm
+++ 802.1 PS with automatic width adjustment and polystyrene side walls. Ambient temperature max. 50°C+++
dpvlink
22506

Product No.: 8919802
459.90 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 703.2 PC, partially assembled
Width : 380 mm / Length : 400 mm / Height : 563 mm / PCB width: 40 - 310 mm / PCB length: 387 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
703.2PC PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
weight: 6.4 kg
+++ version 703.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916703
522.90 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 704.2 PC, partially assembled
Width : 400 mm / Length : 460 mm / Height : 563 mm / PCB width: 10 - 330 mm / PCB length: 447 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
704.2PC PCB magazine partially assembled
with transport lock
Dimensions: 460 x 400 x 563 mm outside (LxWxH)
PCB width D = 10-330 mm, slot depth 3 mm
max. PCB length C = 447 mm
weight: 7.8 kg
+++ version 704.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916704
667.80 CHF
excl. 8.1% tax
The image displays a square, framed device. It features black slats arranged vertically and is made of metal. It appears sturdy and industrial.
PCB magazine 803.2 PC, partially assembled
Width : 380 mm / Length : 400 mm / Height : 563 mm / PCB width: 40 - 310 mm / PCB length: 387 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
803.2 PC PCB magazine partially assembled, TS
dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, groove depth 3 mm
maximum PCB length C = 387 mm
weight: 6.5 kg
+++ 803.2 PC with automatic width adjustment. High temperature-resistant inserts up to 130°C / ambient up to 80°C+++
dpvlink
22355

Product No.: 8916745
554.40 CHF
excl. 8.1% tax
The image shows a long, rectangular, black container. The surface is ribbed and has red reflectors at the ends. The container is sturdy and has an industrial aesthetic.
Partition 100
Partition 100, electrically conductive
dpvlink
4285

Product No.: 8910050
25.05 CHF
excl. 8.1% tax
The image shows an elongated, flat product made of black material with ribbed surfaces. It has fixtures at the ends that are presumably for mounting.
Slotted wall 625 reinforced
Version: with base stop type 25, strengthened / Length : 550 mm / Width : 180 mm / Height : 25 mm /
Slotted wall reinforced
625 - 555 X 180 x 25 mm, with base stop 625
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4789

Product No.: 5518.025.992
40.80 CHF
excl. 8.1% tax
The image displays a rectangular, black foam pad with many parallel grooves. On the left side, there is a small green circuit board protruding from the foam.
PCB holder made of PE foam
PCB holder made of PE foam
Dimensions: 355 x 255 x 25 mm, 2 corners sloped
slot width 3 mm, slot depth 12 mm
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
14625

Product No.: 4550.25.0255.LP
11.25 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 703.1 PS, partially assembled
Width : 380 mm / Length : 400 mm / Height : 563 mm / PCB width: 40 - 310 mm / PCB length: 387 mm / Temperature resistance Insertion: 60 °C / Temperature resistance Environment: 50 °C /
703.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
+++ 703.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917703
453.60 CHF
excl. 8.1% tax
The image shows two black, elongated objects with slight elevations. They have several narrow grooves and are tapered at the ends. They are lying parallel to each other.
Slotted wall 1-400 (pair)
Length : 355 mm / Width : 82 mm / Height : 13.5 mm / Version: with integrated base stop, unstrengthened /
Slotted wall pair 1-400, 355 x 82 x 13.5 mm
volume conductive (DIN EN 61340-5-1 + IEC)
dpvlink
4743

Product No.: 3510.000.992
37.05 CHF
excl. 8.1% tax
The image shows a rectangular, black plate with a grid pattern. On it is a green, thin piece with square fields, which is slightly tilted.
Plug-in board (knobbed)
ESD plug-in board (knobbed)
Dimensions: 352 x 252 x 15 mm, knobs 8 x 8 x 6 mm
max. PCB thickness 1.7 mm,
electrostatically volume conductive
dpvlink
3703

Product No.: 053210
14.75 CHF
excl. 8.1% tax
The image shows a rectangular device with a metallic frame and several black slats arranged in parallel. It has an open front and a sturdy construction.
PCB magazine 717.2 PC, partially assembled
Width : 530 mm / Length : 535 mm / Height : 563 mm / PCB width: 10 - 460 mm / PCB length: 522 mm / Temperature resistance Insertion: 130 °C / Temperature resistance Environment: 80 °C /
717.2PC PCB magazine partially assembled
with transport lock
Dimensions: 535 x 530 x 563 mm outside (LxWxH)
PCB width D = 10-460 mm, slot depth 3 mm
max. PCB length C = 522 mm
weight: 9.3 kg
+++ version 717.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916717
718.20 CHF
excl. 8.1% tax
1 to 16 (from a total of 176)
