ESD PCB magazines

ESD PCB magazines

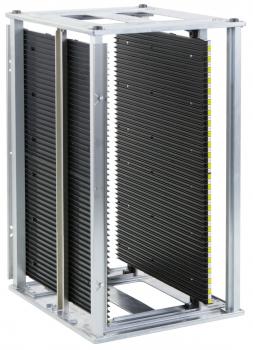

Quickfill magazine PS-4060
Quickfill magazine type PS-4060
Dimensions: 320 x 355 x 563 mm outside (WxDxH)
Width adjustment with quick-clamping adjustment
PCB width 50-250 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 60 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.4060
119.35 CHF

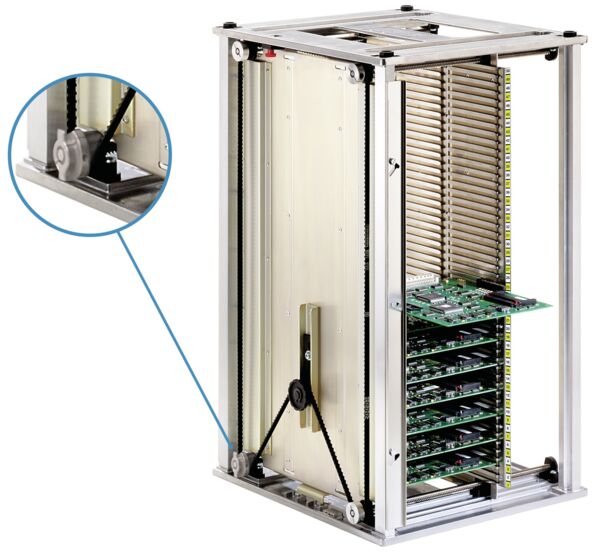

PCB magazine 602.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 387 mm / Type: partially assembled /
602.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 387 mm
+++ 602.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917602
300.80 CHF

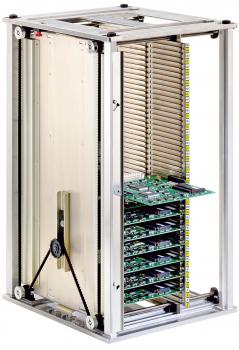

PCB magazine 716.2 PC, partially assembled
PCB width: 10 - 390 mm / PCB length: 522 mm / Type: partially assembled /
716.2PC PCB magazine partially assembled
with transport lock
Dimensions: 535 x 460 x 563 mm outside (LxWxH)
PCB width D = 10-390 mm, slot depth 3 mm
max. PCB length C = 522 mm
weight: 9.1 kg
+++ version 716.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916716
704.00 CHF

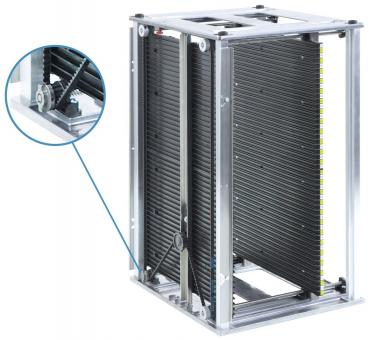

PCB magazine 704.2 PC, partially assembled
PCB width: 10 - 330 mm / PCB length: 447 mm / Type: partially assembled /
704.2PC PCB magazine partially assembled
with transport lock
Dimensions: 460 x 400 x 563 mm outside (LxWxH)
PCB width D = 10-330 mm, slot depth 3 mm
max. PCB length C = 447 mm
weight: 7.8 kg
+++ version 704.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916704
678.40 CHF

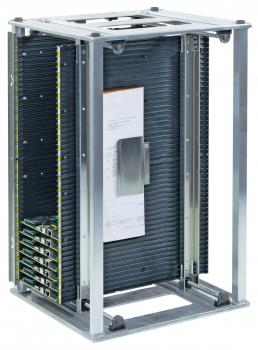

PCB magazine 601.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 342 mm / Type: partially assembled /
601.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
Continuous use temperature max. 50°C
+++ 601.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917601
281.60 CHF
PCB magazine 701.1 PS, partially assembled
PCB width: 40 - 250 mm / PCB length: 342 mm / Type: partially assembled /
701.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 342 mm
+++ 701.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917701
403.20 CHF
PCB magazine 802.1 PS
PCB width: 40 - 250 mm / PCB length: 387 mm /
802.1 PS PCB magazine partially assembled, TS
dimensions: 400 x 320 x 563 mm outside (LxWxH)
PCB width D = 10-250 mm, groove depth 3 mm
maximum PCB length C = 387 mm
+++ 802.1 PS with automatic width adjustment and polystyrene side walls. Ambient temperature max. 50°C+++
dpvlink
22506

Product No.: 8919802
467.20 CHF
PCB magazine 703.2 PC, partially assembled
PCB width: 40 - 310 mm / PCB length: 387 mm / Type: partially assembled /
703.2PC PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
weight: 6.4 kg
+++ version 703.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916703
531.20 CHF
Quickfill magazine ABS-3020
Quickfill magazine type ABS-3020
width adjustment with quick-clamping adjustment
Dimensions: 460 x 535 x 570 mm outer (WxDxH)
PCB width 50-390 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 110 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.3020
316.25 CHF
PCB magazine 717.2 PC, partially assembled
PCB width: 10 - 460 mm / PCB length: 522 mm / Type: partially assembled /
717.2PC PCB magazine partially assembled
with transport lock
Dimensions: 535 x 530 x 563 mm outside (LxWxH)
PCB width D = 10-460 mm, slot depth 3 mm
max. PCB length C = 522 mm
weight: 9.3 kg
+++ version 717.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916717
729.60 CHF
PCB magazine 703.1 PS, partially assembled
PCB width: 40 - 310 mm / PCB length: 387 mm / Type: partially assembled /
703.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 40-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
+++ 703.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5912

Product No.: 8917703
460.80 CHF
PCB magazine 603.1 PS, partially assembled
PCB width: 40 - 310 mm / PCB length: 387 mm / Type: partially assembled /
603.1 PS PCB magazine partially assembled
with transport lock
Dimensions: 400 x 380 x 563 mm outside (LxWxH)
PCB width D = 10-310 mm, slot depth 3 mm
max. PCB length C = 387 mm
+++ 603.1 PS = polystyrene sidewalls ambient temperature ma. 50°C +++
dpvlink
5908

Product No.: 8917603
320.00 CHF
PCB magazine 817.3 M, fully assembled
PCB width: 10 - 460 mm / PCB length: 522 mm /
817.3 M PCB magazine fully assembled, TS
with metal side panels
dimensions.: 535 x 530 x 563 mm outside (LxWxH)
inserts up to 200°C / ambient up to 100°C
PCB width D = 10-460 mm, groove depth 3 mm
maximum PCB length C = 522 mm
weight: 11.1kg
+++ 817.3 M with automatic width adjustment+++
dpvlink
22357

Product No.: 8915817
1,062.40 CHF
PCB magazine 701.2 PC, partially assembled
PCB width: 40 - 250 mm / PCB length: 342 mm / Type: partially assembled /
701.2PC PCB magazine partially assembled
with transport lock
Dimensions: 355 x 320 x 563 mm outside (LxWxH)
PCB width D = 40-250 mm, slot depth 3 mm
max. PCB length C = 342 mm
weight: 5.5 kg
+++ version 701.2 PC resistant to high temperatures slots up to 130 °C / environment up to 80°C +++
dpvlink
5912

Product No.: 8916701
480.00 CHF
Quickfill magazine PS-7060
Quickfill magazine type PS-7060
Dimensions: 460 x 535 x 570 mm outside (WxDxH)
Width adjustment with quick clamping adjustment
PCB width 50-390 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 60 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.7060
254.10 CHF
Quickfill magazine PS-6060
Quickfill magazine type PS-6060
Dimensions: 400 x 460 x 563 mm outside (WxDxH)
Width adjustment with quick clamping adjustment
PCB width 100-310 mm
slot width 5 mm, slot depth 3.5 mm, slot pitch 10 mm
temperature resistance up to 60 °C
electrostatically dissipative (DIN EN 61340-5-1)
dpvlink
15102

Product No.: 152.6060
151.80 CHF
