Ionized Air Gun

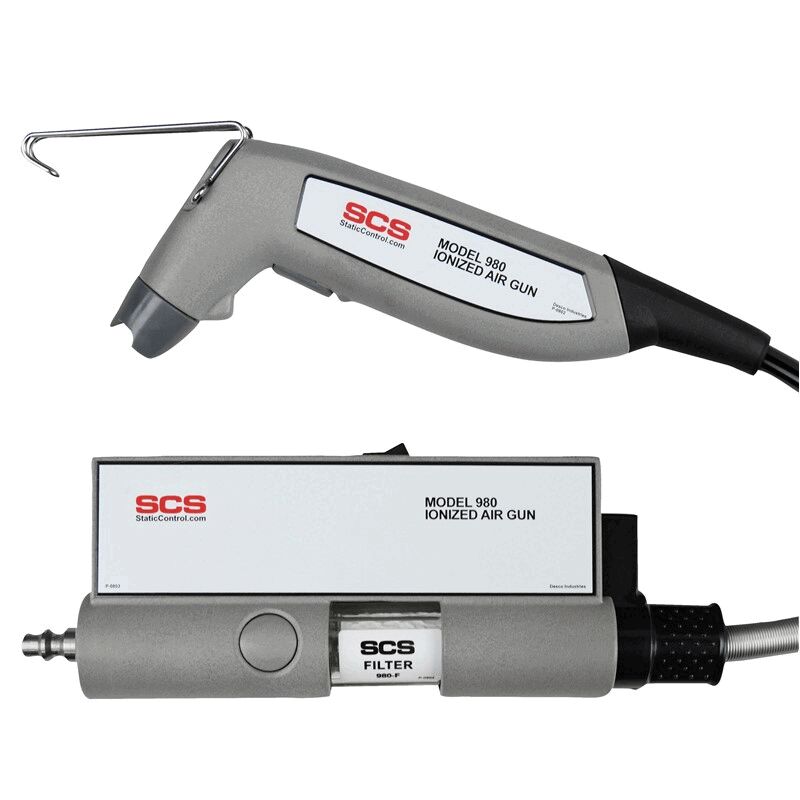

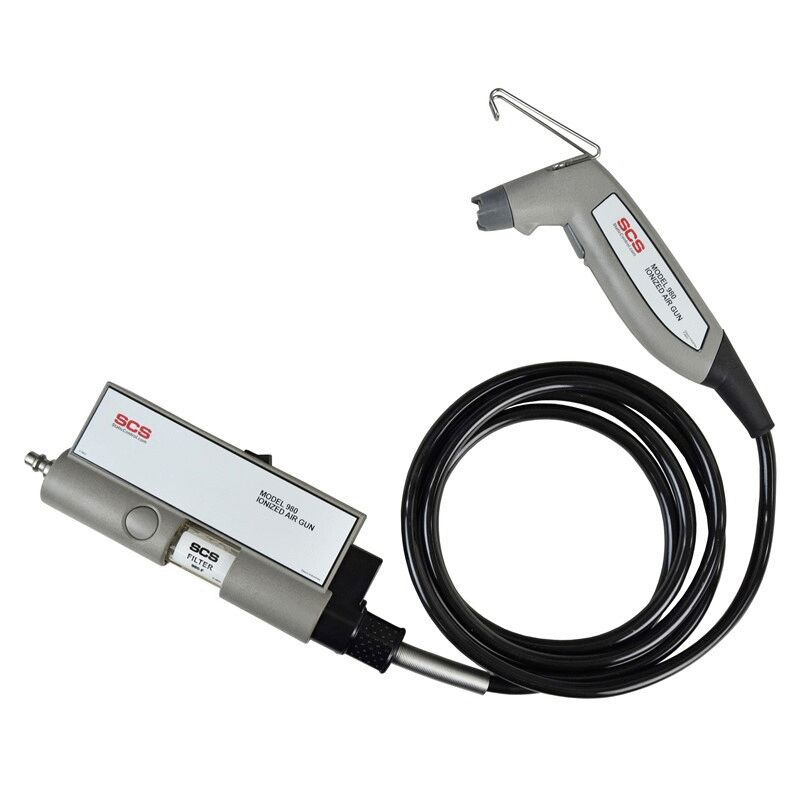

The Ionized Air Gun 3M Model 980 E is a high-performance ionizing gun designed for precise and efficient electrostatic discharge. This device is ideally suited for use in areas where control of static electricity is essential. The gun features a continuous ion emission function and achieves a rapid discharge time of less than 0.5 seconds at a distance of 150 mm and a pressure of 1 bar. The ion balance is at 0 +/- 30 V, allowing for precise control of static charging.
Technical Specifications:
- Power supply: 230 V, 50/60 Hz
- Input voltage: 24 V, < 10 W
- Ozone generation: < 0.005 ppm
- Operating noise: 73 dB at 1 m and 1 bar
- Conducted EMI: 29 dB (mV, 100 kHz to 1.1 MHz)
- Weight: 326 g
- Dimensions (W x H x D): 216 x 76 x 41 mm
- Cable length: 2.10 m
- Air connections: 0.64 cm industry standard
- Filter efficiency: 99.9% at 0.1 micron particle size
The robust housing made of dissipative polycarbonate and a tungsten alloy emitter ensure durability and reliability in use.
Item number: 3M-980E
The Ionized Air Gun 3M Model 980 E is a high-performance ionizing gun designed for precise and efficient electrostatic discharge. This device is ideally suited for use in areas where control of static electricity is essential. The gun features a continuous ion emission function and achieves a rapid discharge time of less than 0.5 seconds at a distance of 150 mm and a pressure of 1 bar. The ion balance is at 0 +/- 30 V, allowing for precise control of static charging.
Technical Specifications:
- Power supply: 230 V, 50/60 Hz
- Input voltage: 24 V, < 10 W
- Ozone generation: < 0.005 ppm
- Operating noise: 73 dB at 1 m and 1 bar
- Conducted EMI: 29 dB (mV, 100 kHz to 1.1 MHz)
- Weight: 326 g
- Dimensions (W x H x D): 216 x 76 x 41 mm
- Cable length: 2.10 m
- Air connections: 0.64 cm industry standard
- Filter efficiency: 99.9% at 0.1 micron particle size
The robust housing made of dissipative polycarbonate and a tungsten alloy emitter ensure durability and reliability in use.
Item number: 3M-980E
Details
- Cable length Cable length
- 2.10 m
- Discharge time Discharge time
- 0.5 s
- Ion balance +/- Ion balance +/-
- 30 V
- Ozone generation Ozone generation
- 0.005 ppm
- Voltage Voltage
- 230 V
- Depth [mm] Depth [mm]
- 41
- Height [mm] Height [mm]
- 76
- Width [mm] Width [mm]
- 216
- Weight [g] Weight [g]
- 326
