Loose lid for pallets ESD

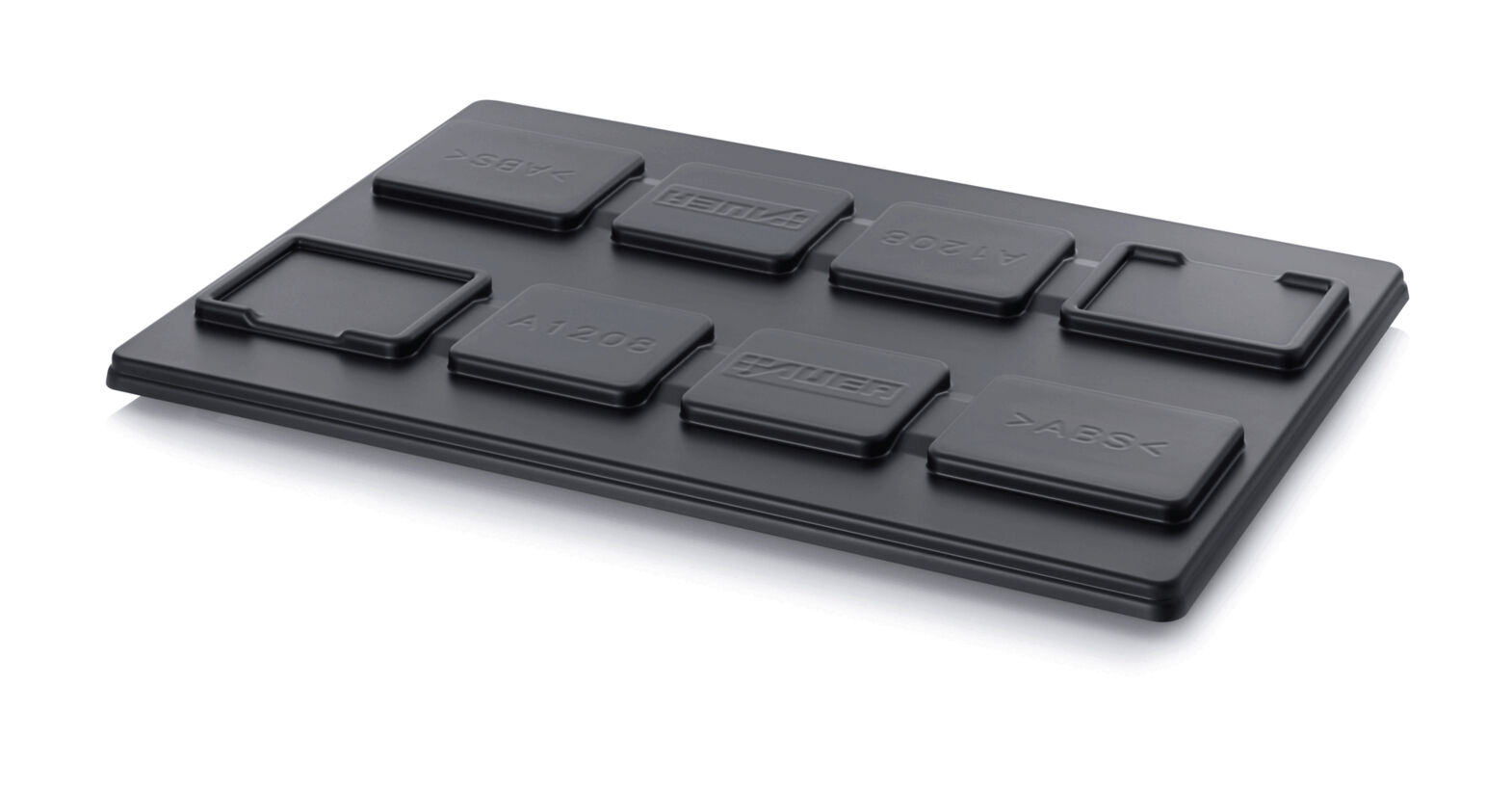

The ESD pallet cover is an effective solution to protect electronic components and other sensitive goods from electrostatic discharge. This cover, made from ESD-safe plastic, not only prevents static charges but is also suitable for use in areas at risk of explosions, where static discharges can have serious consequences. With dimensions of 1220 mm in length, 820 mm in width, and 40 mm in height, the cover fits perfectly on standard European pallets of size 120 x 80 cm.
The material polypropylene ensures high stability and allows for the stacking of additional layers on the cover. The cover is conductive with a volume resistance of 10^3 to 10^10 Ω and meets the ESD standard DIN EN 61340-5-1. Weighing 4.26 kg and in the color black, it offers a robust and reliable protection option for the transport and storage of sensitive goods.
The material polypropylene ensures high stability and allows for the stacking of additional layers on the cover. The cover is conductive with a volume resistance of 10^3 to 10^10 Ω and meets the ESD standard DIN EN 61340-5-1. Weighing 4.26 kg and in the color black, it offers a robust and reliable protection option for the transport and storage of sensitive goods.
Details
- Length [mm] Length [mm]
- 1220
- Width [mm] Width [mm]
- 820
- Height [mm] Height [mm]
- 40
- Color Color
- black
- Conductivity Conductivity
- conductive
- Volume resistance Volume resistance
- 103 - 1010 Ω
- Material Material
- polypropylene
- Weight Weight
- 4.26 kg
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
