The ESD storage and transport system by UTZ prevents a potential electrostatic discharge. Furthermore the robust plastic containers protect the content against mechanical damage, contamination or moisture.



ESD Storage and transport system for the protection against electrostatic discharge

Electronic components can be destroyed by electrostatic discharges. In order to protect those components against such damages, electronic mounting parts are often transported or stored in containers or on pallets made of electrically conductive plastic.


Read more...

Configurators:
Imprinting / Printing for boxes
Configurators:
Interlayers
Configurators:
Parting Inserts

RAKO Euro container ESD 600 x 400 x 220 mm
Dimensions outside: 600 x 400 x 220 / inside LxWxH [mm]: 559 x 359 x 216 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 220 mm /
559 x 359 x 216 mm electrically conductive
(DIN EN 61340-5-1)
dpvlink
797

Product No.: 051622
30.70 CHF
RAKO Euro container ESD 600 x 400 x 170 mm
Dimensions outside: 600 x 400 x 170 / inside LxWxH [mm]: 558 x 358 x 165 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 170 mm /
/ 558 x 358 x 165 mm electrically conductive
With shell handles on the front side
Color: black (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051617
30.25 CHF
RAKO Euro container ESD 400 x 300 x 120 mm
Dimensions outside: 400 x 300 x 120 / inside LxWxH [mm]: 358 x 258 x 114 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 400x300x120 mm /
358x258x114 mm,
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051412
14.65 CHF
RAKO Euro container ESD 600 x 400 x 325 mm
Dimensions outside: 600 x 400 x 325 / inside LxWxH [mm]: 558 x 358 x 320 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 325 mm /
558 x 358 x 320 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051632
44.10 CHF
RAKO Euro container ESD 400 x 300 x 65 mm
Dimensions outside: 400 x 300 x 65 / inside LxWxH [mm]: 358 x 258 x 62 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 400x300x65 mm /
358x258x62 mm,
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051406
13.50 CHF
RAKO Euro container ESD 600 x 400 x 120 mm
Dimensions outside: 600 x 400 x 120 / inside LxWxH [mm]: 553 x 353 x 114 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 120 mm /
553 x 353 x 114 mm electrically conductive
(DIN EN 61340-5-1)
dpvlink
797

Product No.: 051612
22.90 CHF

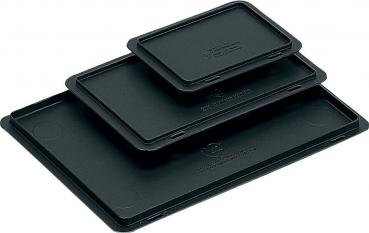

Loose lid ESD 600 x 400 mm
Length [mm]: 600 / Width [mm]: 400 / Conductivity: volume conductive /
Loose lid RAKO 600 x 400 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

Product No.: 051764
12.30 CHF
RAKO ESD snap lock
Snap lock for RAKO containers
dpvlink
828

Product No.: 051870
0.55 CHF
Hinged lid ESD 400 x 300 mm
Length [mm]: 400 / Width [mm]: 300 / Conductivity: volume conductive /
Hinged lid RAKO 400 x 300 mm, unmounted
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

Product No.: 051843
7.60 CHF
RAKO Euro container ESD 300 x 200 x 120 mm
Dimensions outside: 300 x 200 x 120 / inside LxWxH [mm]: 258 x 160 x 115 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 300x200x120 mm /
258x160x115 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051312
8.60 CHF
RAKO Euro container ESD 400 x 300 x 170 mm
Dimensions outside: 400 x 300 x 170 / inside LxWxH [mm]: 358 x 258 x 165 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 400 x 300 x 170 mm /
358 x 258 x 165 mm
electrically conductive (DIN EN 61340-5-1)
with shell handles on the front side
color: black
dpvlink
797

Product No.: 051417
15.60 CHF
Loose lid ESD 400 x 300 mm
Length [mm]: 400 / Width [mm]: 300 / Conductivity: volume conductive /
Loose lid RAKO 400 x 300 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

Product No.: 051743
7.60 CHF
RAKO Euro container ESD 400 x 300 x 220 mm
Dimensions outside: 400 x 300 x 220 / inside LxWxH [mm]: 358 x 258 x 217 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 400 x 300 x 220 mm /
358 x 258 x 217 mm
electrically conductive (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051422
19.05 CHF
Hinged lid ESD 600 x 400 mm
Length [mm]: 600 / Width [mm]: 400 / Conductivity: volume conductive /
Hinged lid RAKO 600 x 400 mm, unmounted
electrically conductive (DIN EN 61340-5-1)
dpvlink
815

Product No.: 051864
12.30 CHF
RAKO Euro container ESD 600 x 400 x 280 mm
Dimensions outside: 600 x 400 x 280 / inside LxWxH [mm]: 556 x 356 x 275 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 280 mm /
556x356x275 mm
electrically conductive (DIN EN 61340-5-1)
with shell handles on the front side
dpvlink
797

Product No.: 051627
42.70 CHF
RAKO Euro container ESD 600 x 400 x 75 mm
Dimensions outside: 600 x 400 x 75 / inside LxWxH [mm]: 552 x 350 x 70 / Material: polypropylene / Stackable: yes / Conductivity: volume conductive /
Euro container RAKO 600 x 400 x 75 mm /
552 x 350 x 70 mm electrically conductive
With shell handles on the front side
Color: black (DIN EN 61340-5-1)
dpvlink
797

Product No.: 051607
21.25 CHF
1 to 16 (from a total of 55)
