SCC 1500 static shielding bag "metal-out" 305 x 406 mm

(Product No.: 3M-150.1216)

(Product No.: 3M-150.1216)

SCC 1500 static shielding bag "metal-out" 305 x 406 mm

ArticleNo: 3M-150.1216

dpvlink:

11172

Width [mm]:

305 mm

Length [mm]:

406 mm

PU:

100 piece

Properties:

ESD-protective

Further product information

Minimum order:

100 PCE

End of life

End of Life

42.20 CHF
0.422 CHF per PCE

100 PCE

Product Info

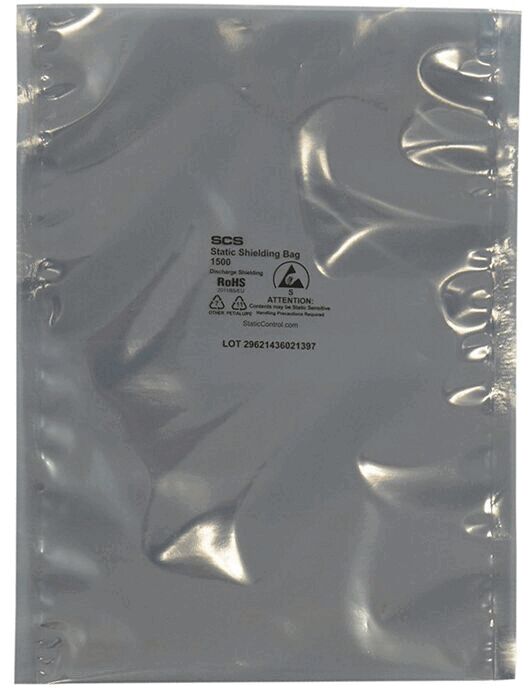

The 3M-SCS Type 1500 "metal-out" shielding bags, measuring 305 x 406 mm, are highly functional, multi-layer packaging solutions specifically designed to protect sensitive electronic components. These bags are made from metallized, transparent material that includes an abrasion-resistant coating, aluminum vapor deposition, and layers of conductive polyester and polyethylene. This structure ensures effective electrostatic shielding under 10nJ and allows for controlled dissipation of existing charges without spontaneous discharges.
The surface resistances of the outer and inner layers range between 10^10 and 10^11 Ohms, meeting the standards of MIL-PRF-81705 Type III, EIA 541, EIA 625, MIL-HDBK-263, MIL-STD-1686, and EOS/ESD. These recyclable and sealable bags are printed with the ESD warning symbol, type designation, a recycling symbol, and a LOT number. They not only offer high protection against field induction and minimize triboelectric charging but are also ideal for assemblies with batteries and accumulators. The packaging unit includes 100 pieces, facilitating efficient storage and handling.

Details

Width [mm] Width [mm]: 305 mm
Length [mm] Length [mm]: 406 mm
PU PU: 100 piece
Surface resistance Rs Surface resistance Rs: 10⁴ - 10¹¹ Ω

ESD protective

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
