Assembly frames

Assembly frames are used in electronics production to enable the efficient and precise assembly of PCBs with electronic components. The placement frame consists of a frame and a suitable fixture that has been specially developed for the respective PCB configuration. The PCB is inserted into the frame and held in place by braking knurled nuts.

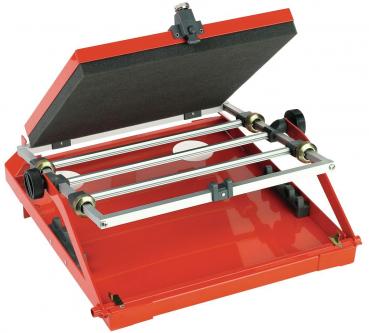

The image displays a red heat press. The upper part is foldable, featuring a black surface. On the underside, rollers and a conspicuous rail are visible.
PCSA assembly frames
PCSA 1 ESD assembly frame
PCSA 2 ESD assembly frame
PCSA 4 ESD assembly frame

3 Products
Product No.: 690.101.ESD
from 358.00 CHF
excl. 8.1% tax
to the product family

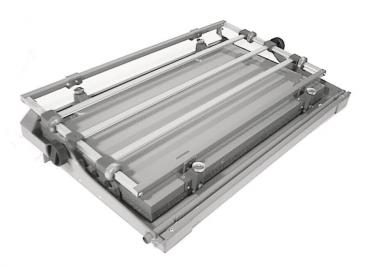

The image shows a flat, rectangular table with metallic elements and narrow grooves. It is foldable, making it portable and space-saving.
PCSA assembly frames accessories
Additional rail for PCSA 1, complete
Additional rail for PCSA 2, complete
Additional rail for PCSA 4, complete

3 Products
Product No.: 690.201
from 26.80 CHF
excl. 8.1% tax
to the product family
