PCB separators

PCB separators are are essential devices in modern electronics production that are used for the precise and safe separation of PCBs. In series production, electronic assemblies are often manufactured in panels in order to optimize the manufacturing process and increase efficiency. The PCBs are only separated once all assembly and soldering processes have been completed in order to minimize mechanical stress and damage to sensitive components.

In ESD-protected areas (EPA zones) in particular, PCB separators play a crucial role. Here they must meet the highest standards of electrostatic safety in order to protect sensitive electronic components from damage caused by uncontrolled electrostatic discharges. Specially developed PCB separators for use in EPA zones have conductive or dissipative materials and grounded components to ensure safe processing.

Whether manual or motorized systems - modern depaneling systems offer tailor-made solutions for various requirements and make a significant contribution to high process reliability and consistent product quality in electronics production.

The image shows a metal machine with a large, straight cutting device and a table underneath. It is silver and has several controls on the front.
PCB separator MAESTRO 3E / 450 manual
Version: manual / Cutting length: 450 mm / PCB thickness: 0.8 - 3.2 mm
PCB separator MAESTRO 3E / 450, manual
Cutting length max. 450 mm +blade titanium-coated+
with a supporting table (simple type)
serial no.. .............................

Product No.: 8933945
3,578.40 CHF
excl. 8.1% tax
to the product family

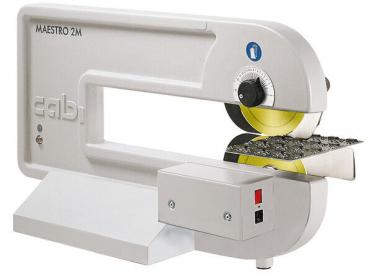

The image shows a machine labeling device in a modern, sleek design. It is predominantly white with a yellow trim circle and a control panel with switches.
MAESTRO 2 manual / MAESTRO 2 M with motor
PCB separator MAESTRO 2, manual
Version: manual / Cutting length: 15 - 300 mm / Weight: 16 kg
PCB separator MAESTRO 2 M, with motor
Version: motorized / Separation speed: 100, 200, 300 mm/s / Cutting length: 15 - 300 mm / Weight: 19 kg

2 Products
Product No.: 8933935
from 2,406.60 CHF
excl. 8.1% tax
to the product family

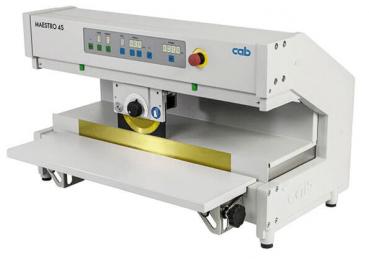

The image shows a white electric foil wrapping machine. It features a top panel with controls and a lower shelf where the object to be wrapped is placed.
MAESTRO 4S
PCB separator MAESTRO 4S / 450 for FR4 PCBs
Cutting length: 450 mm / PCB thickness: 0.8 - 3.2 mm / Width : 702 mm / Height : 434 mm / Depth : 425 mm
PCB separator MAESTRO 4S / 450 for aluminum PCBs
Cutting length: 450 mm / PCB thickness: 0.8 - 1.5 mm / Width : 702 mm / Height : 434 mm / Depth : 425 mm
PCB separator MAESTRO 4S / 600 for FR4 PCBs
Cutting length: 600 mm / PCB thickness: 0.8 - 3.2 mm / Width : 852 mm / Height : 434 mm / Depth : 425 mm
PCB separator MAESTRO 4S / 600 for aluminum PCBs
Cutting length: 600 mm / PCB thickness: 0.8 - 1.5 mm / Width : 852 mm / Height : 434 mm / Depth : 425 mm

4 Products
Product No.: 8936800-ALU
from 7,518.40 CHF
excl. 8.1% tax
to the product family

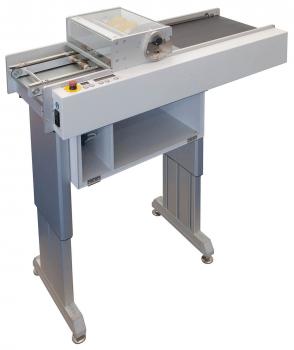

The image shows an industrial machine with a long conveyor belt. There is a transparent cover on top, with mechanics underneath. The machine stands on sturdy legs and has side controls.
MAESTRO 5L
PCB width: max. 310 mm / Cutting length: 100 - 570 mm / Width : 440 mm / Depth : 1100 mm / Height : 750 mm
PCB separator MAESTRO 5 L standard model
incl. construction, clean version, cleaning brush
and 2nd interface SMEMA (approximately 14 pin),
lower guide, blade cover,
Initial operation and training
>> without blade shaft pair<<

Product No.: 8934520
28,350.00 CHF
excl. 8.1% tax
to the product family
The image displays a sturdy, yellow and black vacuum cleaner with a large container on wheels. A flexible hose is attached to the side and has a smooth surface.
Industrial vacuum cleaner, complete
Industrial vacuum cleaner Kärcher 230V /
50-60 Hz, 1400 watt
incl. 1 HEPA filter and
10 paper filter bags BIA U, S, G, C

Product No.: 8935500
667.80 CHF
excl. 8.1% tax
Show product

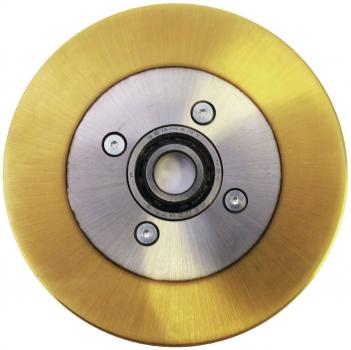

The image shows a round wheel with a metal core and a golden rim. In the center, there is a bearing with screws. The surface is smooth and shiny. The wheel appears solid and stable.
Upper circular blade type 03 / in-line DPV
Circular blade on top, titanium / nitrite
coating, HSS-TI type 03 / in-line DPV
complete with bearing

titanium/nitrite coating ++new++

Product No.: 8930501.03-DPV
246.95 CHF
excl. 8.1% tax
Show product

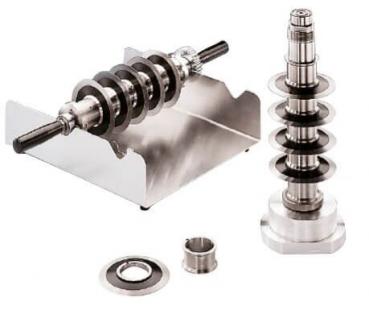

The image shows two crankshafts of a machine. One is on the left, with several rings on a mount. The other is on the right on a base, is taller, and has a wavy shape.
Preview: The image shows a round, golden disc with several concentric lines and a central opening. Next to the disc lies a black, curved part.
Preview: The image displays a brake-like disc in yellow with a central hole and a black, curved component next to it. The disc has a smooth surface.
Preview: The image shows a curved, black metal piece with two round holes. The shape resembles a small sickle or a bow. It is flat and has sharp edges.
Preview: The image shows a black, curved piece of metal that has a sharp edge. It has two round openings, possibly for mounting screws. The shape is like part of a tool.
Preview: The image displays a long, rectangular metallic plate in yellow. It features three evenly spaced holes and has a smooth surface with a slight shine.
Preview: The image shows a yellow, elongated metal piece with several round holes in a row. It has a smooth surface and is slightly beveled at one end.
Preview: The image shows a black, curved tool that is right-angled on one side. It has several openings, two round ones and a larger one, and looks like a drafting triangle.
Preview: The image shows a black, curved metal part with a long, straight edge and two round holes. It looks like a special measuring or cutting device.
Preview: The image shows a round metal plate with a black inner circle and silver edges. In the center, there is a large hole and next to it a small hole. The surface is smooth.
Preview: The image shows a machine with a round, yellow cutter and a measuring device. On the side, there is a black button and a safety symbol for hands.
Preview: The image shows a conveyor belt. It has a long, flat transport surface made of black material and is equipped with a metal frame on one side. On one side, there are control and connection options.
Preview: The image shows a round, golden disc with a central black circle that contains a movable part. In the center, there is a small hole.
Preview: The image displays an elongated, yellowish metal part with several round holes at regular intervals. It has a smooth surface and a simple, straight shape.
Preview: The image shows a round object with a shiny, metallic silver inner rim and a large, black area in the center. The outer rim is bright yellow.
Preview: The image shows two crankshafts of a machine. One is on the left, with several rings on a mount. The other is on the right on a base, is taller, and has a wavy shape.
Spare parts Maestro complete
Upper circular blade "Ti" for FR4 PCBs
suitable PCB separator MAESTRO: 2, 2M, 3E, 4S
Upper circular blade "Ti" for aluminium PCBs
suitable PCB separator MAESTRO: 4S
Lower circular blade "Ti"
suitable PCB separator MAESTRO: 2, 2M
Protection upper blade
suitable PCB separator MAESTRO: 2, 2M
Protection lower blade
suitable PCB separator MAESTRO: 2, 2M
Linear blade 450 "TI"
suitable PCB separator MAESTRO: 3E, 4S, 6
Linear blade 450 clean "TI"
suitable PCB separator MAESTRO: 4M 450 clean
Protection 1 / to serial no. 1999
suitable PCB separator MAESTRO: 3E, 4M
Protection 1 / from serial no. 2000
suitable PCB separator MAESTRO: 3E, 4M, 4S
Protection 2 / to serial no. 1999
suitable PCB separator MAESTRO: 3E, 4M
Protection 2 / from serial no. 2000
suitable PCB separator MAESTRO: 3E, 4M, 4S
Circular blade upper 4M / 70 "TI"
suitable PCB separator MAESTRO: 4M 70
Measuring device
suitable PCB separator MAESTRO: 3E, 4M, 4S
Conveyor belt for MAESTRO 4S/450
suitable PCB separator MAESTRO: 4S
Circular blade 60 FR4
suitable PCB separator MAESTRO: 6
Circular blade 60 ALU
suitable PCB separator MAESTRO: 6
Linear blade 600
suitable PCB separator MAESTRO: 3E, 4S, 6
Circular blade / replacement blade "Ti" 8mm MAESTRO 5L / W
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 2 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 4 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 6 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 8 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 10 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 12 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 14 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 16 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 18 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L
Blade shaft pair with 20 blades "Ti" for MAESTRO 5L
suitable PCB separator MAESTRO: 5L

28 Products
Product No.: 893XXX.MW10
from 16.40 CHF
excl. 8.1% tax
to the product family
1 to 7 (from a total of 7)
