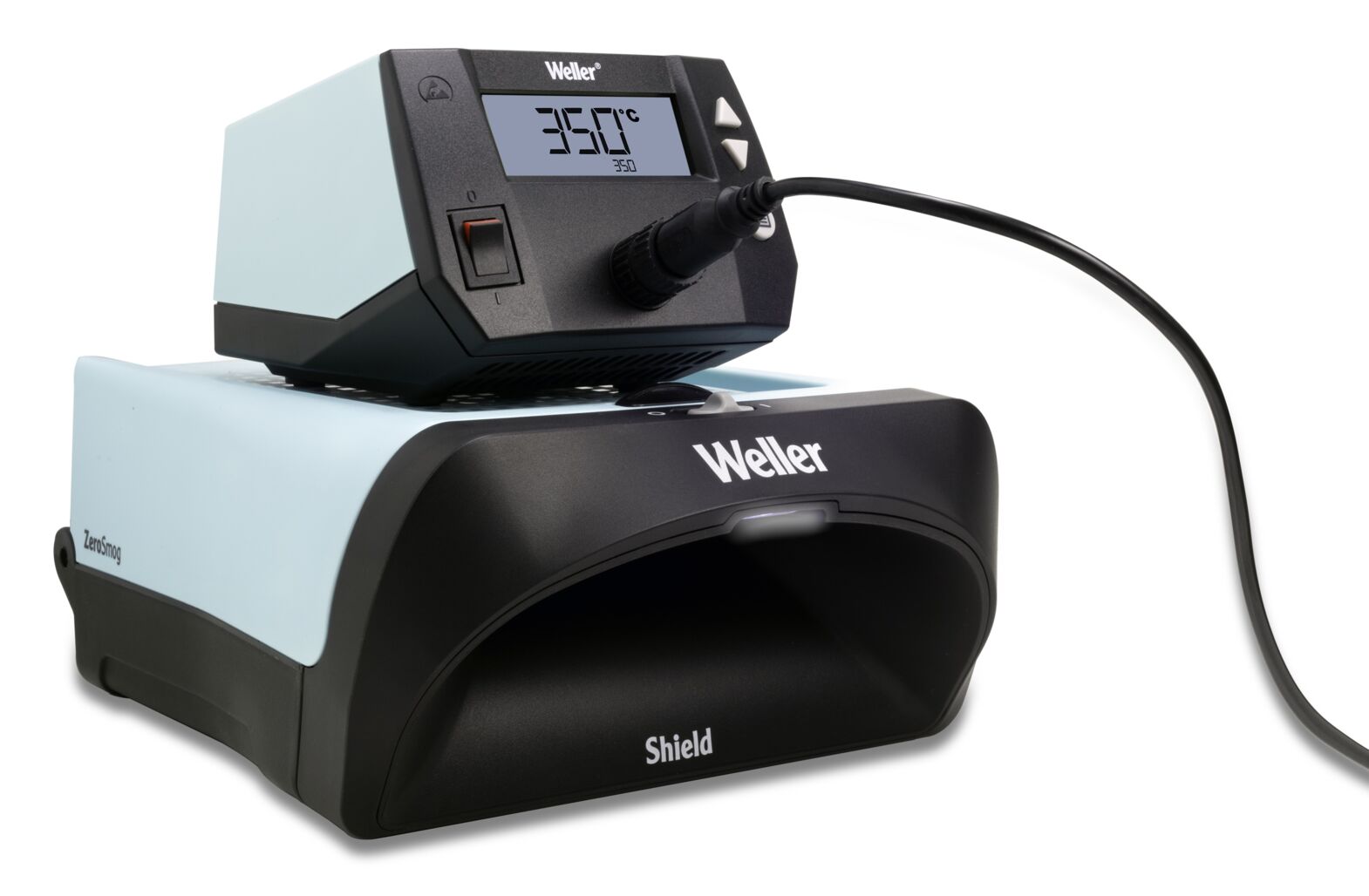

The image shows a soldering device in blue and black. It has a digital display showing a temperature of 350°C. A cable connects the device to a power source.
WE1010 Shield Kit
(Product No.: 532.983.91)
The image shows a soldering device in blue and black. It has a digital display showing a temperature of 350°C. A cable connects the device to a power source.
Notice

WE1010 Shield Kit

WE1010 Shield Kit

dpvlink:
28707
Power:
95 W
Noise level:
50 dB
Temperature range:
100 - 450 °C
Further product information

356.90 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

WE1010 Shield Kit

WE1010 Shield Kit
The WE1010 Shield Kit from Weller combines the proven WE1010 soldering station with the efficient ZeroSmog Shield fume extraction. This set is excellent for beginners as well as experienced professionals and offers an optimal solution for health-conscious and precise soldering. The kit includes a 70W soldering station with an ergonomically designed soldering iron and a fume extractor that effectively filters harmful vapors and particles. The operator benefits from a clean working environment thanks to the advanced filter system and an illuminated work area that marks the optimal extraction area. The compact and stackable design saves valuable space on the workbench.

Technical Specifications:

•  Soldering station: 230V, 70W, temperature range 100°C - 450°C, ±6°C temperature stability, antistatic aluminum and plastic housing

•  Fume extractor: Dimensions 269.5 x 212 x 110 mm, Weight 2 kg, Noise level 50 dB, Voltage 100-240V, Maximum air flow rate 26 m³/h, Power 10W

The set is ESD-safe and allows for quick and tool-free tip changes on the soldering iron, making it particularly maintenance-friendly.



Scope of Delivery:
Soldering Station WE 1010 230V 532.986.91
Soldering Iron 70 W
Fume Extractor Zerosmog Shield



Power
Power
95 W
Noise level
Noise level
50 dB
Temperature range
Temperature range
100 - 450 °C
Output voltage DC
Output voltage DC
24 V/DC
Voltage
Voltage
230 V
Bracket
Bracket
plastic
ESD
ESD
yes
Temperature accuracy +/-
Temperature accuracy +/-
5 °C
Temperature stability +/-
Temperature stability +/-
6 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

WE1010 Shield Kit

Soldering and extraction - strong together.Simply solder and breathe deeply

For smooth and healthy soldering, Weller has combined its best-selling WE1010 soldering station with the ZeroSmog Shield mobile fume extraction system. This easy-to-use soldering set not only guarantees precision in your soldering projects. Your health is not neglected either. The sophisticated filter system efficiently removes harmful fumes and particles, protecting the operator's respiratory tract. With its temperature controls and ergonomic design, this soldering station is suitable for both beginners and experienced professionals. Solder your project - and take a deep breath.

1-channel soldering station, digital 70 W, 230 V, with Zerosmog Shield fume extractor and 70 W soldering iron

  • 70 W soldering iron with ergonomic design and tool-free tip change
  • Digital LCD screen and simple menu navigation
  • Maintenance-friendly filter unit with easily replaceable filter
  • Illuminated work area
  • Stackable with WE1010 and easy to move
  • Cost-efficient soldering set
  • Efficient filtering of particles and gases
  • Antistatic housing

Article image
Article description
Power
Noise level
Temperature range
Price
Compare
532.983.91 - WE1010 Shield Kit
532.983.91
WE1010 Shield Kit
95 W
50 dB
100 - 450 °C
356.90 CHF
Show Compare List (0)
