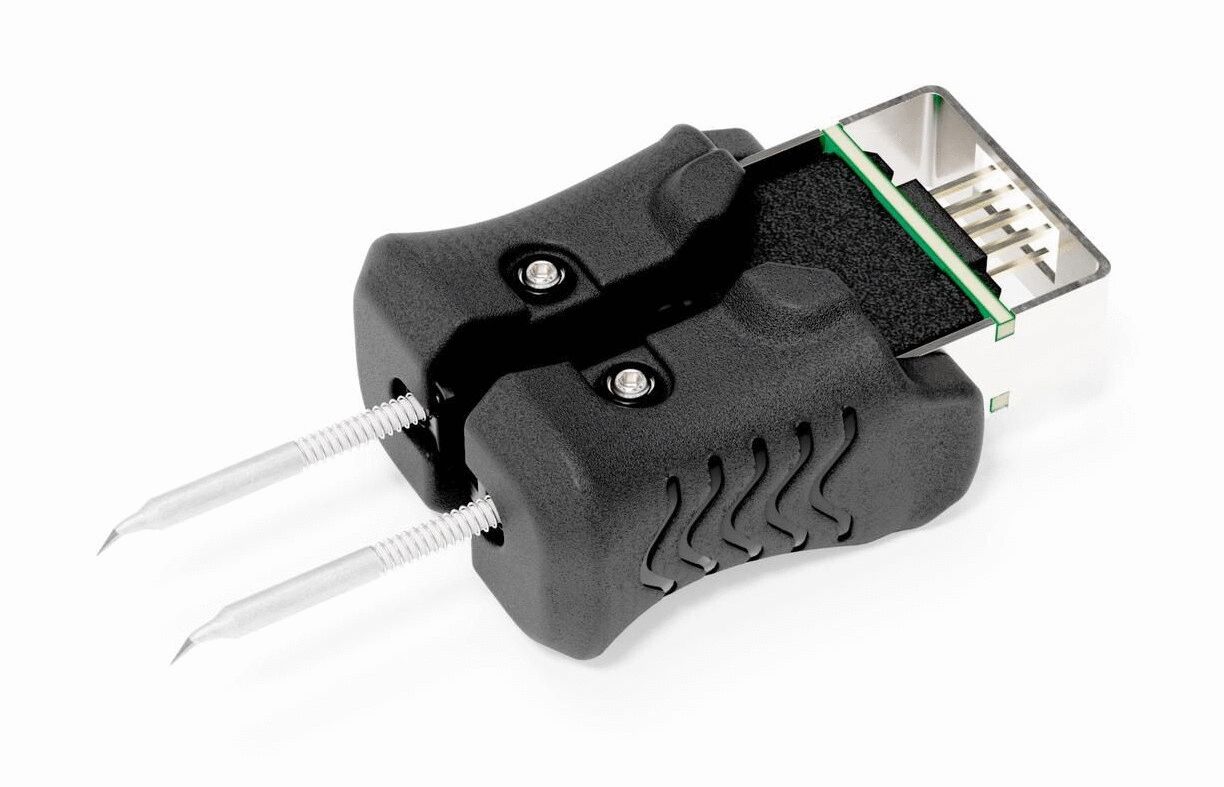

Soldering tip pair chisel-shaped bent RTWPS 002 S X
(Product No.: 501.156.99)
Notice

Soldering tip pair chisel-shaped bent RTWPS 002 S X

dpvlink:
27471
Further product information

80.66 CHF

1 PCE
Compare Compare
Notice
Product Info
The soldering tip pair RTWPS 002 S X from Weller is specifically designed for use with the desoldering tweezers WTMT and WXMTS. These high-quality chisel-shaped tips are bent and offer a tip width of only 0.2 mm, enabling precise work. The tips have a thickness of 0.1 mm and a length of 16.2 mm, making them ideal for fine soldering tasks.
The tips are ESD-safe and support a fast heating time of only 5 seconds, ensuring efficient heat transfer. They are designed for a voltage of 12 V and provide a power of 40 W each. The temperature range in which these tips can operate is between 100 and 450 °C, allowing flexible adjustment to various soldering conditions. The RTWPS series, to which these tips belong, stands for reliability and precision in the technical field.
Power
Power
40 / 40 W
Voltage
Voltage
12 V
Length [mm]
Length [mm]
16.2 mm
Thickness/diameter
Thickness/diameter
0.1 mm
Tip width
Tip width
0.2 mm
ESD
ESD
yes
Soldering tip series
Soldering tip series
RTWPS
Soldering tip shape
Soldering tip shape
chisel-shaped , bent
suitable soldering iron
suitable soldering iron
WTMT / WXMTS
Heating-up time
Heating-up time
5 s
Temperature range
Temperature range
100 - 450 °C
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Article image
Article description
Power
Voltage
Length [mm]
Thickness/diameter
Tip width
ESD
Soldering tip series
Price
Compare
501.157.99 - Soldering tip pair chisel-shaped bent RTWPS 002 S X HM
501.157.99
Soldering tip pair chisel-shaped bent RTWPS 002 S X HM
40 / 40 W
12 V
16.5 mm
0.1 mm
0.2 mm
yes
RTWPS
80.66 CHF
501.156.99 - Soldering tip pair chisel-shaped bent RTWPS 002 S X
501.156.99
Soldering tip pair chisel-shaped bent RTWPS 002 S X
40 / 40 W
12 V
16.2 mm
0.1 mm
0.2 mm
yes
RTWPS
80.66 CHF
