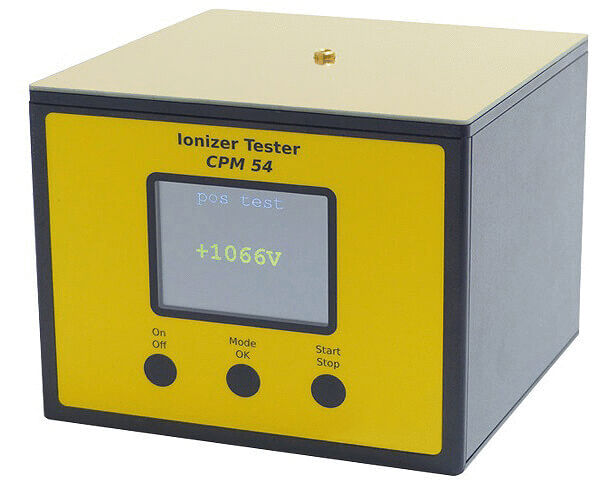

The image shows a square, black ionizer tester with a yellow top. In the center, there is a screen, and below are buttons for "On/Off", "Mode", "Start", and "Stop".
Ionizer Tester CPM54
(Product No.: 7100.CPM54)
The image shows a square, black ionizer tester with a yellow top. In the center, there is a screen, and below are buttons for "On/Off", "Mode", "Start", and "Stop".
Notice / Inquire

Ionizer Tester CPM54

dpvlink:
29240
Further product information

3,931.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ionizer Tester CPM54

The Ionizer Tester CPM54 is a highly precise measuring device specifically designed for the standard-compliant testing of ionizing devices. It enables the measurement of discharge time from a preselected voltage threshold to a lower value as well as the determination of offset voltage. Additionally, the device performs a Body Voltage Test to measure personal charging.

Standard-compliant Measurement: Measuring device for precise determination of discharge time and offset voltage of ionizing devices.

Personal Charging Test: Enables the measurement of personal charging (Body Voltage Test).

Automated Testing: Supports fully automatic measurement of positive and negative discharges as well as offset voltage.

Discharge Time Determination: Measures the time it takes for a preset voltage to drop to a lower value (standard: ±1000 V to ±100 V, other values adjustable).

Plate Electrode Measurement: Voltage potential measurement on an integrated plate electrode (150 x 150 mm) with contact plate measurement according to DIN EN 61340-4-7.

Personal Charging According to Standard: Measures the Body Voltage up to 2,000 V according to DIN EN 61340-4-5.

Color Display: Clear display of measurement results.

Power Supply: Lithium-ion batteries for mobile operation.

Analog Output: ±5 V via BNC connector.

Mounting Option: ¼-tripod thread for flexible mounting.

Height
Height
125 mm
Length
Length
173 mm
Width
Width
150 mm
Bracket
Bracket
plastic
Ambient temperature
Ambient temperature
10 - 40 °C
Humidity
Humidity
60 %
Weight
Weight
1.0 kg
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

Ionizer Tester CPM54

Article image
Article description
Height
Length
Width
Bracket
Ambient temperature
Humidity
Weight
Price
Compare
7100.CPM54 - Ionizer Tester CPM54
7100.CPM54
Ionizer Tester CPM54
125 mm
173 mm
150 mm
plastic
10 - 40 °C
60 %
1.0 kg
3,931.20 CHF
