EPApro® Personnel Tester

The advantages at a glance:

  • Simultaneous measurement of shoes and wriststraps with short test time < 2 seconds
  • Comfortable guest function e.g. for changing visitors
  • Measurement of single shoe or in series as well as hands-free mode
  • Adjustable measuring voltage with individual voltage reduction for sensitive persons
  • Configurable thresholds
  • Person identification with integrated Multi RFID reader
- Compliant with all usual standards, existent ID cards can still be used
- Access release / barrier controllable via configurable switch outputs
- Suitable for personnel access control systems
- Documentation of the measured values
- Intuitive user interface with clear display of the results´
- Privacy mode: display mode without showing personal data
- Password-protected access for administrators and managers
- Standard-compliant testing in compliance with DIN EN ISO 61340-5-1 and ANSI ESD S20.20
- Data logging in compliance with GDPR with automatic delete function
- Menu-driven calibration mode for simple calibration on site (returning the device for calibration is not necessary)
- Connectable via LAN or optionally WLAN adapter
- Languages German and English (GB)

The structure of the Personnel Tester

The structure of the Personnel Tester

The features of the Personnel Tester

Display and operation

Display and operation

Display and operation are done via a 7-inch HD color touch display. The access for managers and administrators to the menus and parameters is protected by password. When using the optional EPApro® Control Server software, it is possible to configure the networked EPApro® 1000 devices centrally with the software.

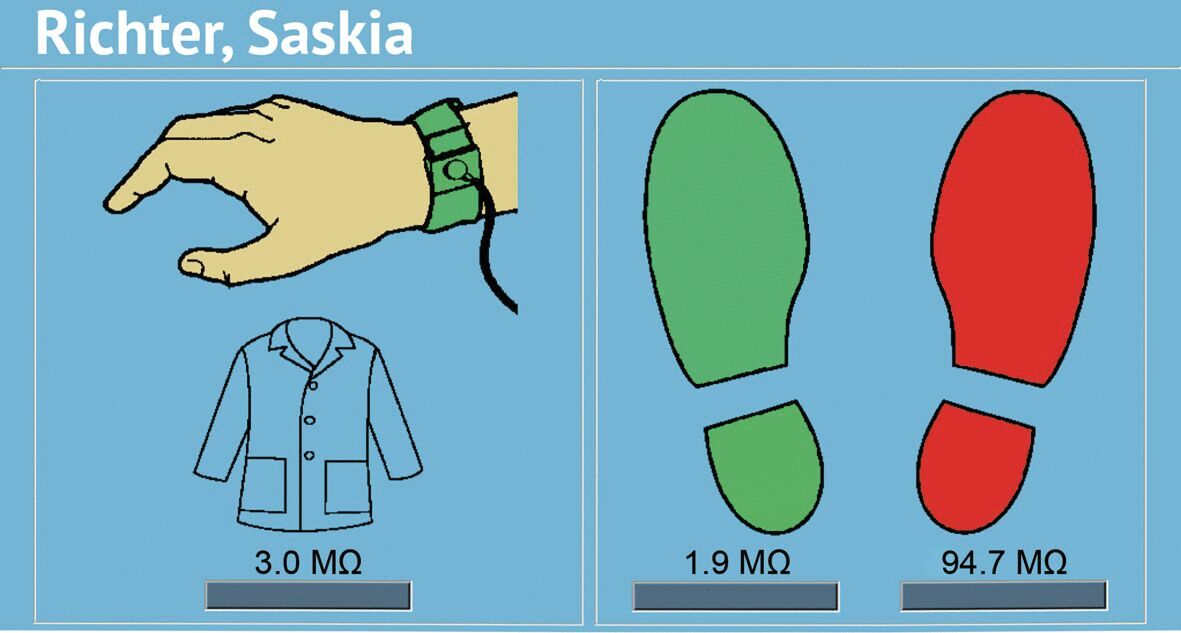

Measurements

Measurements

The measurements are made quickly and precisely within 2 seconds. This avoids delays or long waiting times at the entrance.

Shoes and wriststraps can be tested simultaneously. Configurable measuring voltage and thresholds enable optimal adaptation to your requirements. The reduction of the measuring voltage to 35 V for sensitive persons is adjustable for the respective employee. The measurement of the resistance comprises a test of the shoes, wriststraps or ESD coats (measurement of the ESD coats if they are used for primary personnel grounding, see standard).

There are several special functions like e.g. hands-free measurement (serial measurement of the shoes), variable measuring intervals, etc.

The measured data are stored in the database integrated in the device. After the measurement, the employee obtains immediately a feedback on the screen.

Multi RFID reader

Multi RFID reader

An integrated Multi RFID reader is compatible with the usual RFID standards and enables the identification of the person and the personal logging of the measurement.

Using existing RFID cards is possible. It is optionally also possible to use other readers via the USB port e.g. barcode reader, etc.

Temperature and humidity sensor

Temperature and humidity sensor

The integrated temperature and humidity sensor captures the ambient conditions at the time of measurement and logs these together with the measured values in the internal database.

Integrated calibration function

Integrated calibration function

The EPApro® 1000 has an integrated menu-driven calibration mode. It is possible to connect an optionally available calibration unit to the calibration input of the device

Thanks to this feature, it is not necessary to return the device for calibration. When using EPApro® Control Server software, the calibration data is additionally stored on the server.

Connection with the EPApro® Control Server

Connection with the EPApro® Control Server

The EPApro® 1000 device can be connected as a single device (Stand Alone) or via the company network with the optionally available EPApro® Control Server software, even across locations. The EPApro® Control Server offers the advantage of being able to manage the EPApro® 1000 devices centrally and to store all data in a central database.

Learn more about the EPApro® Control Server

Guest function
In case of visitor and guest cards, it is possible to enter the names directly on the device without any further administrative expense.

Control
The EPApro® 1000 has a powerful multicore and graphics processor to control the measurements and the touch user interface.

Technical data

Voltage / power 6 W (9 V/DC) (power supply unit 100-230V/AC)
Operating conditions + 10 to 40° C / up to 75% relative humidity
Test time < 2 seconds
Device: dimensions / weight 265 x 180 x 100 mm / 1 kg
Footwear electrode: dimensions / weight 500 x 350 x 8 mm / 2.6 kg
Test voltage Wählbar: 100V / 50V / 30V/DC (Toleranz ±5%)
Test Measuring range – upper thresholds Measuring range – lower thresholds
Wriststrap 1 MΩ - 200 MΩ none / 100 KΩ / 750 KΩ
Footwear worn against metal plate
(value per shoe)
 1 MΩ - 200 MΩ none / 100 KΩ / 750 KΩ
Footwear measurement in series
(hands-free)
 1 MΩ - 200 MΩ  none / 100 KΩ / 750 KΩ

Versions & accessories

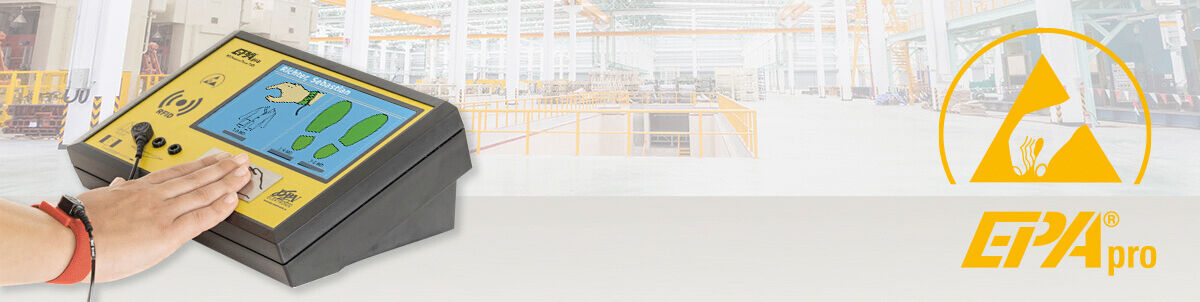

The image shows a control device with a screen displaying information. Below it is a hand pointing to the screen. A red bracelet is on the wrist.
TOP
TOP
EPApro Personnel tester 1000 - Wall mounted
with multicolored screen and integrated
multi RFID reader and footwear electrode

Connections:
1 x snap 10 mm / 2 x BA socket 4 mm

Scope of delivery: Personnel Tester 1000 incl. power supply unit and footwear electrode

standardized measurements:
IEC/DIN EN 61340-5-1 and ANSI ESD S20. 20

Price on request
The image shows a yellow-black touchscreen device with an RFID symbol and a palm pressing a button. There are two graphic representations of clothing and shoes.
TOP
TOP
EPApro Personnel tester 1000 - table model
with multicolored screen and integrated
multi RFID reader and footwear electrode
Seriel no°:
Scope of delivery: Personnel Tester 1000 incl. power supply unit and footwear electrode

standardized measurements:
ICE/DIN EN 61340-5-1 and ANSI ESD S20. 20

Price on request
The image shows five thin, rectangular cards lying next to each other. In the bottom left, there is an RFID (radio waves) symbol depicted, showing wavy lines.
ID-card high frequency (VPE = 5 pcs)

Price on request
The image shows a long, yellow, trapezoidal plastic block. Next to it are three small, silver screws. The block could be part of an assembly system.
Striking yellow divider for footwear electrode
(Installation centered on the footwear electrode)


++ prevents manipulation of the ESD shoe measurement by crossing

Scope of delivery:
- 1 divider
- 3 screws M4x16mm

Price on request
