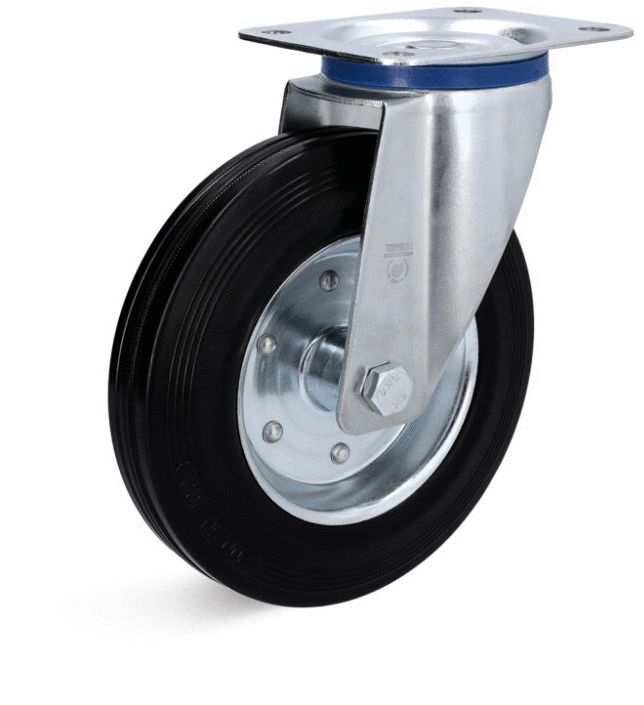

The image shows a sturdy wheel with a black rubber tire and a silver mount. It has a metallic, shiny surface and allows for easy movement on various surfaces.
ESD Swivel castor with top plate 500, load capacity 135 kg
(Product No.: 524.160.EL)
The image shows a sturdy wheel with a black rubber tire and a silver mount. It has a metallic, shiny surface and allows for easy movement on various surfaces.
Notice

ESD Swivel castor with top plate 500, load capacity 135 kg

ESD Swivel castor with top plate 500, load capacity 135 kg

dpvlink:
3278
Load capacity :
135 kg
Load capacity (static):
135 kg
Wheel Ø:
160 mm
Total height:
190 mm
Properties:
Further product information

chevron-down
27.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ESD Swivel castor with top plate 500, load capacity 135 kg

The ESD swivel casters with mounting plate 500 have a load capacity of 135 kg and are specifically designed for use in environments where electrical conductivity is required. These swivel casters feature odor-neutral solid rubber tires in black and a roller bearing embedded in a steel sheet wheel body. The tread has a Shore hardness of 85 Shore A, which allows for quiet operation and vibration damping.
The steel sheet housing is galvanized and offers high reliability and durability through a double ball bearing in the fork head and a seal with integrated ball spacer. The wheel has a diameter of 160 mm and a width of 40 mm, while the total height of the caster is 190 mm. Mounting is done via a mounting plate measuring 135 x 110 mm.
The ESD swivel casters are unbraked and have a total weight of 2254 g. They are ideal for applications where preventing electrostatic discharge is critical. The plate allows for easy installation with screw holes of 11 mm diameter and a screw hole distance of 105 x 80 mm.
Load capacity
Load capacity
135 kg
Load capacity (static)
Load capacity (static)
135 kg
Wheel Ø
Wheel Ø
160 mm
Total height
Total height
190 mm
axle hole
axle hole
12 mm
Bolt hole
Bolt hole
11 mm
Bolt hole spacing
Bolt hole spacing
105 x 80 mm
Mounting typ
Mounting typ
top plate
Plate dimensions
Plate dimensions
135 x 110 mm
Wheel bearing
Wheel bearing
Roller bearing
Wheel width
Wheel width
40 mm
Wheel/castor type
Wheel/castor type
swivel castor unbraked
Offset
Offset
55 mm
Conductivity
Conductivity
conductive
Bracket
Bracket
steel
Shore hardness
Shore hardness
85 Shore A
Tread
Tread
solid rubber
ESD
ESD
yes
Weight
Weight
2254 g
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 379
Complete Catalog 2023 - 2024

Product Family

ESD Swivel castors with top plate

Electrically conductive castor
Our solid rubber series is characterized by its quiet running and vibration-damping properties

  • SGS-EC wheel series - wheel body made of sheet steel with roller bearings - tread made of odorless solid rubber tyres, black - electrically conductive version.
  • ILC housing series - Standard sheet steel housing in galvanized design - Fork head equipped with double ball bearing - Sealing with integrated ball spacer
  • Contact discoloration of the base may occur due to plasticizer diffusion

Article image
Article description
Load capacity
Load capacity (static)
Wheel Ø
Total height
Price
Compare
524.080.EL - ESD Swivel castor with top plate 500, load capacity 50 kg
524.080.EL
ESD Swivel castor with top plate 500, load capacity 50 kg
50 kg
50 kg
80 mm
100 mm
9.45 CHF
524.100.EL - ESD Swivel castor with top plate 500, load capacity 70 kg
524.100.EL
ESD Swivel castor with top plate 500, load capacity 70 kg
70 kg
70 kg
100 mm
125 mm
11.90 CHF
524.125.EL - ESD Swivel castor with mounting plate 500, load capacity 100 kg
524.125.EL
ESD Swivel castor with mounting plate 500, load capacity 100 kg
100 kg
100 kg
125 mm
155 mm
19.50 CHF
524.160.EL - ESD Swivel castor with top plate 500, load capacity 135 kg
524.160.EL
ESD Swivel castor with top plate 500, load capacity 135 kg
135 kg
135 kg
160 mm
190 mm
27.00 CHF
524.200.EL - ESD Swivel castors with top plate 500, load capacity 205 kg
524.200.EL
ESD Swivel castors with top plate 500, load capacity 205 kg
205 kg
205 kg
200 mm
235 mm
41.35 CHF
