ESD Swivel castors with bolt hole - double stop (DS) 500, load capacity 70 kg

(Product No.: 523.100.DS.EL)

ESD Swivel castors with bolt hole - double stop (DS) 500, load capacity 70 kg

Name: ESD Swivel castors with bolt hole - double stop (DS) 500, load capacity 70 kg
SKU: 523.100.DS.EL
Price: 15.05 CHF
Availability: InStock

ArticleNo: 523.100.DS.EL

dpvlink:

3256

Tags:

Wheel Ø:

100 mm

Total height:

126 mm

Further product information

15.05 CHF

1 PCE

Compare

Notice

Product Info

ESD Swivel Casters with Back Hole - Double Stop (DS) 500, Load Capacity 70 kg

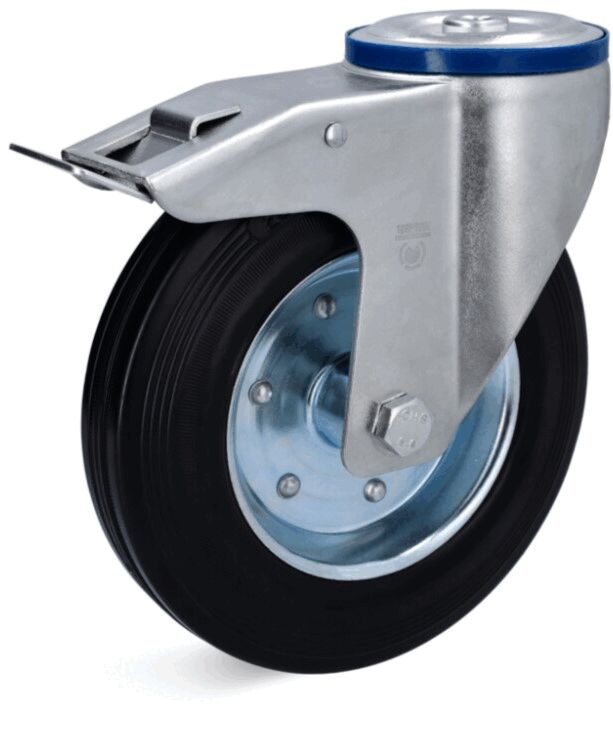

This ESD swivel caster with back hole and double stop from our Series 500 offers a load capacity of 70 kg and combines high functionality with advanced technology. The caster is specifically designed for use in ESD-sensitive areas and ensures safe dissipation of electrostatic charges through its electrically conductive design. The noise-reducing and vibration-damping solid rubber tread provides comfortable use on various floor types.
Technical Data:
- Wheel diameter: 100 mm
- Total height: 126 mm
- Projection: 38 mm
- ESD: yes
- Conductivity: conductive
- Weight: 886 g
- Housing: steel, galvanized
- Tread: solid rubber, odorless, black
- Shore hardness: 85 Shore A
- Axle hole: 8 mm
- Mounting type: back hole
- Wheel width: 27 mm
- Wheel bearing: roller bearing
- Back hole: 12 mm
- Temperature resistance: 70 °C
Please note that plasticizer migration can cause discoloration of the floor. Ideal for use in electronics manufacturing and other ESD-sensitive environments.
Item number: 523.100.DS.EL
