ESD Swivel castors with top plate - double stop 500, load capacity 50 kg

(Product No.: 524.080.DS.EL)

ESD Swivel castors with top plate - double stop 500, load capacity 50 kg

Name: ESD Swivel castors with top plate - double stop 500, load capacity 50 kg
SKU: 524.080.DS.EL
Price: 12.45 CHF
Availability: InStock

ArticleNo: 524.080.DS.EL

dpvlink:

3280

Load capacity (static):

50 kg

Wheel Ø:

80 mm

Total height:

100 mm

Properties:

Further product information

12.45 CHF

1 PCE

Compare

Notice

Product Info

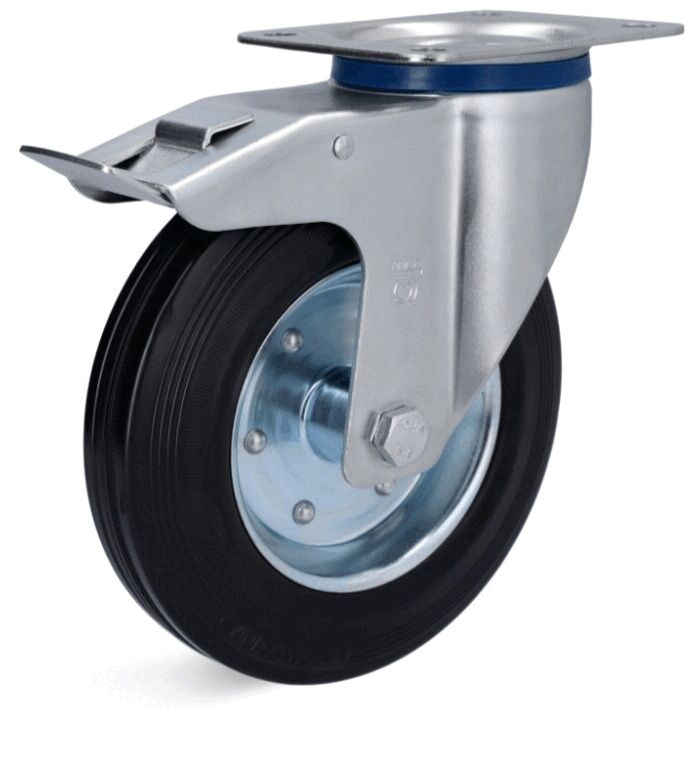

The ESD swivel casters with mounting plate - Double Stop 500 have a load capacity of 50 kg and are specifically designed for use in ESD-sensitive environments. These casters feature a total height of 100 mm and an extension of 38 mm. The wheel has a diameter of 80 mm and a width of 27 mm, equipped with a black, odorless solid rubber tire known for its vibration-damping and noise-reducing properties.
The housing made of galvanized standard sheet steel and the fork head with double ball bearing ensure a robust and durable construction. The electrical conductivity of the casters is ensured by the special design of the steel sheet wheel body and the tread. The casters are mounted with a mounting plate measuring 105 x 80 mm and feature a roller bearing. Additionally, the product has a Shore hardness of 85 A and may cause contact discoloration of the floor due to plasticizer migration. The weight of the caster is 808 g, and it is equipped with an axle hole of 8 mm and screw holes of 9 mm diameter, with the screw hole spacing being 80 x 60 mm.
