ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg

(Product No.: 602.075.ELS)

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg

Name: ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg
SKU: 602.075.ELS
Price: 5.20 CHF
Availability: InStock

ArticleNo: 602.075.ELS

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg

dpvlink:

10713

Wheel Ø:

75 mm

Wheel width:

25 mm

axle hole:

8 mm

Hub length:

29.5 mm

Properties:

Further product information

5.20 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 125 kg

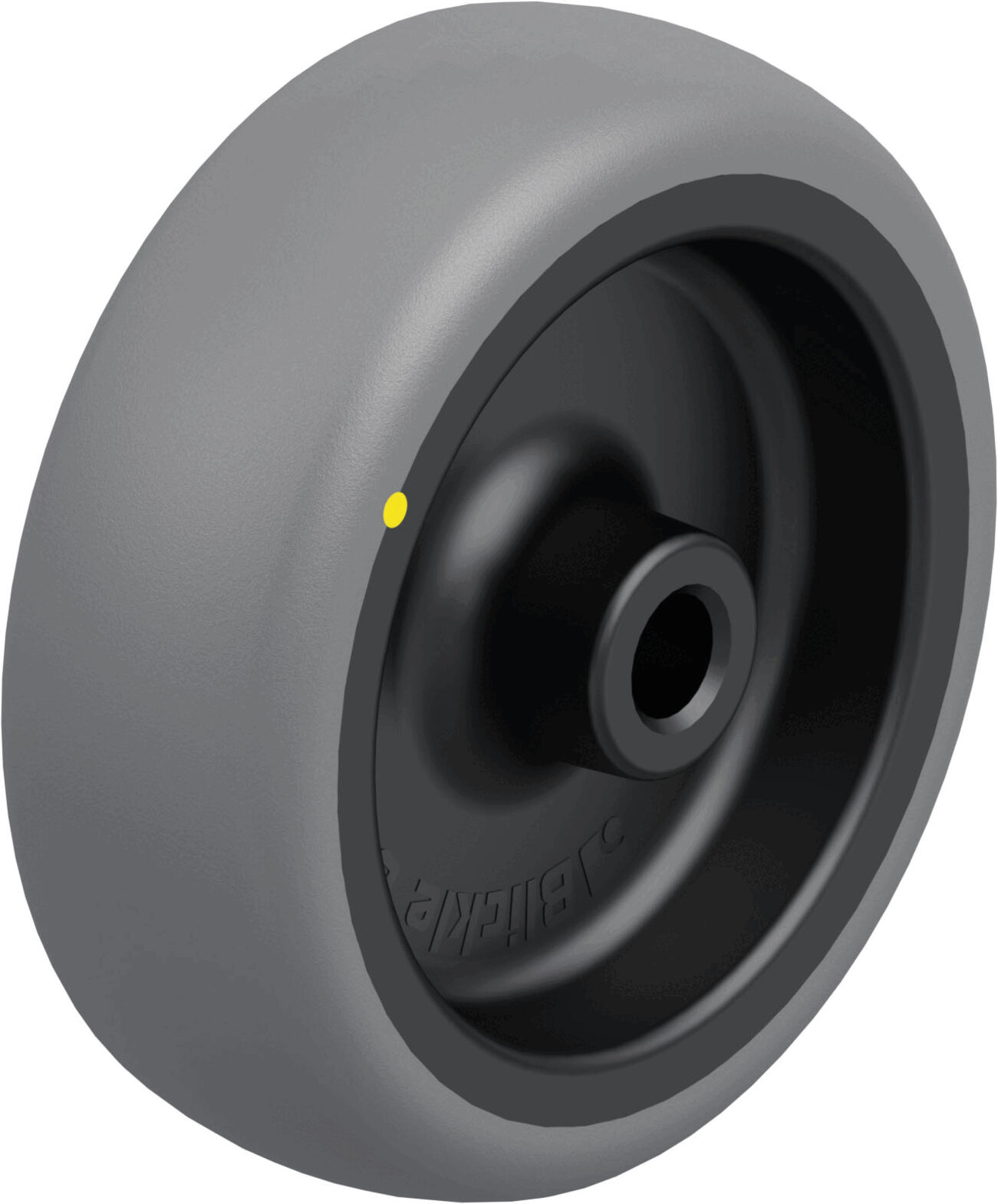

The ESD caster wheel from Blickle, equipped with a thermoplastic rubber tread, features a load capacity of 125 kg. The tread is made of a high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A, which allows for low rolling and swivel resistance. The color of the tread is gray and leaves no marks. A non-detachable, cohesive connection with the wheel body made of impact-resistant polypropylene in black ensures high durability and reliability.
The wheel has excellent chemical resistance against many aggressive substances and is temperature resistant from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C. The wheel meets the ESD standard DIN EN 61340-5-1 and provides protection against electrostatic discharges through its conductivity.
Technical specifications include a wheel diameter of 75 mm, a wheel width of 25 mm, an axle hole of 8 mm, a hub length of 29.5 mm, and a weight of 100 g. The wheel is equipped with a plain bearing, contributing to its low maintenance.
