ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg

(Product No.: 602.050.ELS)

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg

Name: ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg
SKU: 602.050.ELS
Price: 2.55 CHF
Availability: InStock

ArticleNo: 602.050.ELS

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg

dpvlink:

10713

Wheel Ø:

50 mm

Wheel width:

19 mm

axle hole:

8 mm

Hub length:

22 mm

Properties:

Further product information

2.55 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

ESD Light duty castor with thermoplastic rubber tread 650, load capacity 75 kg

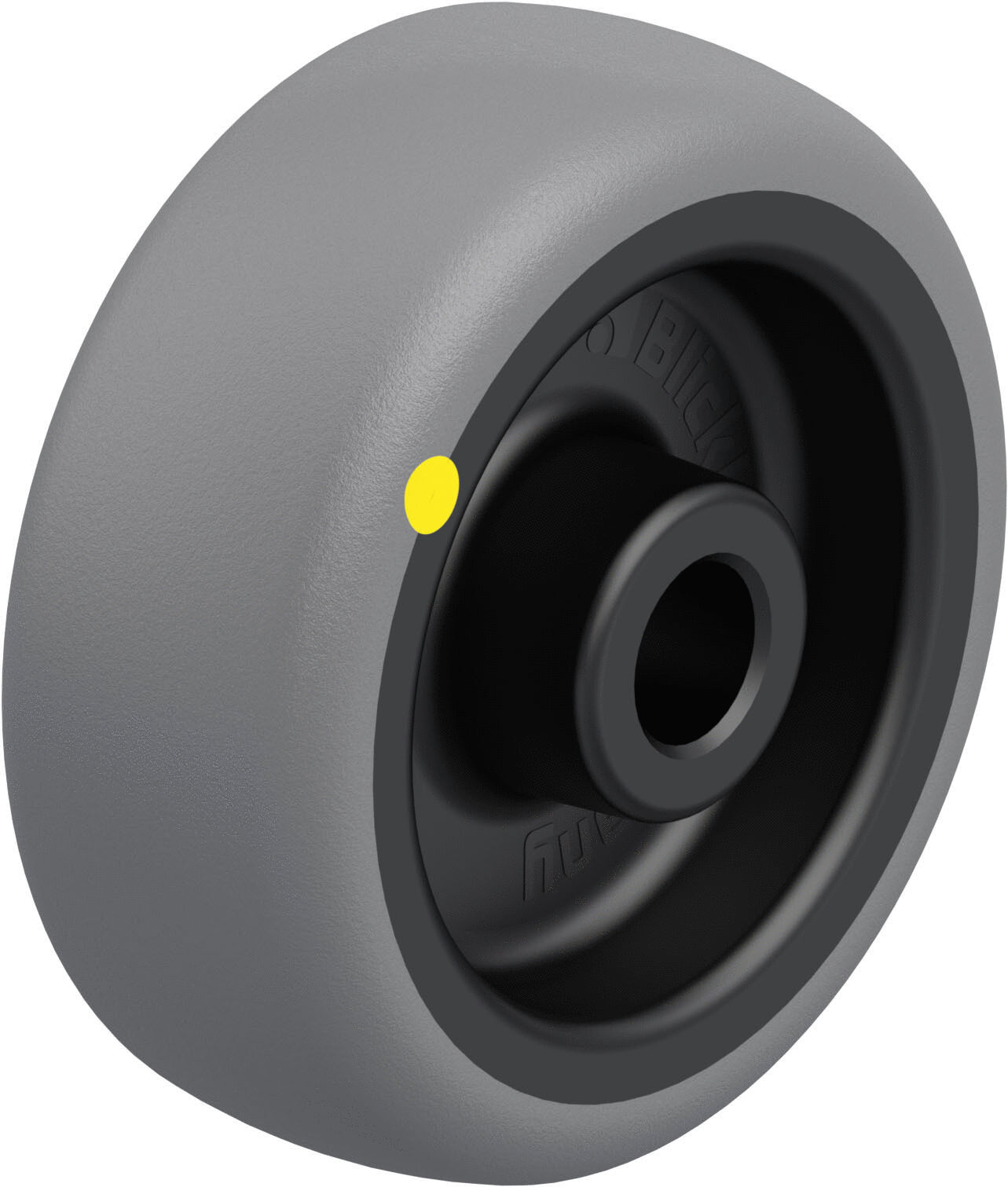

The ESD caster wheel from Blickle is distinguished by a high-quality thermoplastic rubber tread that has a hardness of 85 Shore A. This tread not only offers low rolling and swivel resistance but also leaves no marks on the floor and is firmly attached to the wheel body. The wheel body itself is made of break-resistant polypropylene in black.
The caster has a load capacity of 75 kg under static load and 30 kg in motion. With a wheel diameter of 50 mm, a wheel width of 19 mm, a hub length of 22 mm, and an axle hole of 8 mm, this caster is suitable for a variety of applications. It is ESD-compliant according to the standard DIN EN 61340-5-1 and offers high chemical resistance as well as temperature resistance from -20 °C to +60 °C, although the load capacity is reduced at temperatures above +30 °C.
The caster is equipped with a plain bearing, which contributes to its durability and ease of maintenance. With a total weight of 100 g, it is an efficient solution for use in ESD-sensitive areas.
