ESD Light duty swivel castor with bolt hole - "stop-fix", load capacity 125 kg

(Product No.: 603.075-SF.ELS)

ESD Light duty swivel castor with bolt hole - "stop-fix", load capacity 125 kg

Name: ESD Light duty swivel castor with bolt hole - "stop-fix", load capacity 125 kg
SKU: 603.075-SF.ELS
Price: 14.05 CHF
Availability: InStock

ArticleNo: 603.075-SF.ELS

ESD Light duty swivel castor with bolt hole - "stop-fix", load capacity 125 kg

dpvlink:

8057

Load capacity :

75 kg

Load capacity (static):

125 kg

Wheel Ø:

75 mm

Total height:

98 mm

Properties:

Further product information

Wheel Ø / Load capacity (static):

14.05 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

ESD Light duty swivel castor with bolt hole - "stop-fix", load capacity 125 kg

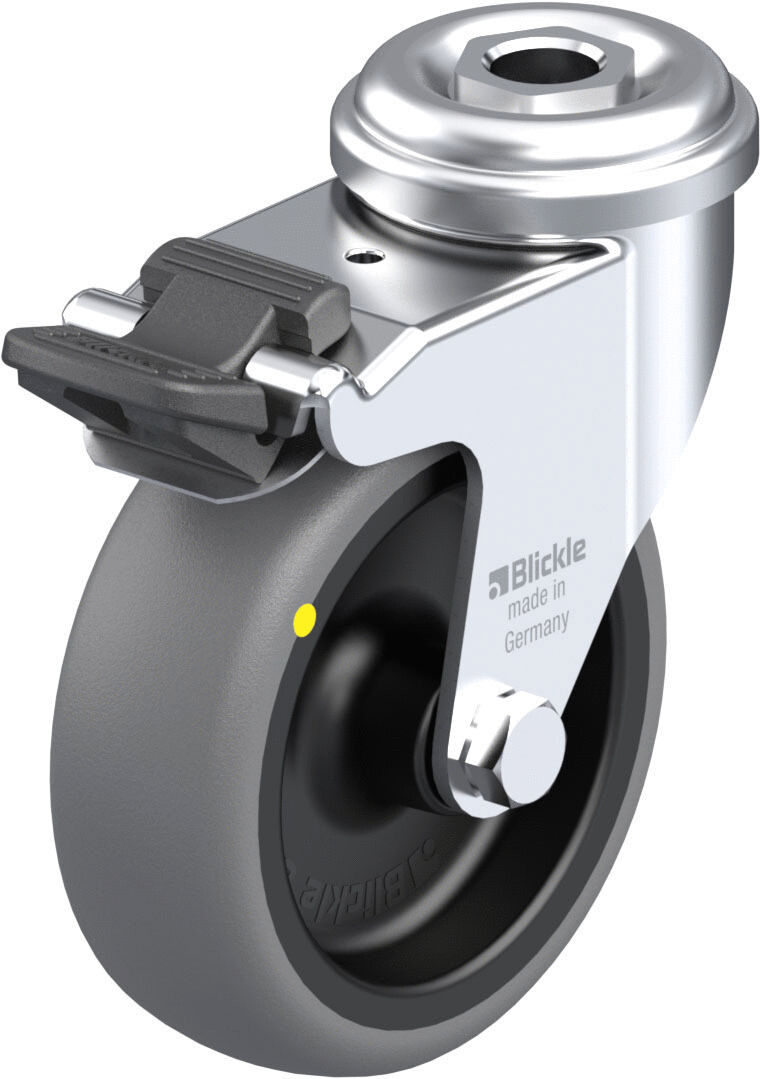

The ESD device caster "stop-fix" 650 by Blickle is characterized by a robust construction and high functionality. The housing of the LRA series is made of galvanized steel sheet, which is blue passivated and Cr6-free, ensuring a long life and minimal swivel bearing play. Thanks to the double ball bearing in the swivel head, the caster provides smooth operation.
The wheel of the TPA series features a tread made of high-quality thermoplastic rubber elastomer (TPE) with a hardness of 85 Shore A and is non-marking and oil-resistant. The wheel body is made of impact-resistant polypropylene and is black.
Further technical specifications include high chemical resistance, temperature resistance from -20 °C to +60 °C, and a load capacity of 125 kg under static load. At temperatures above +30 °C, the load capacity decreases. The caster complies with the ESD standard DIN EN 61340-5-1 and has conductive properties, making it particularly suitable for use in ESD-sensitive areas.
The caster is equipped with a brake, has a wheel diameter of 75 mm, a total height of 98 mm, and an offset of 28 mm. The plate diameter is 43 mm and the back hole 11 mm.

Details

Load capacity Load capacity: 75 kg
Load capacity (static) Load capacity (static): 125 kg
Wheel Ø Wheel Ø: 75 mm
Total height Total height: 98 mm
Bolt hole Bolt hole: 11 mm
Mounting typ Mounting typ: bolt hole
Plate diameter Plate diameter: 43 mm
Wheel bearing Wheel bearing: plain bearing
Wheel width Wheel width: 25 mm
Wheel/castor type Wheel/castor type: light duty swivel castor braked
Offset Offset: 28 mm
Conductivity Conductivity: conductive
Load capacity when moving Load capacity when moving: 50 kg
Bracket Bracket: steel sheet
Shore hardness Shore hardness: 85 Shore A
Tread Tread: rubber, thermoplastic
ESD ESD: yes
Temperature resistance Temperature resistance: -20 - 60 °C
Weight Weight: 200 g

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 380

Complete Catalog 2023 - 2024

Product Family

ESD Light duty swivel castor with bolt hole - "stop-fix"

Housing series LRA

Sheet steel, electrogalvanized, blue passivated, Cr6-free
Double ball bearings in the swivel ring
minimal swivel head play, smooth running, long service life thanks to special dynamic Blickle riveting

Wheel series TPA

Tread: high-quality thermoplastic rubber elastomer (TPE), hardness 85 Shore A, color grey, non-marking, oil-containing
Wheel body: high-quality polypropylene, unbreakable, color black

Other properties
