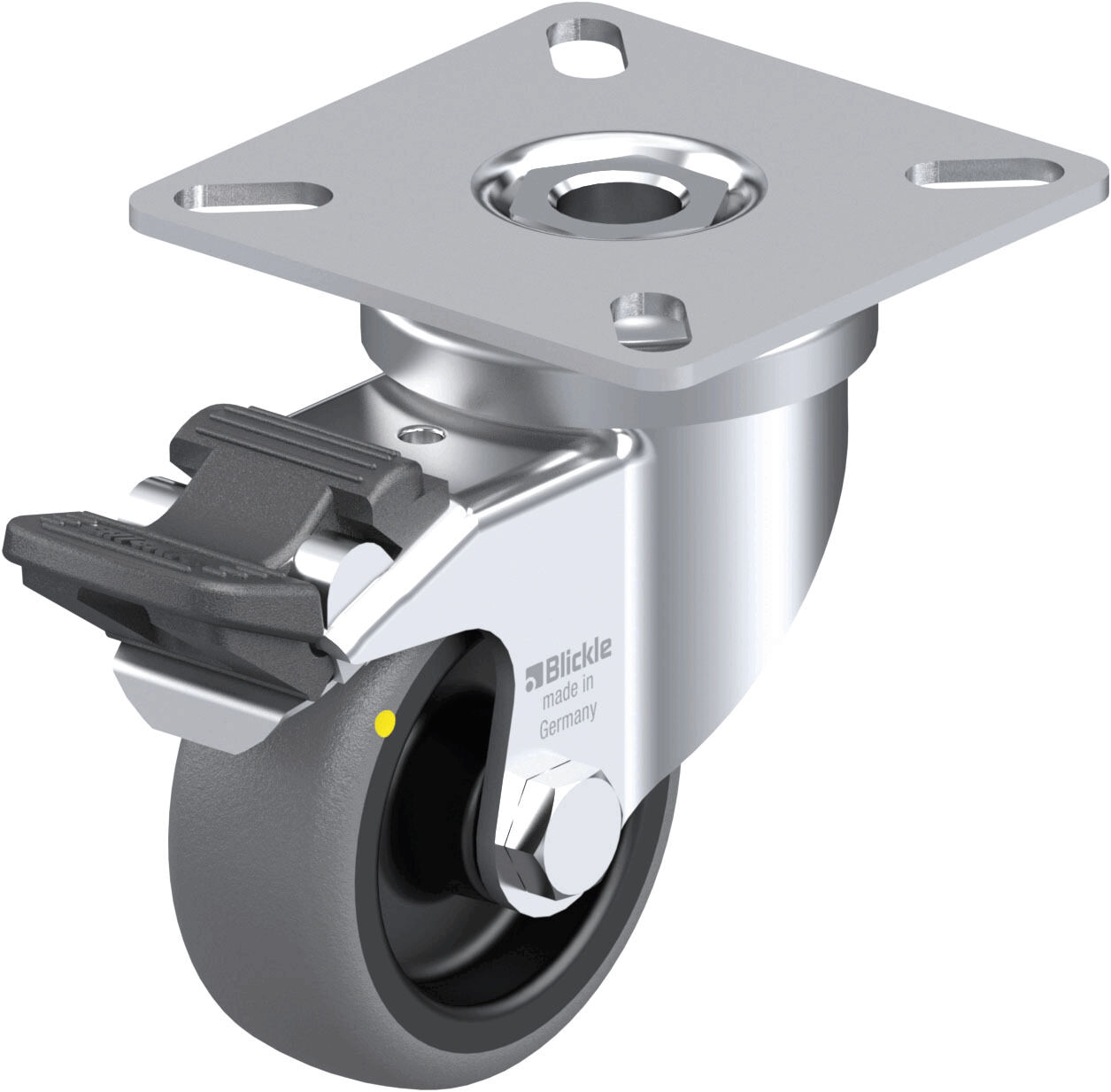

ESD Light duty swivel castor with top plate - "stop-fix" 650, load capacity 75 kg
ESD Equipment Castor with Mounting Plate - "stop-fix" 650, Load Capacity 75 kg
This ESD equipment castor with mounting plate "stop-fix" from the 650 series is characterized by its high load capacity of 75 kg and its compliance with the ESD standard DIN EN 61340-5-1. The housing is made of galvanized sheet steel, blue passivated and Cr6-free, ensuring a long lifespan and smooth operation due to the special dynamic Blickle riveting. The wheel consists of a high-quality polypropylene wheel body and a tread made of thermoplastic rubber elastomer, which guarantees high chemical resistance and non-marking properties. Additionally, the product offers a temperature resistance from -20 °C to +60 °C. Technical Data: - Load capacity (static): 75 kg
- Wheel diameter: 50 mm
- Total height: 71 mm
- Protrusion: 24 mm
- ESD: yes
- Conductivity: conductive
- Weight: 200 g
- Shore hardness: 85 Shore A
- Mounting type: mounting plate
- Plate dimensions: 60 x 60 mm
- Wheel/castor type: braked swivel castor
- Wheel width: 25 mm
- Wheel bearing: plain bearing
- Screw hole: 6.2 mm
- Hole spacing: 48 x 48 mm
- Temperature resistance: -20 - 60 °C
- Load capacity in motion: 30 kg
Item number: 604.050.SF.ELS
This ESD equipment castor with mounting plate "stop-fix" from the 650 series is characterized by its high load capacity of 75 kg and its compliance with the ESD standard DIN EN 61340-5-1. The housing is made of galvanized sheet steel, blue passivated and Cr6-free, ensuring a long lifespan and smooth operation due to the special dynamic Blickle riveting. The wheel consists of a high-quality polypropylene wheel body and a tread made of thermoplastic rubber elastomer, which guarantees high chemical resistance and non-marking properties. Additionally, the product offers a temperature resistance from -20 °C to +60 °C. Technical Data: - Load capacity (static): 75 kg
- Wheel diameter: 50 mm
- Total height: 71 mm
- Protrusion: 24 mm
- ESD: yes
- Conductivity: conductive
- Weight: 200 g
- Shore hardness: 85 Shore A
- Mounting type: mounting plate
- Plate dimensions: 60 x 60 mm
- Wheel/castor type: braked swivel castor
- Wheel width: 25 mm
- Wheel bearing: plain bearing
- Screw hole: 6.2 mm
- Hole spacing: 48 x 48 mm
- Temperature resistance: -20 - 60 °C
- Load capacity in motion: 30 kg
Item number: 604.050.SF.ELS
Details
- Load capacity (static) Load capacity (static)
- 75 kg
- Wheel Ø Wheel Ø
- 50 mm
- Total height Total height
- 71 mm
- Bolt hole Bolt hole
- 6.2 mm
- Bolt hole spacing Bolt hole spacing
- 48 x 48 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 60 x 60 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 25 mm
- Wheel/castor type Wheel/castor type
- light duty swivel castor braked
- Offset Offset
- 24 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 30 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 200
