Temperature measuring device WCU
(Product No.: 534.501.99)

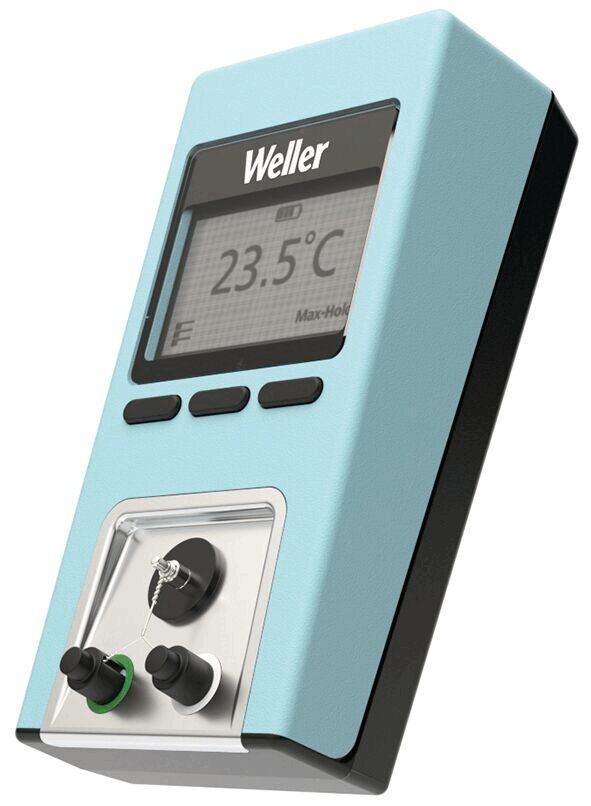

The image shows a temperature measuring device in a light blue casing. It has a large display showing the temperature at 23.5 °C, below which there are two buttons and a small probe.

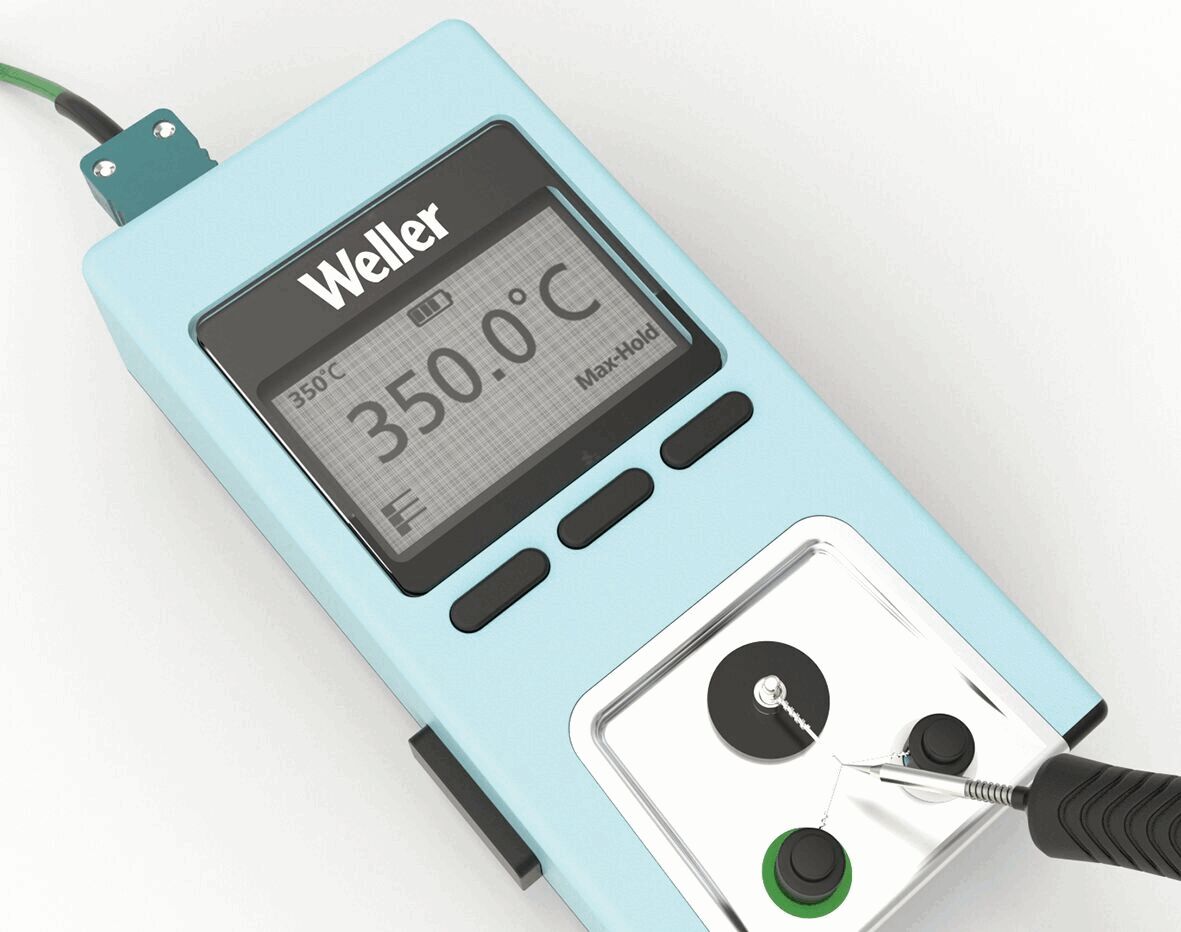

The image displays a digitally controlled thermometer in light blue with a large display showing the temperature of 350 °C. Next to it, there is a connection for a device.

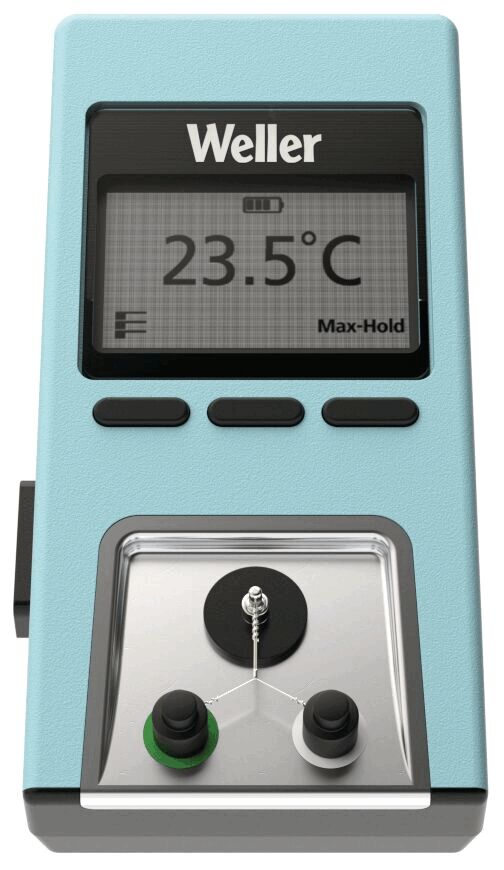

The image shows a digital thermometer in a light blue casing. It has a display showing the temperature at 23.5°C, two buttons below it, and connectors on the bottom.

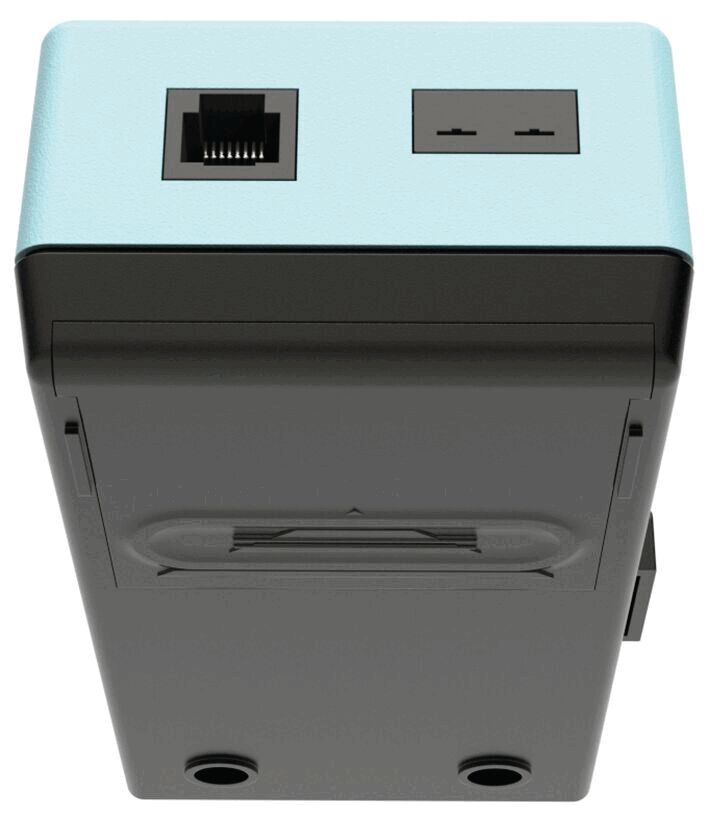

The image shows a compact device in black and blue colors. On top, there are two ports: a network port and two sockets. The bottom has round openings.
The image shows a digital thermometer from Weller. It has a blue casing with a large digital display that reads 350 °C. There is a connector on the side.
The image shows a package for a Weller brand device. On the front, the temperature display (23.5 °C) and controls are visible. The text refers to the future of soldering.
Mobile Preview: The image shows a temperature measuring device in a light blue casing. It has a large display showing the temperature at 23.5 °C, below which there are two buttons and a small probe.
Mobile Preview: The image displays a digitally controlled thermometer in light blue with a large display showing the temperature of 350 °C. Next to it, there is a connection for a device.
Mobile Preview: The image shows a digital thermometer in a light blue casing. It has a display showing the temperature at 23.5°C, two buttons below it, and connectors on the bottom.
Mobile Preview: The image shows a compact device in black and blue colors. On top, there are two ports: a network port and two sockets. The bottom has round openings.
Mobile Preview: The image shows a digital thermometer from Weller. It has a blue casing with a large digital display that reads 350 °C. There is a connector on the side.
Mobile Preview: The image shows a package for a Weller brand device. On the front, the temperature display (23.5 °C) and controls are visible. The text refers to the future of soldering.
Notice / Inquire

Temperature measuring device WCU

Temperature measuring device WCU

dpvlink:
26514
Properties:
Further product information

420.10 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Temperature measuring device WCU

The Weller WCU temperature measuring device is an essential tool for professionals who need to perform precise temperature measurements on soldering tips. This ESD-safe device is battery-operated and features a digital display that allows for quick switching between temperature units Celsius (°C) and Fahrenheit (°F). The measurement range of the device extends from -150°C to +1200°C, covering a wide range of applications.
Additionally, the device offers a backlight for improved readability under various lighting conditions as well as a Max. Hold function, which retains the highest measured value on the display. A count function for the temperature measurements performed and an auto-shutdown for energy saving complement the functionality.
The dimensions of the temperature measuring device are 73 mm in width, 43 mm in height, and 138 mm in length, with a weight of 120 grams. Note that the required sensor must be purchased separately.
Height
Height
43 mm
Length
Length
138 mm
Width
Width
73 mm
Weight
Weight
120 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image displays a three-pronged metal clip. In the center, there is a coiled wire from which two wires with colored plastic handles (green and white) extend. At the top, there is a loop.
Preview: Sensors WCU for temperature measuring device WCU
Preview: The image shows several wire-like objects arranged in a triple Y-shape. Each Y-shape has a gray middle part and white and green end pieces.
Preview: The image shows a transparent plastic bag with a white label that reads
Preview: The image shows a transparent plastic bag with a white label. It reads
Sensors WCU for temperature measuring device...
Sensor WCU temperature meter WCU
PU = 10 pieces
Diameter 0.12 to 0.80 mm
dpvlink
30919

32.60 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 594
Complete Catalog 2023 - 2024

Product Family

Temperature measuring device WCU

Article image
Article description
Height
Length
Width
Weight
Price
Compare
534.501.99 - Temperature measuring device WCU
534.501.99
Temperature measuring device WCU
43 mm
138 mm
73 mm
120 g
420.10 CHF
