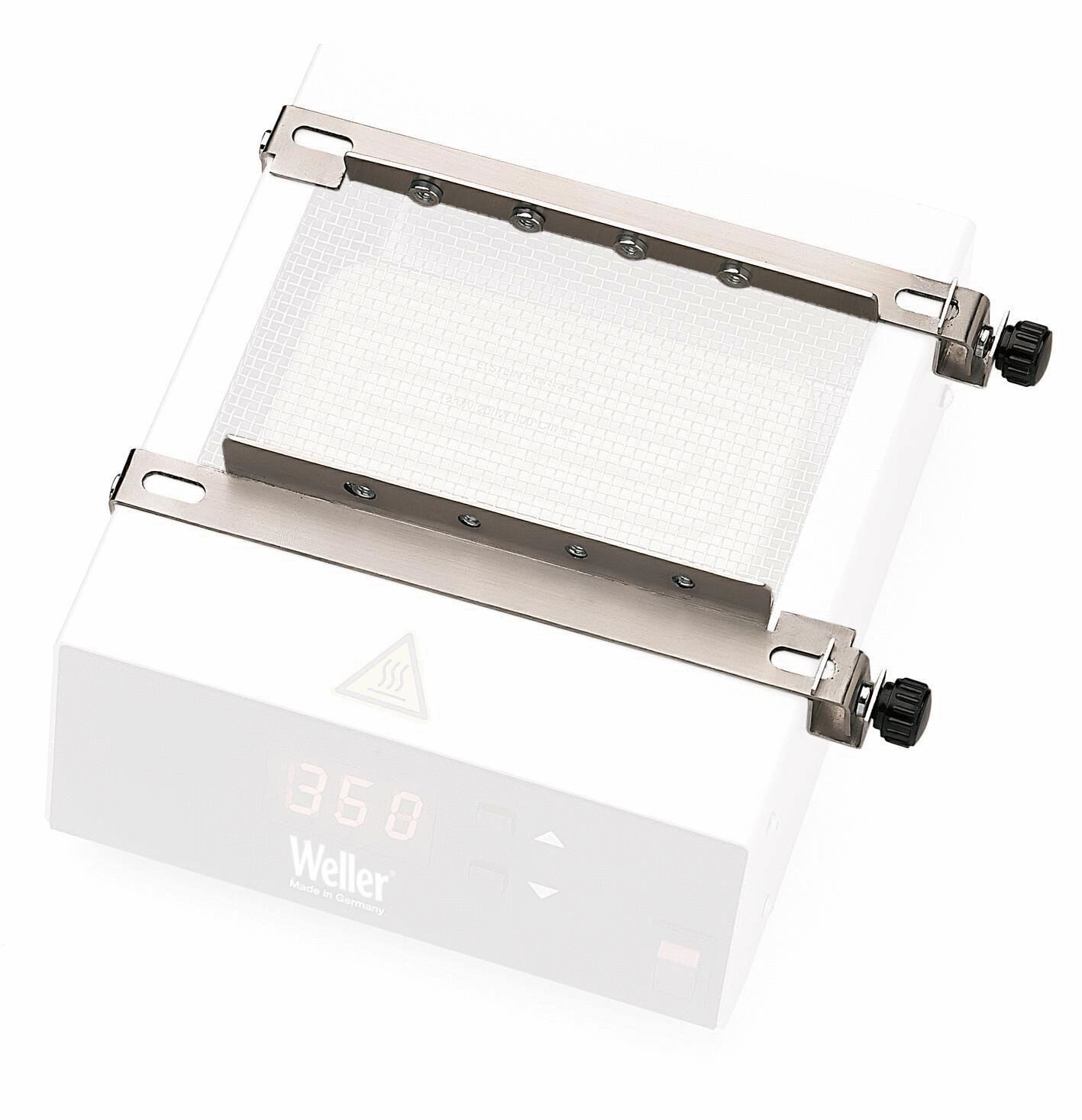

The image shows an electric heating element in rectangular shape. It has a metal surface with a grid. Below are buttons and a display for temperature indication.

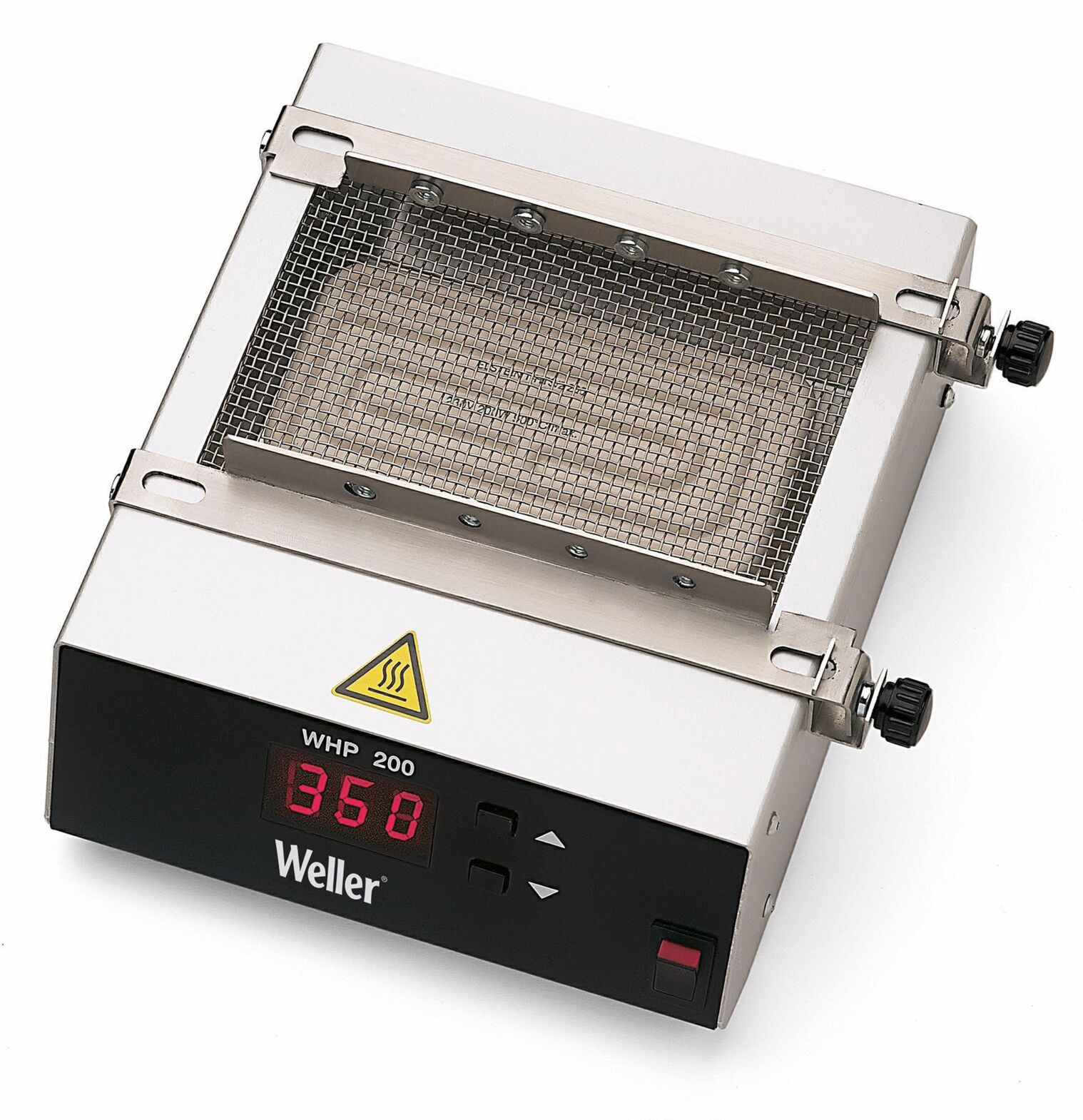

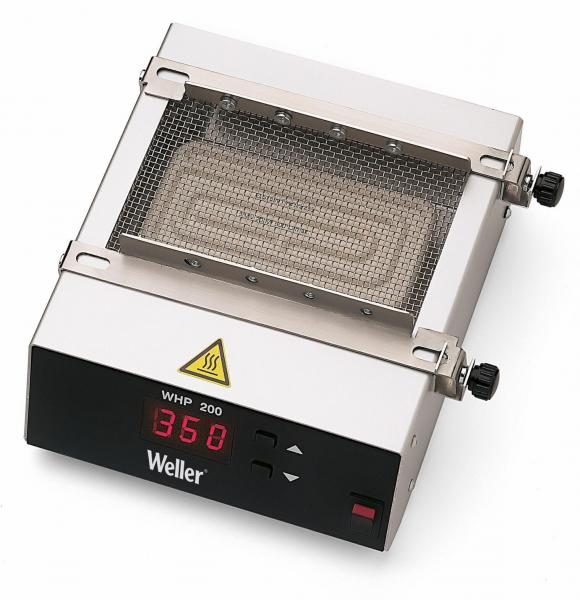

The image shows an electrical device with a rectangular heating surface. It features a digital display showing the temperature at 350 and two adjustable screws on the sides.
Preview: The image shows an electric heating element in rectangular shape. It has a metal surface with a grid. Below are buttons and a display for temperature indication.
Preview: The image shows an electrical device with a rectangular heating surface. It features a digital display showing the temperature at 350 and two adjustable screws on the sides.
Infrared preheating plate WHP 200
(Product No.: 533.716.99)
The image shows an electric heating element in rectangular shape. It has a metal surface with a grid. Below are buttons and a display for temperature indication.
The image shows an electrical device with a rectangular heating surface. It features a digital display showing the temperature at 350 and two adjustable screws on the sides.
Mobile Preview: The image shows an electric heating element in rectangular shape. It has a metal surface with a grid. Below are buttons and a display for temperature indication.
Mobile Preview: The image shows an electrical device with a rectangular heating surface. It features a digital display showing the temperature at 350 and two adjustable screws on the sides.
Notice

Infrared preheating plate WHP 200

Infrared preheating plate WHP 200

dpvlink:
13777
Further product information

981.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Infrared preheating plate WHP 200

WHP 200 Infrared Preheating Plate
The WHP 200 Infrared Preheating Plate is a high-quality device for professional preheating of circuit boards and electronic components. This plate is specifically designed for precise soldering and desoldering tasks that require accurate temperature control. The robust construction and advanced infrared technology enable rapid and effective heating, thereby improving soldering quality and minimizing the risk of thermal damage.

Technical Specifications:
  • Dimensions: 195 x 70 x 165 mm (WxHxD)
  • Power: 200 W
  • Supply Voltage: 230 V
  • Temperature Range: 50°C - 400°C
  • Heatable Area: 120 x 60 mm
  • Digital display for set and actual temperature
  • Digital control electronics
  • Infrared high-temperature emitter
  • ESD-safe
  • 2 Easy Fix circuit board holders

    This preheating plate is ideal for electronics workshops and laboratories that value precision and safety, featuring overheat protection and automatic shutdown for additional safety.
    • Height [mm]
    Height
    70 mm
    Length [mm]
    Length
    165 mm
    Width [mm]
    Width
    195 mm
