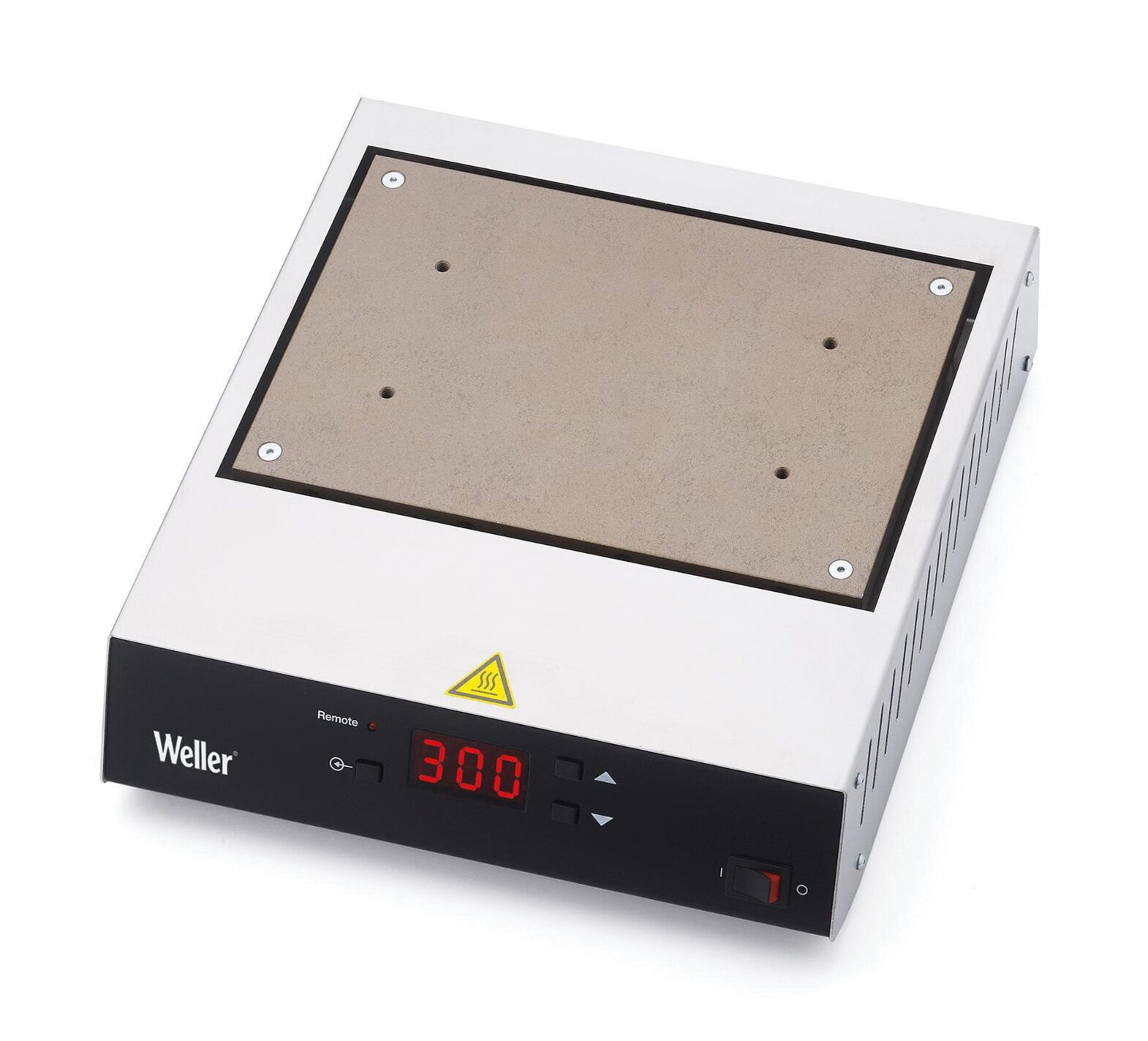

The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.

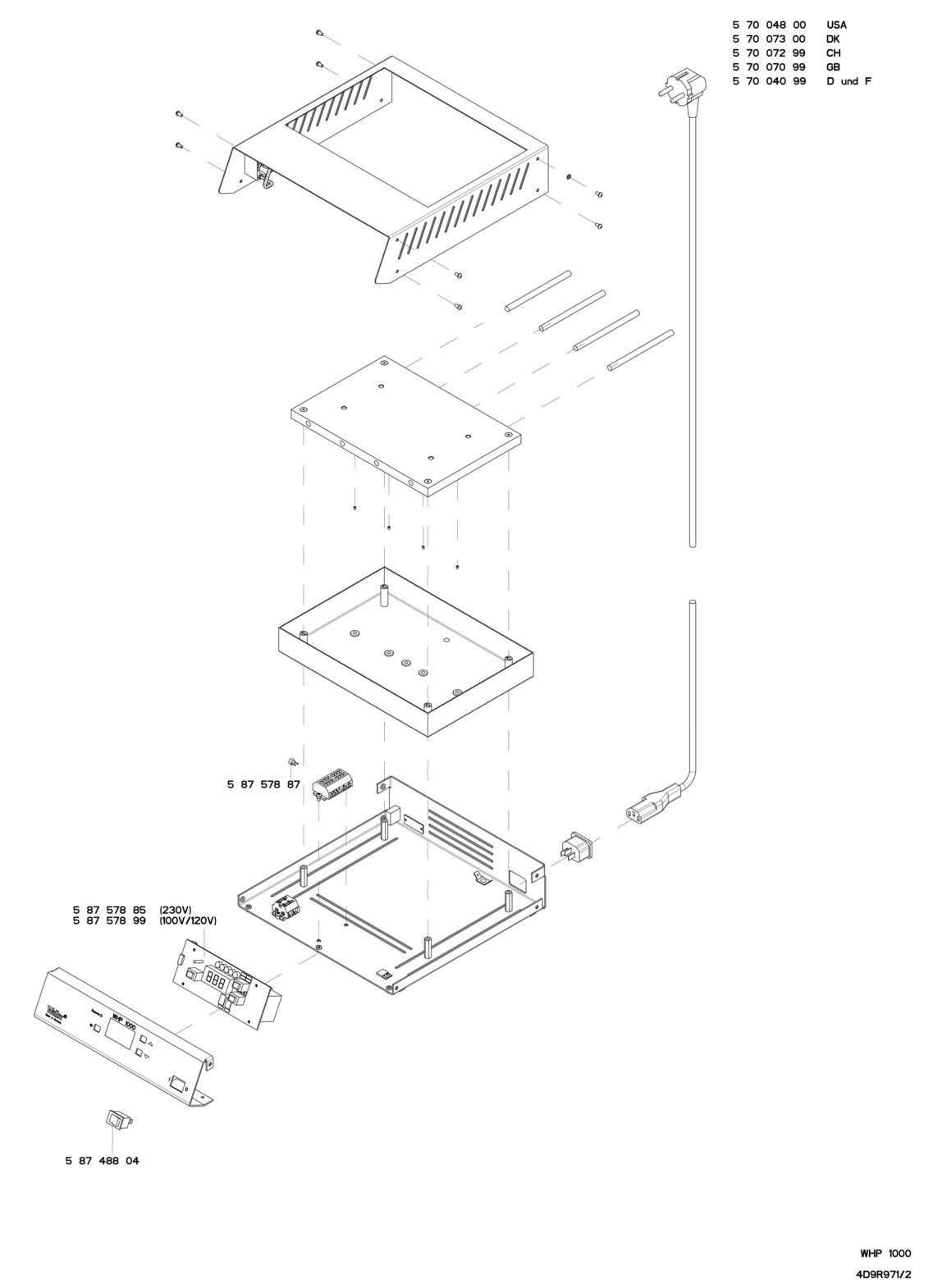

The image displays a technical drawing of a casing. It lists several parts, including a top section, a bottom section, and screws required for assembly.
Preview: The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
Preview: The image displays a technical drawing of a casing. It lists several parts, including a top section, a bottom section, and screws required for assembly.
WHP 1000 Preheating plate
(Product No.: 533.648.99)
The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
The image displays a technical drawing of a casing. It lists several parts, including a top section, a bottom section, and screws required for assembly.
Mobile Preview: The image shows a rectangular, flat heating plate with a gray surface. Below are control knobs and a display that shows the temperature. The corners are rounded.
Mobile Preview: The image displays a technical drawing of a casing. It lists several parts, including a top section, a bottom section, and screws required for assembly.
Notice / Inquire

WHP 1000 Preheating plate

WHP 1000 Preheating plate

dpvlink:
13775
Power:
1000 W
heated surface:
220 x 150 mm
Temperature range:
50 - 300 °C
Further product information

2,059.35 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

WHP 1000 Preheating plate

The Weller WHP 1000 is an advanced preheating plate designed for use in professional electronic workshops and laboratories. This device features a heated area of 220 x 150 mm and operates with a power of 1000 W at a mains voltage of 230 V. The robust construction of the WHP 1000 allows for precise temperature control ranging from 50°C to 300°C, making it particularly suitable for preheating large circuit boards and electronic components.
The preheating plate is ESD-safe and allows the connection of a K-type thermocouple, which improves soldering quality and minimizes thermal damage. With dimensions of 395 mm in width, 254 mm in length, and a height of 70 mm, this reliable tool seamlessly integrates into any workspace. The WHP 1000 effectively contributes to the optimization of soldering and repair processes, making it a valuable investment for any technical operation.
Power
Power
1000 W
heated surface
heated surface
220 x 150 mm
Temperature range
Temperature range
50 - 300 °C
Height
Height
70 mm
Length
Length
254 mm
Width
Width
395 mm
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 609
Complete Catalog 2023 - 2024

Product Family

Preheating plate WHP 1000

Article image
Article description
Power
heated surface
Temperature range
Price
Compare
533.648.99 - WHP 1000 Preheating plate
533.648.99
WHP 1000 Preheating plate
1000 W
220 x 150 mm
50 - 300 °C
2,059.35 CHF
