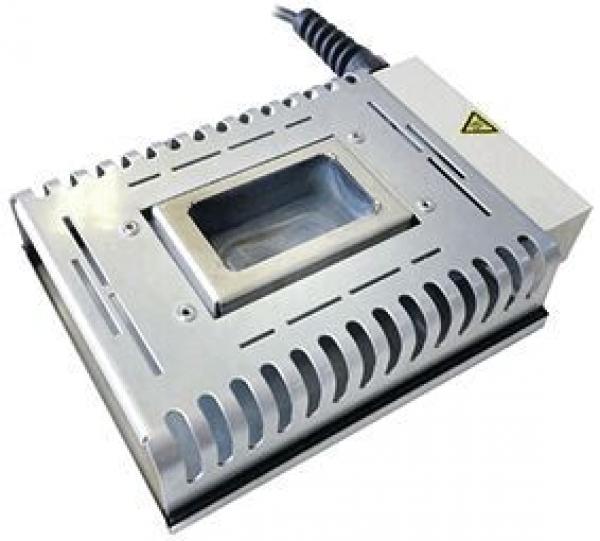

The image shows a silver, rectangular device with a central, rectangular opening. It has a smooth surface, ventilation holes, and a cable on the left side.
Soldering bath WSB 150
(Product No.: 527.042.99)
The image shows a silver, rectangular device with a central, rectangular opening. It has a smooth surface, ventilation holes, and a cable on the left side.
Notice

Soldering bath WSB 150

Soldering bath WSB 150

dpvlink:
7501
Further product information

582.25 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Soldering bath WSB 150

Soldering Bath WSB 150
The WSB 150 soldering bath from Weller is a high-performance tool for professional electronics workshops and laboratories. It is excellent for tinning and detinning wires as well as circuit boards and supports the processing of small electronic components. The robust construction and the chemically resistant solder bath guarantee durability and reliability. With precise temperature control through an integrated thermostat and overheat protection, it offers a safe and stable working environment. The compact design facilitates handling and saves space.

Technical Data:
  • Dimensions: 175 x 120 x 54 mm (LxHxW)
  • Solder bath size: 58 x 33 x 19 mm
  • Operating voltage: 24 V/DC
  • Power: 150 W
  • Warm-up time: approx. 10 min (50°C - 350°C)
  • Temperature range: 50°C - 450°C
  • Compatible with WT 2M, WT 2010M, WT 2020M
  • Can be connected to all Weller stations with 150 W or WR3M

    Ideal for lead-free solders and provides an efficient solution for improving soldering quality and efficiency.
    • Voltage
    Voltage
    24 V
    Height [mm]
    Height
    54 mm
    Length [mm]
    Length
    175 mm
    Width [mm]
    Width
    120 mm
    Documents

    Downloads

    Please log in to download datasheets! :
    There are several datasheets for this product. Please log in!

    Catalogues

    Page: 610
    Complete Catalog 2023 - 2024

    Product Family

    Article image
    Article description
    Voltage
    Height [mm]
    Length [mm]
    Width [mm]
    Price
    Compare
    527.042.99 - Soldering bath WSB 150
    527.042.99
    Soldering bath WSB 150
    24 V
    54 mm
    175 mm
    120 mm
    582.25 CHF
    Show Compare List (0)

    This product is compatible with (for example):

    SD 1000 solder dispenser
    Solder dispenser SD-1000
    dpvlink
    7479

    67.40 CHF
    Solder tin reel holder ESD for second reel...
    Solder tin holder ESD DS-2500AB
    (Additional holder for second solder wire reel)
    dpvlink
    17637

    32.20 CHF
    Solder tin dispenser ESD DS-25002B for 2...
    Solder tin dispenser ESD DS-2500B for 2 reels
    dimensions.: 190 x 150 x 300 mm, weight 1.4 kg
    dpvlink
    17637

    70.35 CHF
    Solder tin dispenser ESD DS-2500
    Solder tin dispenser ESD DS-2500 with tool holder
    dimensions.: 190 x 150 x 155 mm, weight 1 kg
    dpvlink
    17637

    40.15 CHF
    WT 2020M set soldering station
    WT 2020M-Set soldering station WELLER consists of:
    - WT 2M supply unit
    - WMRP Set (WMRP + WDH 50 + RT 3)
    - WMRT Set (WMRT + WMRTH + RTW 2 45° )
    >>>WT WellerTechnology Line<<<
    dpvlink
    30408

    1,051.80 CHF
    WT 2010M set soldering station
    WT 2010M-Set soldering station WELLER consists of:
    - WT 2M supply unit
    - WTP 90 soldering iron + soldering tip XNT A
    - WSR 200 safety rest
    >>>WT WellerTechnology Line<<<
    dpvlink
    30408

    788.60 CHF
    The image displays a compact soldering device with a digital display in the center. The front features buttons for temperature control. It is designed in blue and black and has a non-slip surface.
    WT 2M supply unit
    WT 2M 2-channel supply unit 150 W, 230 V

    >>>WT WellerTechnology Line<<<
    dpvlink
    21892

    504.30 CHF
    The image shows a long, narrow wooden stick with a sharp, pointed edge. The surface is smooth and dark brown to black. The stick appears robust and stable.
    Soldering tool type 35622
    Soldering tool 35622 / SP-3010
    fiber glass nylon reinforced plastic
    dpvlink
    20227

    4.90 CHF
    Polishing stone
    Grinding stone to remove thick
    oxide layers from soldering tips
    Cleaning possible only in cold condition of the
    soldering tip
    dpvlink
    13825

    16.35 CHF
    The image shows four tools: a black soldering station with a golden spiral, a round can with green contents, a gray grinding stone, and a wooden brush with metal bristles.
    WDC 2 Cleaning set complete
    WDC 2 - cleaning set consisting of:
    WCD dry cleaner, tip activator,
    stainless steel brush
    dpvlink
    13768

    53.70 CHF
    The picture shows a cleaning kit: a black box with golden contents, a green tube, a gray sponge, and a wooden brush with metal bristles. All parts are arranged on a white background.
    WDC Cleaning set complete
    WDC - cleaning set consisting of:
    WCD dry cleaner, WPB1 grindstone, tip activator,
    stainless steel brush
    dpvlink
    13768

    62.10 CHF
    WDC 2 - Dry Cleaner
    WDC Weller - Dry cleaner
    for WDH safety rests
    dpvlink
    15047

    21.40 CHF
    WDC - Dry Cleaner
    WDC Weller - Dry cleaner
    dpvlink
    7481

    31.55 CHF
    WDC 2 cleaning wool brass
    Spiral wool for WDC 2 replacement
    brass-plated
    PU = 2 pcs
    dpvlink
    30244

    6.65 CHF
    Stainless steel brush (3 pieces)
    Stainless steel wire brush
    (3) packed
    dpvlink
    13823

    17.40 CHF
    WDC 2 cleaning wool steel
    Spiral wool for WDC 2 replacement (2 pcs)
    dpvlink
    30244

    8.55 CHF
    WDC cleaning wool stainless steel
    Spiral wool for WDC replacement (2 pcs)
    dpvlink
    30244

    8.10 CHF
    The image shows a tool station for winding wires. It consists of a sturdy base, a spool with silver wire, and a stand that holds two markers and a pair of pliers.
    Solder tin dispenser ESD DS-2500-K incl....
    Solder tin dispenser ESD DS-2500-K incl. tools
    Diagonal cutting pliers TRE 03 NB
    Flat-nosed pliers PN2005
    desoldering pump PD03
    Tweezers 0SA
    Phillips Screwdriver PG2-1
    dimensions: 190 x 150 x 255 mm, weight 1.4 kg
    dpvlink
    17637

    81.90 CHF

    This product is similar to:

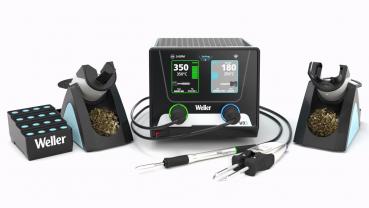

    The image shows a soldering station with two soldering tips and one holder each. In the center, there is a control panel with two digital displays. On the left is a type of storage box.
