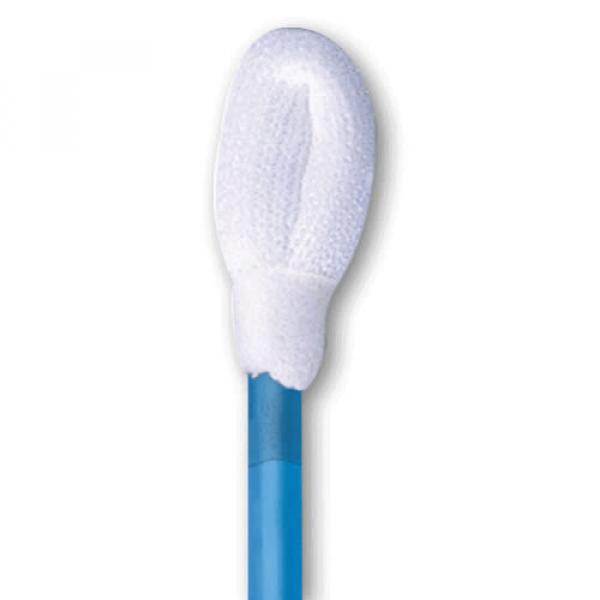

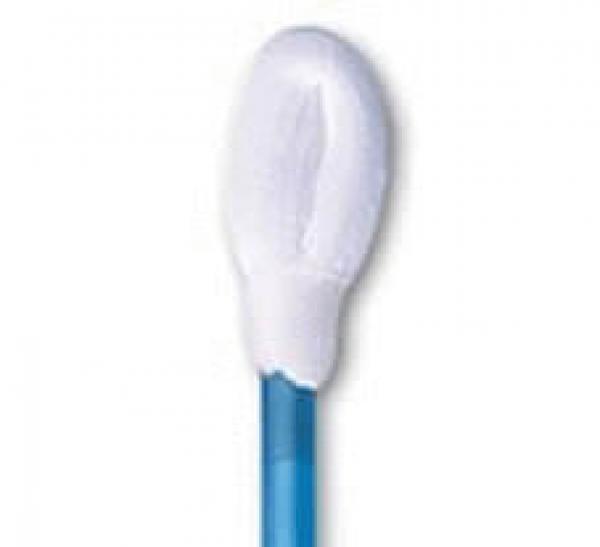

The image shows a cotton swab with an oval, white cotton head. The stick is made of blue plastic. The head is soft and is used for cleaning or applying substances.
ESD Cleaning sticks - Swab
(Product No.: 51121.ESD)
The image shows a cotton swab with an oval, white cotton head. The stick is made of blue plastic. The head is soft and is used for cleaning or applying substances.
Notice / Inquire

ESD Cleaning sticks - Swab

ESD Cleaning sticks - Swab

dpvlink:
30436
Length :
71 mm
Tip width:
6,4/ 5,8 mm
Thickness/diameter:
2.5 mm
Tip length:
10,2 mm
PU:
500 piece
Properties:
Further product information

NEW
327.10 CHF

excl. 8.1% tax

1 PCU
Compare Compare
Notice / Inquire
Product Info

ESD Cleaning sticks - Swab

The ESD cleaning swabs from Chemtronics provide a reliable solution for cleaning sensitive electronic components. These swabs are characterized by their excellent solvent resistance and a surface resistance of 10⁰ Ohm/square. They leave minimal ionic, non-volatile residues and cause no particle contamination. Additionally, they are effective regardless of humidity and are free from amines, silicones, and static dissipative coatings. A special feature is that they do not generate any tribo-charging and the handles dissipate 99% of a 5 kV charge within 0.5 seconds.

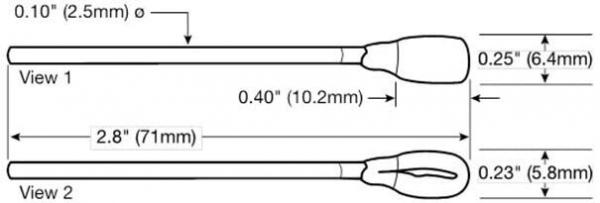

The tip of the swab measures 6.4 mm in width and 10.2 mm in length, while the stem is 2.5 mm thick and 71 mm long. Each box contains 500 pieces, making them particularly economical. Ideal for all applications requiring precise and safe cleaning in electronics manufacturing and maintenance.
Length
Length
71 mm
Tip width
Tip width
6,4/ 5,8 mm
Thickness/diameter
Thickness/diameter
2.5 mm
Tip length
Tip length
10,2 mm
PU
PU
500 piece
ESD
ESD
yes
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ESD Cleaning sticks - Swab

Properties & advantages

  • Excellent resistance to solvents
  • Surface resistance of 10¹⁰ ohm/square
  • Low ionic, non-volatile residues and particle contamination
  • No dependence on air humidity
  • No amines, no silicones, no static dissipative coatings
  • No tribocharge generation
  • Handles dissipate 99% of a (5 kV) charge in 0.5 seconds

Applications

  • Suitable for all applications with sensitive electronics

Article image
Article description
Length
Tip width
Thickness/diameter
Tip length
PU
Price
Compare
NEW
41050.ESD - ESD Cleaning sticks - Swab
41050.ESD
ESD Cleaning sticks - Swab
71 mm
3.6/ 3.3 mm
2.5 mm
10,2 mm
500 piece
129.60 CHF
NEW
44070.ESD - ESD Cleaning sticks - Swab
44070.ESD
ESD Cleaning sticks - Swab
81 mm
3.3/ 2.8 mm
2.5 mm
9,9 mm
500 piece
138.40 CHF
NEW
49250.ESD - ESD Cleaning sticks - Swab
49250.ESD
ESD Cleaning sticks - Swab
146 mm
12.0/ 8.0 mm
3.0 mm
27 mm
500 piece
187.05 CHF
NEW
51121.ESD - ESD Cleaning sticks - Swab
51121.ESD
ESD Cleaning sticks - Swab
71 mm
6,4/ 5,8 mm
2.5 mm
10,2 mm
500 piece
327.10 CHF
