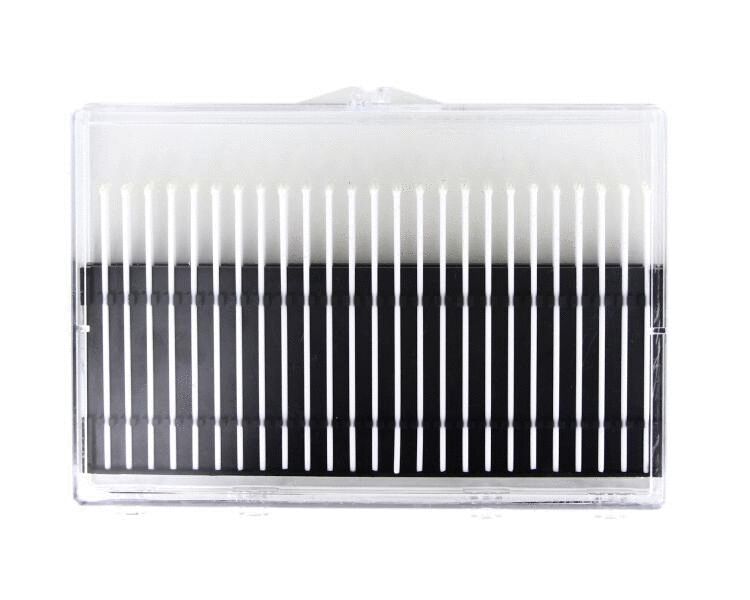

Preview: The image shows a rectangular, clear container with several parallel, fine, white and black stripes. It appears structured and could be intended for cosmetic applications.

ESD cleaning sticks Sticky Swabs, head 3 mm

(Product No.: I-IT01403/25)

Mobile Preview: In the image, there is a slim, straight rod that is slightly rounded at one end. It has a light color and is probably made of plastic or a similar material.

Mobile Preview: The image shows a rectangular, clear container with several parallel, fine, white and black stripes. It appears structured and could be intended for cosmetic applications.

(Product No.: I-IT01403/25)

ESD cleaning sticks Sticky Swabs, head 3 mm

Name: ESD cleaning sticks Sticky Swabs, head 3 mm
SKU: I-IT01403/25
Price: 34.20 CHF
Availability: InStock

ArticleNo: I-IT01403/25

ESD cleaning sticks Sticky Swabs, head 3 mm

dpvlink:

22768

Properties:

Further product information

34.20 CHF

excl. 8.1% tax

1 PCU

Compare

Notice

Product Info

ESD cleaning sticks Sticky Swabs, head 3 mm

The ESD cleaning sticks Sticky Swabs from ideal-tek are specifically designed for use in cleanroom environments to effectively remove particles from tight and hard-to-reach areas. These sticks are ESD-safe and comply with the ESD standard DIN EN 61340-5-1, making them ideal for use in sensitive manufacturing processes such as semiconductor manufacturing. The sticks are lint-free, leave no adhesive residues, and feature a soft, absorbent, and non-scratching tip. They are suitable for use in Class 100 / ISO 5 cleanrooms.
The sticks have a head width and head thickness of 3.0 mm each, with a stick length of 70 mm. The handle is made of PVC and measures 2.0 mm in width. Each box contains 25 pieces of the ESD cleaning sticks Sticky Swabs. These products are individually packaged to ensure cleanroom compliance and prevent cross-contamination. Ideal for applications where purity and ESD safety are top priorities.

Details

Head material Head material: PVAC
Head thickness Head thickness: 3.0 mm
ISO according to 14644-1 ISO according to 14644-1: 5
Swab length Swab length: 70 mm
Head width Head width: 3.0 mm
Stick width Stick width: 2.0 mm
Stick material Stick material: PVC
ESD ESD: no
Packaging type Packaging type: box
PU PU: 25 piece

Common

Cleanrooms are designed for special manufacturing procedures. Especially in the semiconductor manufacture particles in the surrounding air may cause lasting damage on circuits. In order to prevent such damage, the air has to be filtered constantly. In addition to the air purification, precautions should be taken to prevent that as few particles as possible get into the cleanroom. This is achieved by tools, cleaning sticks and also office supplies that are suitable for the use in cleanrooms. Of course, also surfaces such as working places, chairs and cleanroom clothes have to be abrasion-resistant.

Cleanroom clothes have to

prevent efficiently the particle release
protect the employee against high air speeds (draft effects)
provide a certain permeability for air and water steam
be antistatic or dissipative
be considered as comfortable to wear
consist of narrow-pore synthetic textiles

Work utilities (such as work material, consumables, furniture etc.) have to

be made of low-abrasion plastics
possess a fully closed surface to be cleaned easily and
according to cleanroom standards
individually packaged (consumables such as disposable gloves
cleaning wipes)

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
