Standard tool cut/bend for cutting and bending machine TP 6/PR-F

Name: Standard tool cut/bend for cutting and bending machine TP 6/PR-F
SKU: 415.191.420650
Price: 1541.10 CHF
Availability: InStock

ArticleNo: 415.191.420650

Standard tool cut/bend for cutting and bending machine TP 6/PR-F

dpvlink:

6028

Further product information

1,541.10 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

The standard cutting/bending tool from Olamef is specifically designed for the cutting and bending machine TP 6/PR-F and offers high flexibility and precision for technical operations in electronics manufacturing. It supports a tape hole pitch from 10.16 mm to 60.96 mm and can handle component body lengths up to a maximum of 50 mm. The tool's suitability extends to wire thicknesses from 0.5 mm to 0.8 mm and component diameters from 0.6 mm to 8 mm. Additionally, the tool allows a distance between the component body and bend of 1.2 mm, as well as a distance from bend to wire end between 6 mm and 12 mm.
These technical specifications ensure adaptable and precise handling of various component sizes and shapes, making it an indispensable instrument in the production of electronic components.

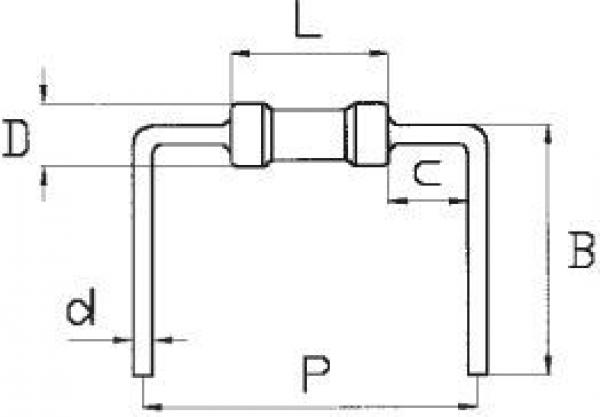

Details

Body diameter D Body diameter D: 0.6 - 8 mm
Component body length L Component body length L: 50 mm
Lead diameter d Lead diameter d: 0.6 - 0.9 mm
Measure bending / lead end B Measure bending / lead end B: 6 - 12 mm
Measure component's body / bending c Measure component's body / bending c: 1.2 mm
Tape pitch pattern P Tape pitch pattern P: 10.16 - 60.96 mm

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

Article image

Article description

Body diameter D

Component body length L

Lead diameter d

Measure bending / lead end B

Measure component's body / bending c

Tape pitch pattern P

Price

Compare

415.191.420650
Standard tool cut/bend for cutting and bending machine TP 6/PR-F

0.6 - 8 mm

50 mm

0.6 - 0.9 mm

6 - 12 mm

1.2 mm

10.16 - 60.96 mm

1,541.10 CHF

This product is compatible with (for example):

Cutting and bending machine TP6/PR-F/1...

TP 6, PR-F, 1 cutting and bending machine
for axial components wire thickness 0.5 - 0.9 mm
Basic machine ++ without processing tools ++
(Model 43.OL01 art. no....)
