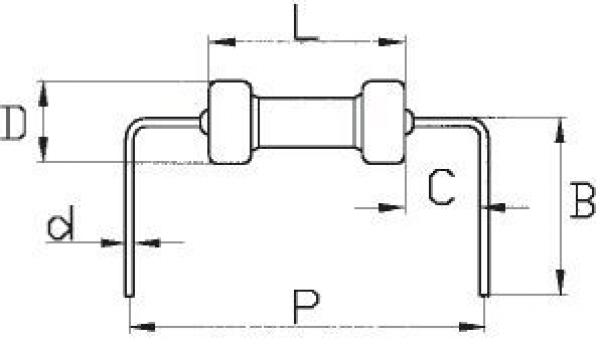

The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Preview: The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Preview: The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
(Product No.: 415.103.97)
The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Mobile Preview: The image shows a blue machine with a handle. It has a rotating axis and contains multiple spools. Attached to it is a series of small resistors, which are neatly arranged.
Mobile Preview: The image displays a technical drawing of a component with multiple dimensions (L, D, C, B, P, d). It features a central elevation with two lateral attachment arms.
Notice / Inquire

Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels

Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels

dpvlink:
5160
Further product information

2,380.15 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels

The cutting and bending machine TP 6/4.97, manufactured by Olamef, is specifically designed for processing axial components. With its robust construction, it allows for cutting and bending of taped components with connecting wires ranging from a diameter of 0.6 mm to 1.4 mm. The machine features reinforced bending wheels and a simplified bend angle adjustment, which significantly reduces setup times.
Technical specifications include a width of 180 mm, a height of 210 mm, and a length of 230 mm. The distance between the component body and the bend is 2.4 mm, while the distance between the bend and the wire end can vary between 5 mm and 13 mm. The diameter of the component body can range from 0.6 mm to 16 mm, and the tape hole pitch ranges from 10.16 mm to 60 mm. The machine processes up to 50,000 components per hour and weighs 5 kg.
This machine offers an efficient solution for technical requirements in production and is ideal for high throughput rates with consistent precision.
Body diameter D
Body diameter D
0.6 - 16 mm
Component body length L
Component body length L
50 mm
Lead diameter d
Lead diameter d
0.6 - 1.4 mm
Measure bending / lead end B
Measure bending / lead end B
5 - 13 mm
Measure component's body / bending c
Measure component's body / bending c
2.4 mm
Tape pitch pattern P
Tape pitch pattern P
10.16 - 60 mm
Components per hour
Components per hour
50,000
Height
Height
210 mm
Length
Length
230 mm
Width
Width
180 mm
Version
Version
reinforced bending wheels, simplified bending wheel adjustment
Weight
Weight
5.0 kg
Show accessories
Accessories

Accessories

The image shows a machine with metallic rollers processing a black roll with fine, parallel wires. Yellow bands hold the structure together.
Feeder / component body type 200240
Feeding / component body type 200240
for taped components
suitable for TP 6.EC / TP 6 / TP 6.97, TP6/PR-B,
TP6/PR-B/97, TP6/S
dpvlink
13342

442.25 CHF
Show product
The image shows a blue, cylindrical machine with a handle for turning. On the side, there are several small rollers and an adjustable pressure mechanism. It is presumably used for processing paper strips.
BR6 reel holder
BR6 reel holder
dpvlink
5524

164.30 CHF
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 10 feeding unit / loose components
CS 10 - feeding unit for loose components
for TP 6 + TP6/S + TP6/PR-B
(Model 51.0100 part number...)
dpvlink
5163

1,617.85 CHF
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 20 feeding unit / loose components
CS 20 - feeding unit for loose components
for TP 6/V-PR
(Model 51.0200 part number...)
dpvlink
5163

1,742.60 CHF
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 30 feeding unit / loose components
CS 30 - feeding unit for loose components
for TP/6V
(Model 51.0300 part number...)
dpvlink
5163

1,592.65 CHF
Show product
The image shows a machine for milling or cutting. It has two large rollers that rotate, and a long chute for the material. On the right side, there is an emergency stop button.
CS 40 feeding unit, loose components
CS 40 - feeding unit for loose components
for TP 6/PR F
(Model 51.0400 part number...)
dpvlink
5163

1,742.60 CHF
Show product
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M adjustable motor drive
MOT-98 adjustable motor 220V
for TP 6 + S + R + R CP + V + PR B
(Model 7915030 art. no....)
dpvlink
5523

2,216.35 CHF
Show product
The image shows a machine. On the right side, there is a black box with a red emergency stop button and various control knobs. On the left, metal rollers are visible.
M/1 adjustable motor drive
MOT-98/A adjustable motor 220V
for TP 6 / V - PR + TP 6 / PR - F
(Model 7915032 art. no....)
dpvlink
5523

2,278.10 CHF
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/1 waste tape ejector
RA waste tape ejector TNS/11
for TP 6 + TP 6 / S + TP 6 / R + TP/6V + TP6/PR-B
(Model 21.0011)
dpvlink
5525

477.30 CHF
Show product
The image shows a mechanical adhesive or labeling machine. It has metallic parts, rollers, and a platform through which a label passes. The machine is robust and designed for industrial use.
TNS/13 waste tape ejector
RA waste tape ejector TNS/13
for TP 6 / V PR
(Model 21.0013)
dpvlink
5525

477.30 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 515
Complete Catalog 2023 - 2024

Product Family

TP 6/4 • TP 6/4.97 reinforced bending wheels

Cutting and bending machine for axial components
The TP 6 cutting and bending machine can be used to cut and bend taped, axial components. The robust design of the machine guarantees a high level of reliability.
Components with connecting wires up to a diameter of 1.3 mm can be processed. A wide range of dimensions can be set quickly and easily.

The type 97 machine is also equipped with simplified bending adjustment, which significantly reduces set-up times.

Technical data:

Performance:

approx. 50,000 components/hour

Dimensions:

230 x 180 x 210 mm

Weight:

5 kg

TP 6/4 - reinforced bending wheels

  P B c L dD
 Min. mm 10.16 5 2.4 - 0.60.6
 Max. mm 60 13 - 50 1.416


Article image
Article description
Body diameter D
Component body length L
Lead diameter d
Measure bending / lead end B
Measure component's body / bending c
Tape pitch pattern P
Components per hour
Height
Length
Width
Version
Weight
Price
Compare
415.103 - Cutting and bending machine TP 6 / 4 - reinforced bending wheels
415.103
Cutting and bending machine TP 6 / 4 - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
reinforced bending wheels
5.0 kg
2,081.50 CHF
415.103.97 - Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
415.103.97
Cutting and bending machine TP 6 / 4.97 - reinforced bending wheels
0.6 - 16 mm
50 mm
0.6 - 1.4 mm
5 - 13 mm
2.4 mm
10.16 - 60 mm
50,000
210 mm
230 mm
180 mm
reinforced bending wheels, simplified bending wheel adjustment
5.0 kg
2,380.15 CHF
