Additional bending tool P = 5.08 mm for cutting and bending machine TP 6 / V
Additional bending tool P = 5.08 mm for cutting and bending machine TP 6 / V
The cutting and bending machine TP 6 / V from OLAMEF is specifically designed for processing taped axial components and allows for precise and reliable processing of connecting wires up to a diameter of 1.3 mm. This robustly constructed device offers flexible adjustment to various grid sizes through its fine-tuning using a knurled screw. The additional bending tool RM 5.08 mm enhances the functionality of the machine by being specially designed for vertical mounting and enabling precise processing. Technical Specifications:
- Capacity: approx. 50,000 components / hr.
- Dimensions: 230 x 180 x 210 mm
- Weight: 5 kg

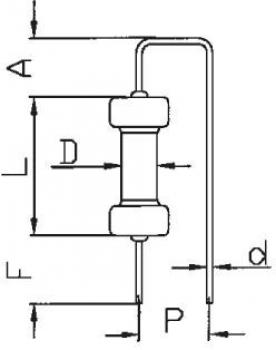

- Minimum and maximum dimensions for bending tool RM 5.08 mm:
- P (tape hole pitch): 5.08 mm
- L (fixed): 15 mm
- F: 8 mm
- D: 8 mm
- d: 0.8 mm
- A: 7 mm
Product Number: 415.435.V1
Category: Accessories for component processing machines
Keywords: Component processing - OLAMEF Series TP, Cutting/Bending Machines
Product Type: Accessories
The cutting and bending machine TP 6 / V from OLAMEF is specifically designed for processing taped axial components and allows for precise and reliable processing of connecting wires up to a diameter of 1.3 mm. This robustly constructed device offers flexible adjustment to various grid sizes through its fine-tuning using a knurled screw. The additional bending tool RM 5.08 mm enhances the functionality of the machine by being specially designed for vertical mounting and enabling precise processing. Technical Specifications:
- Capacity: approx. 50,000 components / hr.
- Dimensions: 230 x 180 x 210 mm
- Weight: 5 kg

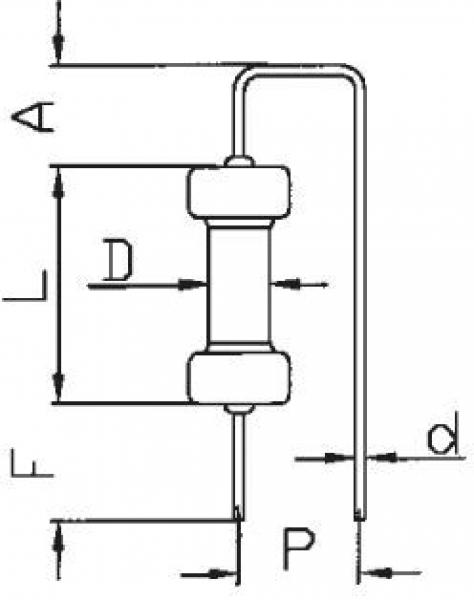

- Minimum and maximum dimensions for bending tool RM 5.08 mm:
- P (tape hole pitch): 5.08 mm
- L (fixed): 15 mm
- F: 8 mm
- D: 8 mm
- d: 0.8 mm
- A: 7 mm
Product Number: 415.435.V1
Category: Accessories for component processing machines
Keywords: Component processing - OLAMEF Series TP, Cutting/Bending Machines
Product Type: Accessories
Details
- Tape pitch pattern P Tape pitch pattern P
- 5.08 mm
