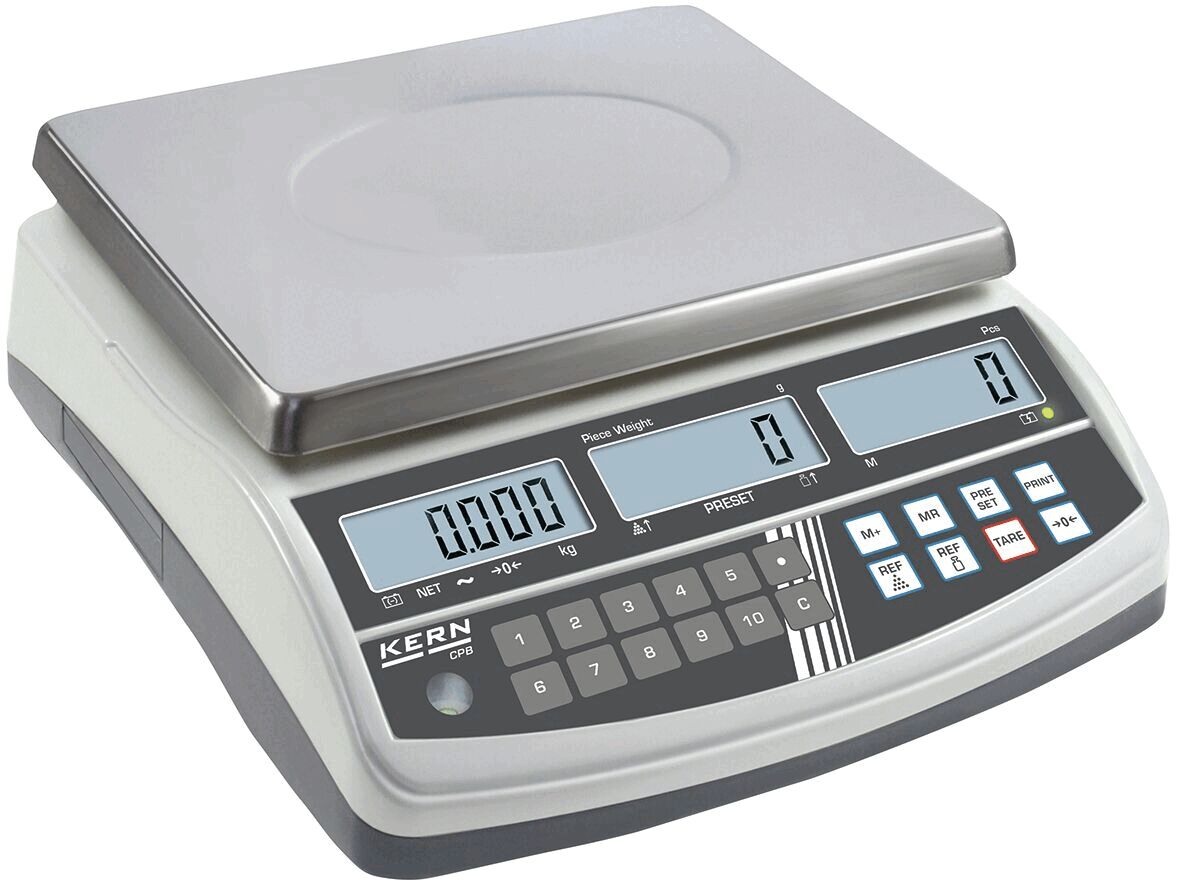

Counting balance KERN CPB-6K0.1N

(Product No.: 401.CPB-6K0.1N)

Counting balance KERN CPB-6K0.1N

Name: Counting balance KERN CPB-6K0.1N
SKU: 401.CPB-6K0.1N
Price: 369.60 CHF
Availability: InStock

ArticleNo: 401.CPB-6K0.1N

dpvlink:

8246

Readability [g]:

0.1

Repeatability [g]:

0.2

Weighing capacity [kg]:

Linearity [g]:

0.4

Min. weight [g]:

Properties:

Note:

-for DKD calibration certificate and rechargable battery see accessories-

Further product information

369.60 CHF

1 PCE

Compare

Notice

Product Info

Counting Scale KERN CPB-6K0.1N The KERN CPB-6K0.1N counting scale is a high-precision instrument ideally suited for counting components in industrial and commercial applications. With a counting resolution of up to 60,000 points and a readability of 0.1 g, this model offers exceptional accuracy. The scale features a programmable target piece count for checkweighing with an acoustic signal and automatic reference optimization to improve the average part weight. Technical Specifications: - Display: backlit LCD display, 3-level adjustable - Net weight: approx. 4.0 kg - Dimensions: 315 x 355 x 110 mm (WxDxH) - Weighing plate: 295 x 225 mm - Power supply: 230 V / 50 Hz or battery (optional) - Operating conditions: 0°C to +40°C - Reproducibility [g]: 0.2 - Linearity [g]: 0.4 - Min. weight [g]: 1 - Weighing range [kg]: 6 Please note that the delivery does not include a calibration certificate; this can be ordered separately if required. Item number: 401.CPB-6K0.1N

Details

Readability [g] Readability [g]: 0.1
Repeatability [g] Repeatability [g]: 0.2
Weighing capacity [kg] Weighing capacity [kg]: 6
Linearity [g] Linearity [g]: 0.4
Min. weight [g] Min. weight [g]: 1
Weighing plate [mm] Weighing plate [mm]: 295x225

-for DKD calibration certificate and rechargable battery see accessories-

Show accessories

Common

The brand KERN stands for precision and reliability. KERN is a specialist for accurate weighing having more than 160 years of experience. The products are of an excellent manufacturing quality, extremely robust and durable, and are characterized by an easy handling.

	Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required		Weighing units: Can be switched to e.g. nonmetric units. See balance mode.
	Data interface RS-232: To connect the balance to a printer, PC or network		Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value
	Memory: Balance memory capacity, e.g. for article data, weighing data, tare weights, PLU etc		Suspended weighing: Load support with hook on the underside of the balance
	GLP/ISO log: The balance displays serial number, user ID, weight, date and time, regardless of a printer connection		Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually
	GLP/ISO log: With weight, date and time. Only with KERN printers		Battery operation: Ready for battery operation. The battery type is specified for each device
	KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments		Rechargeable battery pack: Rechargeable set
	Piece counting: Reference quantities selectable. Display can be switched from piece to weight		Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB
	Recipe level A: The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed ou		Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB, USA
	Totalising level A: The weights of similar items can be added together and the total can be printed out		Weighing principle: Strain gauges Electrical resistor on an elastic deforming body
	Percentage determination: Determining the deviation in % from the target value (100 %)		KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort

Pictograms

Adjusting program CAL

Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required

RS-232

Data interface RS-232: To connect the balance to a printer, PC or network

KCP

KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems

Piece counting

Piece counting: Reference quantities selectable. Display can be switched from piece to weight

Totalising level A

Totalising level A: The weights of similar items can be added together and the total can be printed out

Weighing with tolerance range

Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model

Universal plug-in power supply A

Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB

Weighing principle

Weighing principle: Strain gauges Electrical resistor on an elastic deforming body
