Self-explanatory counting balance CKE 16K0.1
Self-explanatory counting balance CKE 16K0.1

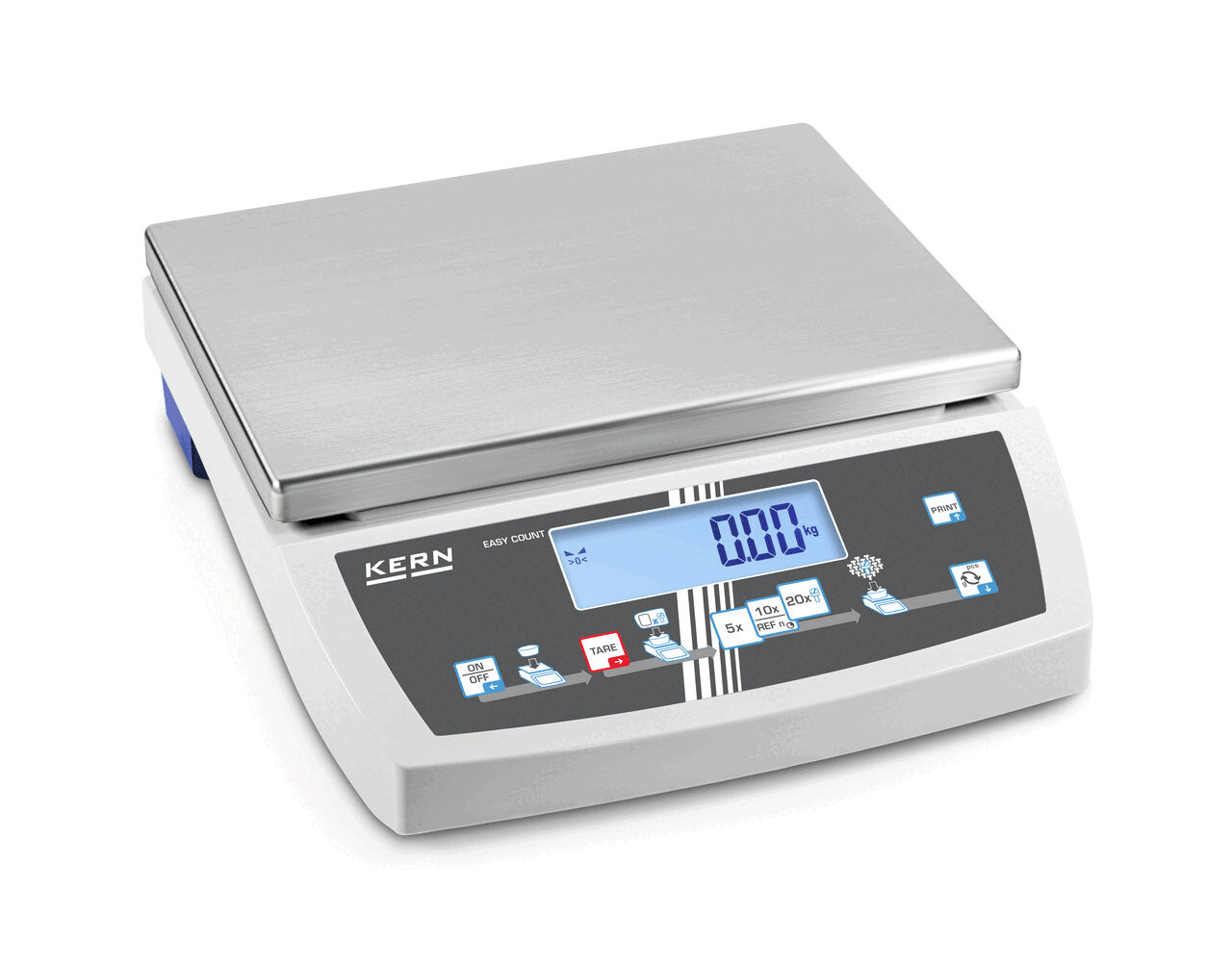

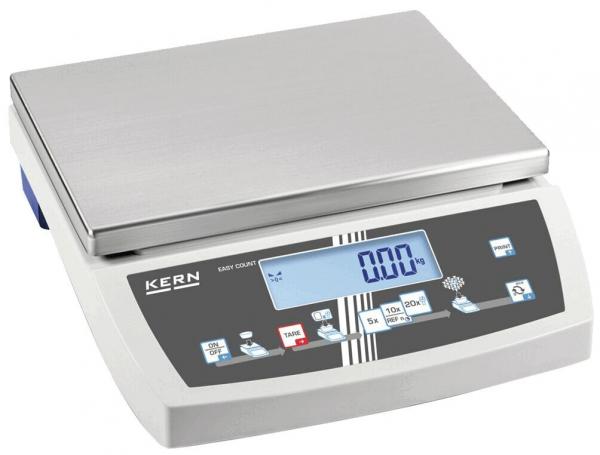

The self-explanatory counting scale CKE 16K0.1 from Kern, a renowned manufacturer with over 160 years of experience in precise weighing, is characterized by its high user-friendliness and robustness. The graphic-based control panel allows for intuitive use without extensive training and minimizes operational errors through a visualized workflow. The scale features a calibration program (CAL) for accuracy adjustment, requiring an external calibration weight.The functions include piece counting with selectable reference piece numbers and an automatic reference optimization that improves the average weight of the parts, as well as below-balance weighing. Power supply is standard via a power adapter (230 V / 50 Hz) or optionally via a rechargeable battery set, which offers an operating time of 50 hours.
Technically, the scale offers a backlit LCD display, readability and reproducibility of 0.1 g each, and a weighing range up to 16 kg with a linearity of 0.3 g. The robust weighing plate measures 340 x 240 mm. Note that delivery does not include a calibration certificate, but it can be optionally ordered.
Details
- Readability Readability
- 0.1 g
- Repeatability Repeatability
- 0.1 g
- Weighing capacity Weighing capacity
- 16 kg
- Linearity Linearity
- 0.3 g
- Min. weight Min. weight
- 1 g
- Weighing plate [mm] Weighing plate [mm]
- 340 x 240 mm
-for DKD calibration certificate and rechargable battery see accessories-
Show accessories
The brand KERN stands for precision and reliability. KERN is a specialist for accurate weighing having more than 160 years of experience. The products are of an excellent manufacturing quality, extremely robust and durable, and are characterized by an easy handling.
|
Adjusting program CAL: Adjusting program CAL: For quick setting up of the balance‘s accuracy. External adjusting weight required |
|
Weighing units: Can be switched to e.g. nonmetric units. See balance mode. |
|
Data interface RS-232: To connect the balance to a printer, PC or network |
 |
Hold function: (Animal weighing program) When the weighing conditions are unstable, a stable weight is calculated as an average value |
 |
Memory: Balance memory capacity, e.g. for article data, weighing data, tare weights, PLU etc |
|
Suspended weighing: Load support with hook on the underside of the balance |
 |
GLP/ISO log: The balance displays serial number, user ID, weight, date and time, regardless of a printer connection |
|
Weighing with tolerance range: (Checkweighing) Upper and lower limits can be programmed individually |
|
GLP/ISO log: With weight, date and time. Only with KERN printers |
|
Battery operation: Ready for battery operation. The battery type is specified for each device |
|
KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instruments |
 |
Rechargeable battery pack: Rechargeable set |
|
Piece counting: Reference quantities selectable. Display can be switched from piece to weight |
 |
Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB |
 |
Recipe level A: The weights of the recipe ingredients can be added together and the total weight of the recipe can be printed ou |
|
Universal plug-in power supply: with universal input and optional input socket adapters for EU, CH, GB, USA |
 |
Totalising level A: The weights of similar items can be added together and the total can be printed out |
|
Weighing principle: Strain gauges Electrical resistor on an elastic deforming body |
 |
Percentage determination: Determining the deviation in % from the target value (100 %) |
 |
KERN Universal Port (KUP) allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort |
Adjusting program CAL
Adjusting program CAL:
Adjusting program CAL:
For quick setting up of the balance‘s accuracy. External adjusting weight required
RS-232
Data interface RS-232:
To connect the balance to a printer, PC or network
GLP Printer
GLP/ISO log:
With weight, date and time. Only with KERN printers
KCP
KERN Communication Protocol (KCP):
It is a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems
Piece counting
Piece counting:
Reference quantities selectable. Display can be switched from piece to weight
Weighing units
Weighing units:
Can be switched to e.g. nonmetric units. See balance mode.
Suspended weighing
Suspended weighing:
Load support with hook on the underside of the balance
Weighing with tolerance range
Weighing with tolerance range:
(Checkweighing) Upper and lower limits can be programmed individually, e.g. for sorting and dosing. The process is supported by an audible or visual signal, see the relevant model
Battery operation
Battery operation:
Ready for battery operation. The battery type is specified for each device
Universal plug-in power supply B
Universal plug-in power supply:
with universal input and optional input socket adapters for EU, CH, GB, USA
Weighing principle
Weighing principle: Strain gauges
Electrical resistor on an elastic deforming body
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
Article image
Article description
Readability
Repeatability
Weighing capacity
Linearity
Min. weight
Price
Compare
0.05 g
0.05 g
8 kg
0.15 g
0.5 g
