BR 3/15 tape guide for cutting machine TC 4

Name: BR 3/15 tape guide for cutting machine TC 4
SKU: 415.912
Price: 561.90 CHF
Availability: InStock

ArticleNo: 415.912

dpvlink:

5335

Further product information

561.90 CHF

1 PCE

Compare

Notice

Product Info

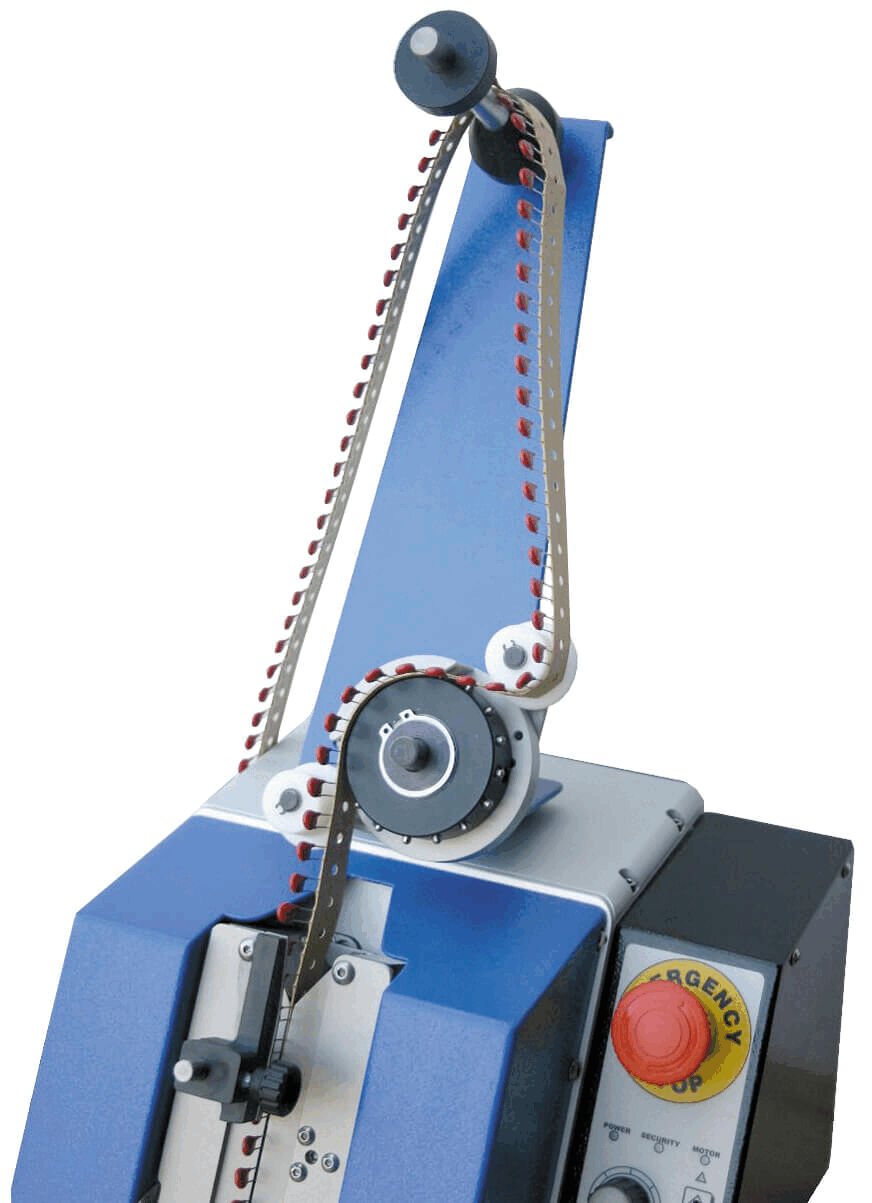

BR 3/15 - Belt Guide for Cutting Machine TP / TC 4
The BR 3/15 belt guide is an efficient accessory for the cutting machine TP / TC 4, specifically designed for the processing of belted radial components. It allows for precise machining with a belt hole pitch of 15 mm. This accessory enhances the machine's capability to handle belted components quickly and easily, significantly increasing productivity. The robust construction of the cutting machine, along with the belt guide, ensures reliable and long-lasting operation. The processing speed is continuously adjustable, and the cutting length can be precisely set via the adjustable guide. Technical Data:
- Capacity: approx. 15,000 components / hr.
- Dimensions: 200 x 470 x 270 mm
- Weight: 12 kg
- Motor: 220 V / 50 Hz - 50 VA

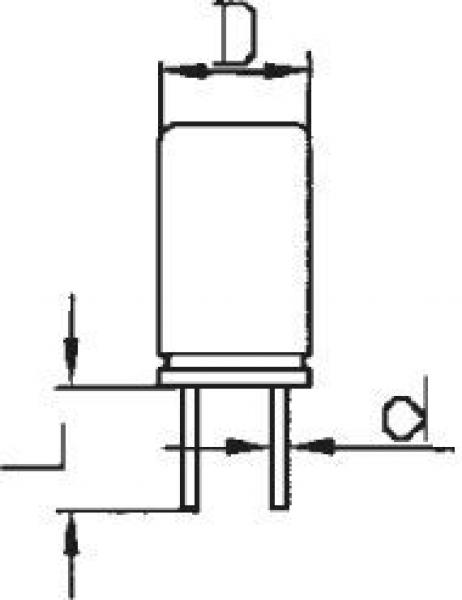

- Min. component size: Length 3 mm, Diameter 0.4 mm, Thickness 1 mm
- Max. component size: Length 12 mm, Diameter 0.8 mm, Thickness 15 mm
Part number: 415.912
Product type: Accessory
