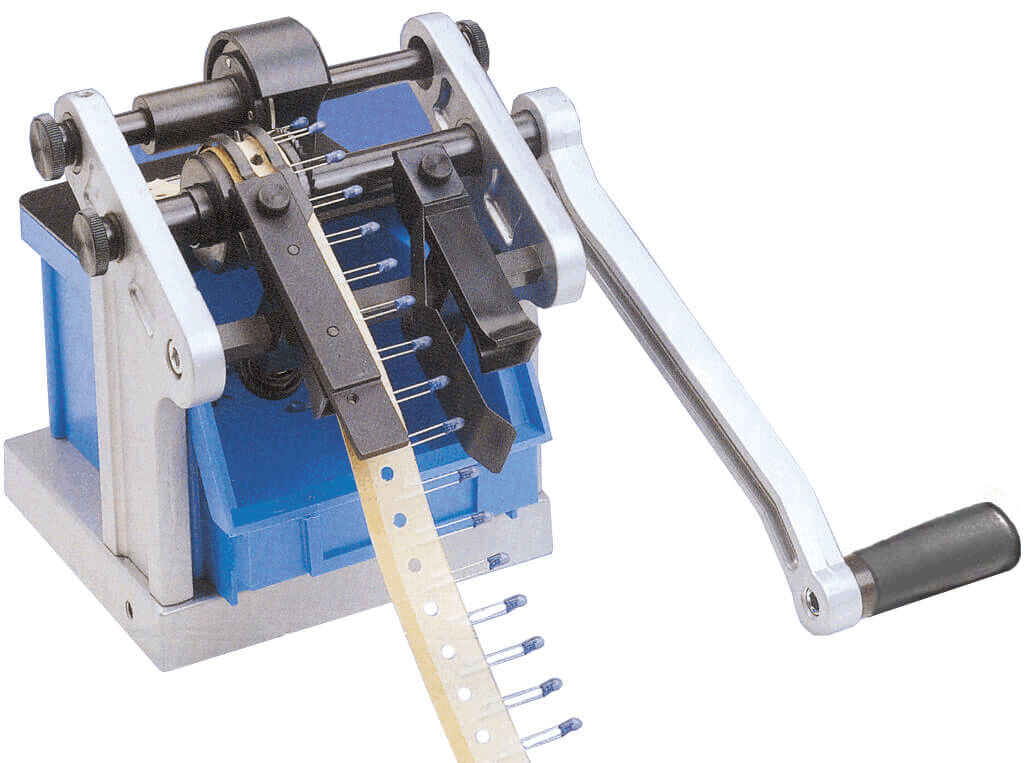

Cutting device VARIOCUT, belt hole pitch 12.7 mm
The cutting device for radially belted components with a belt hole pitch of 12.7 mm enables precise cutting without the need for re-cutting of connection wires after soldering. This model is based on the CUTBEND principle and offers high performance along with easy handling. Due to its compact design, it is handy and can be easily mounted on any table with the included clamp.
Technical Specifications:
- Dimensions without crank: 175 x 145 x 160 mm (LxWxH)
- Crank length: 160 mm
- Weight: 1.9 kg
- Performance: up to 40,000 components per hour
- Processing dimensions for head type 12.7: 0.5-0.8 mm (A), max. 35 mm (B), 1.0-8.0 mm (C), 12.7 mm (D)
- Processing dimensions for head type 15.0: 0.5-0.8 mm (A), max. 35 mm (B), 1.0-8.0 mm (C), 15.0 mm (D)
Item number: 405.500
The high efficiency and affordable price make this cutting device an ideal solution for processing components in electronics manufacturing.
Details
- Tape pitch pattern P
Tape pitch pattern P
- 12.7 mm
