County EVO, counting device 100 - 240 V / 50-60 Hz
(Product No.: 400.011)
The image shows a counting and verifying device for banknotes. It has a blue base, a digital display, and buttons. There is a black insertion device for bills at the top.
The image shows a device with a black top part and a blue base. Below, two round rollers are visible. On the side, there are several green and white switches or buttons.
Mobile Preview: The image shows a counting and verifying device for banknotes. It has a blue base, a digital display, and buttons. There is a black insertion device for bills at the top.
Mobile Preview: The image shows a device with a black top part and a blue base. Below, two round rollers are visible. On the side, there are several green and white switches or buttons.
Notice / Inquire

County EVO, counting device 100 - 240 V / 50-60 Hz

dpvlink:
5067
Further product information

938.70 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

County EVO, counting device 100 - 240 V / 50-60 Hz

The County EVO counter is an advanced component counting device suitable for axial, radial, and SMD components. It operates on a voltage of 100 - 240 V and a frequency of 50-60 Hz. This device is distinguished by its ability to count components in both directions and offers a division factor from 1 to 19, with special multiplication factors available for smaller SMD components like 0402, 0201, and 01005.
The width of the device is 130 mm, the height 110 mm, and the depth 240 mm, with a weight of 1.8 kg. It can handle tape widths from 55 to 110 mm for axial and 18 mm for radial components. The minimum diameter of the conductors is 0.4 mm.
Additional features include total piece count recording, piece count preset with an acoustic signal upon reaching the preset quantity, a calibration test, self-diagnosis, and a memory for the last counted quantity. The model 400.013 additionally offers a battery, connections for barcode readers, and printer/PC output, a clock, and a datalogger for the last 500 counts.
Axial tape width
Axial tape width
55 - 110 mm
Depth
Depth
240 mm
Height
Height
110 mm
Radial tape width
Radial tape width
18 mm
Width
Width
130 mm
Weight
Weight
1.8 kg
Show accessories
Accessories

Accessories

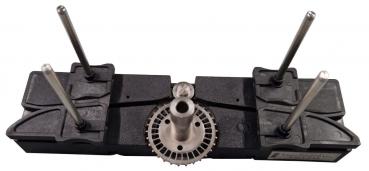

The image displays a black, rectangular component with two side arches. It features three metallic pins protruding vertically, as well as a central recess.
Adapter for taped SMD components for County...
SMD adapter for taped SMD components
Mod. 8301.018
dpvlink
5067

218.00 CHF
Show product
The image shows a device with a large, round cardboard disc mounted on a blue stand. Next to the disc is a digital control panel with buttons.
Reel stand for axial/radial components for...
Reel stand for axial/radial components
Mod. 8301.023
dpvlink
5067

218.00 CHF
Show product
The image shows a physical experiment apparatus. It has a large, round wooden wheel on a stable blue base, with a digital display and buttons for control.
Handle for reels for County EVO
Hand crank for rolls (axial/radial)
for reel stand 400.023
dpvlink
5067

36.55 CHF
Show product
The image shows a blue spinner that stands on a wide, round base. In the center, there is a black, raised handle or pin used for spinning.
Unroll stand for SMD components for County...
SMD unroll holder
Mod. 8301.028
dpvlink
5067

98.30 CHF
Show product
The image shows a black L-shaped handle used for turning or cranking. The handle has a smooth surface and a round opening at one end.
Crank for SMD reel stand for County EVO
Hand crank for SMD reel stand
dpvlink
5067

26.45 CHF
Show product
The image shows a white label printer with a glossy lid and a green button. Next to it is a roll of white labels that is being unrolled.
Thermal printer
Thermal printer for County EVO + County-S EVO
Model 8301.095
Serial no.: ………………………………..

(suitable for County EVO model 8301.082 and County S EVO model 8301.131 / model. 8301.133)
dpvlink
19245

837.20 CHF
Show product
The image shows an electronic measuring station with a display, connected to two plates and a printer. A hand is holding a barcode scanner.
Label roll
Label roll with 1360 labels 57 x 51 mm
Model 8301.096


(suitable for thermal printer article no. 400.095 / model 8301.095)
dpvlink
19245

36.10 CHF
Show product
The image shows a blue device with two round discs on top and a printer next to it. A hand is holding a barcode scanner. The device has a display and buttons for operation.
Barcode reader
Bar code reader for County EVO + S EVO
Model 8301.155
Serial no.: ………………………………..
dpvlink
19245

379.00 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 521
Complete Catalog 2023 - 2024

Product Family

County EVO

Component counting device for axial, radial and SMD components

Technical data:

min. leads Ø:

0.4 mm

Tape width axial:

55 - 110 mm

Tape width radial:

18 mm

max. component Ø:

14 mm

Display 4-line:

height 13 mm

Dimensions:

240 x 130 x 110 mm

Weight:

1.8 kg


Article image
Article description
Axial tape width
Depth
Height
Radial tape width
Width
Weight
Price
Compare
400.011 - County EVO, counting device 100 - 240 V / 50-60 Hz
400.011
County EVO, counting device 100 - 240 V / 50-60 Hz
55 - 110 mm
240 mm
110 mm
18 mm
130 mm
1.8 kg
938.70 CHF
400.013 - County EVO, counting device 220 V / 50-60 Hz
400.013
County EVO, counting device 220 V / 50-60 Hz
55 - 110 mm
240 mm
110 mm
18 mm
130 mm
1.8 kg
1,127.70 CHF
400.020 - Adapter for taped SMD components for County EVO
400.020
Adapter for taped SMD components for County EVO






218.00 CHF
400.023 - Reel stand for axial/radial components for County EVO
400.023
Reel stand for axial/radial components for County EVO






218.00 CHF
400.027 - Unroll stand for SMD components for County EVO
400.027
Unroll stand for SMD components for County EVO






98.30 CHF
400.027.1 - Crank for SMD reel stand for County EVO
400.027.1
Crank for SMD reel stand for County EVO






26.45 CHF
400.025 - Handle for reels for County EVO
400.025
Handle for reels for County EVO






36.55 CHF
