DC1120 Digital dispenser - max. 2 bar
(Product No.: DC1120)
The image shows a green device with a digital display. It has a large dial, a pressure gauge, and several buttons and indicators for setting dosing times and mode.
The image shows a green device with a digital display, a pressure gauge, several buttons, and a rotary control. It is likely used for dosing or controlling a process.
The image displays a device with a rectangular casing. It has several connections: a power plug on top, hoses, and a container on the left side that holds a liquid.
Mobile Preview: The image shows a green device with a digital display. It has a large dial, a pressure gauge, and several buttons and indicators for setting dosing times and mode.
Mobile Preview: The image shows a green device with a digital display, a pressure gauge, several buttons, and a rotary control. It is likely used for dosing or controlling a process.
Mobile Preview: The image displays a device with a rectangular casing. It has several connections: a power plug on top, hoses, and a container on the left side that holds a liquid.
Notice

DC1120 Digital dispenser - max. 2 bar

DC1120 Digital dispenser - max. 2 bar

dpvlink:
25115
Compressed air output:
0,08 - 2 bar
Further product information

1,432.60 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

DC1120 Digital dispenser - max. 2 bar

The DC1100 dispenser series ist available in different versions differing in the height of the maximal dosing pressure. is designed to control precisely the pneumatically controlled dosing cycles, like e.g. dosing cycles of 3 – 55 cc small cartridges. The used precision pressure regulator allows adjusting exactly the pressure on the material in the cartridge. The calibration of the vacuum retention is shown on the dislay. The digital pressure control including display of the input pressure increases the process reliability.


Technical data:
Dimensions: 260 x 75 x 220 mm (W x H x D)
Weight:1.5 kg
Dosing time: 0.01 - 999 Sekunden
Input voltage: 85-264 V AC
Working voltage:24 V DC (incl. foot switch)
Compressed air input: up to 7 bar (display: digital)
Compressed air outlet: 0.08 - 6 bar
Vacuum retention:
  • digital display of all pressures
  • display as numeric value and level indicator
  • 3-digit without unit
Display:128 x 64 Pixel
Programs:8 program channels

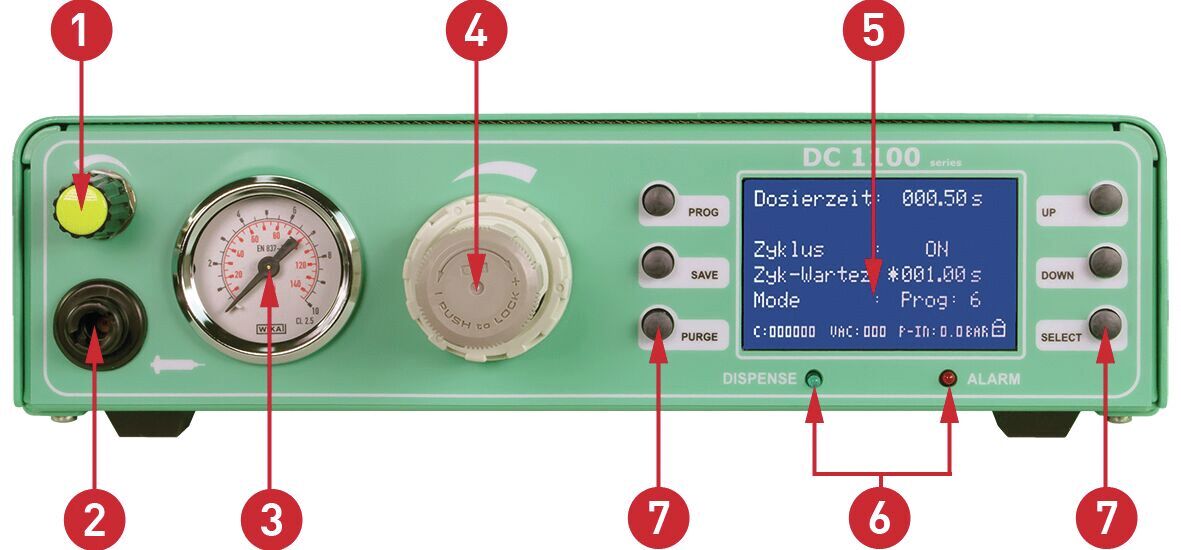

  1. Vacuum retention
  2. Compressed air outlet
  3. Pressure gauge for compressed air outlet
  4. Precision pressure regulator
  5. Display
  6. Status LEDs
  7. Operating keys

Compressed air output
Compressed air output
0,08 - 2 bar
Input voltage
Input voltage
85 - 264 V/AC
Working voltage
Working voltage
24 V/DC
Height [mm]
Height
75 mm
Length
Length
220 mm
Width [mm]
Width
260 mm
Compressed air input
Compressed air input
5 - 7 bar
Dispensing method
Dispensing method
manuel / time-controlled
Time range
Time range
0.01 - 999 s
Weight
Weight
1.5 kg
Show accessories
Accessories

Spares

The image shows an infusion connection with a green valve and a transparent tube running in a straight line. The tube ends in a black connector.
Cartrige adapter 55/30 cc
Cartridge adapter 55/30cc, complete, series 8000
with 1.0 m hose, for 55/30cc cartridge
Pu = 1 piece ++ system A++
dpvlink
22259

37.70 CHF
The image shows a flat, clear plastic bottle with a round shape. The top part has a screw cap that features a grid-like opening from which the contents can be dispensed.
Cartridges "transparent" 30cc
Cartridge series 8000 transparent (PP) 30cc
for UV-resistant applications
Length 18 mm, external diameter 25.4 mm
dpvlink
22240

1.45 CHF
The image depicts a brightly green, hemispherical plastic container. The inside is smooth, with a small hole in the center and a sturdy shape.
Plug Smooth-Flow green 55/30cc
Plug Smooth Flow green 30/55cc, series 8000
dpvlink
22279

1.10 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 535
Complete Catalog 2023 - 2024

Product Family


This product is compatible with (for example):

The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 15 / amber
internal diameter 1.60 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 21 / purple
internal diameter 0.51 mm, length 6.35 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 21 / purple
internal diameter 0.51 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 21 / purple
internal diameter 0.51 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 21 / purple
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread
size 21 / purple
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 22 / blue
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 22 / blue
internal diameter 0.51 mm, length 6.35 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 22 / blue
internal diameter 0.51 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 22 / blue
internal diameter 0.41 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 22 / blue
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread
size 22 / blue
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 27 / clear
internal diameter 0.20 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 27 / clear
internal diameter 0.20 mm, length 6.35 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 27 / clear
internal diameter 0.20 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 27 / clear
internal diameter 0.20 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 21 / purple
internal diameter 0.51 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread
size 20 / pink
internal diameter 0.58 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 15 / amber
internal diameter 1.37 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 15 / amber
internal diameter 1.37 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90 with thread
size 15 / amber
internal diameter 1.^37 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 18 / green
internal diameter 0.84 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 18 / green
internal diameter 0.84 mm, length 6.35 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 18 / green
internal diameter 0.84 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 18 / green
internal diameter 0.84 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 18 / green
internal diameter 0.84 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a screwdriver with a red handle and a long, narrow metallic shaft that is slightly bent. The handle is ergonomically shaped and has vertical grooves.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 18 / green
internal diameter 0.84 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8689

1.55 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread
size 18 / green
internal diameter 0.84 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 20 / pink
internal diameter 0.58 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 20 / pink
internal diameter 0.58 mm, length 6.35 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 20 / pink
internal diameter 0.58 mm, length 25.4 mm / 1 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 20 / pink
internal diameter 0.58 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 20 / pink
internal diameter 0.58 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 27 / clear
internal diameter 0.20 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread
size 27 / clear
internal diameter 0.20 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a green, round-shaped object made of flexible material. It has a wide, open top area and a curved, outwardly bulging shape.
Plug Smooth-Flow green 5cc
Plug Smooth Flow green 5cc, series 8000
dpvlink
22279

0.45 CHF
The image shows a green, smooth container with a curved design. It has a wide opening at the top and narrows down towards the bottom. The surface feels smooth and shiny.
Plug Smooth-Flow green 10cc
Plug Smooth Flow green 10cc, series 8000
dpvlink
22279

0.65 CHF
The image displays a green, rounded plastic item with lateral notches. It has a flat bottom and appears to be a holder or clip, likely used for securing objects.
Upper end cap 3cc cartridge
Upper end cap 3cc cartridge series 8000
dpvlink
22284

0.50 CHF
The image shows a small, light green plastic clip. It has a round, raised part in the middle and two elongated, curved holders on the sides.
Upper end cap 5cc cartridge
Upper end cap 5cc cartridge series 8000
dpvlink
22284

0.50 CHF
The image shows a green plastic clip. It has a round pin or button center and two lateral notches that provide stability.
Upper end cap 10cc cartridge
Upper end cap 10cc cartridge series 8000
dpvlink
22284

0.55 CHF
The image displays a green, rounded plastic item with lateral notches. It has a flat bottom and appears to be a holder or clip, likely used for securing objects.
Upper end cap 33/55cc cartridge
Upper end cap 30/55cc cartridge series 8000
dpvlink
22284

0.55 CHF
It is a green plastic cap. It is round, has a wavy edge, and a smooth surface in the center. The color is bright and striking.
Needle cap
Needle cap cartridge series 8000
suitable for 3 - 55cc cartridges
dpvlink
22284

0.25 CHF
The image shows a transparent hose that ends with a green plastic connector and a black plug. The hose is flexible and has an elongated shape.
Cartrige adapter 10 cc
Cartridge adapter 10cc, series 8000
complete with 1.0 m hose, for 10cc cartridge
PU = 1 piece
dpvlink
22259

36.65 CHF
The image shows a green connector with a hose. The hose is transparent, thin, and curved. The connector has a clip and a black connection at the end of the hose.
Cartrige adapter 5 cc
Cartridge adapter 5cc, series 8000
complete with 1.0 m hose, for 5cc cartridge
PU = 1 piece
dpvlink
22259

36.65 CHF
The image displays a piece of medical equipment: a flexible, transparent tube with a green valve in the middle and a black connector at the end.
Cartridge adapter 3cc
Cartridge adapter 3cc, series 8000
complete with 1.0 m hose, for 3cc cartridge
PU = 1 piece
dpvlink
22259

36.65 CHF
The image shows a green, plastic part with a round base and a central tube. It has a seal made of black rubber and an inscription "VIEWEG" on the top.
Adapter head for 55/33cc cartridge
Adapter head for 55/30cc, series 8000
incl. O-ring, spare part, PU = 1 piece
dpvlink
22274

26.90 CHF
The image shows a green plastic part with a round, dense center and an upward-facing hose connection. It has a specially shaped base with lateral bulges.
Adapter head for 10cc cartridge
Adapter head for 55/10cc, series 8000
incl. O-ring, spare part, PU = 1 piece
dpvlink
22274

26.90 CHF
The image shows a small, green plastic adapter with a thin spout on top. It has a round base with a rubber seal and two lateral, rounded bulges.
Adapter head for 5cc cartridge
Adapter head for 5cc, series 8000
incl. O-ring, spare part, PU = 1 piece
dpvlink
22274

26.90 CHF
The image shows a green, plastic-like component with a short, upright tube. It has a wide base with a rubberized seal and two lateral bulges.
Adapter head for 3cc cartridge
Adapter head for 3cc, series 8000
incl. O-ring, spare part, PU = 1 piece
dpvlink
22274

26.90 CHF
The image shows a white plastic clip in an asymmetrical shape. It has two openings and appears sturdy. The surface is smooth and slightly shiny.
Safety clip for cartridge adapter
Safety clip cartridge adapter series 8000
Spare part
dpvlink
22306

3.45 CHF
The image shows a flexible, green rubber ring with a wavy, asymmetrical shape. It has a smooth surface and is made from soft material that is easy to grip.
Plug Smooth-Flow green 3cc
Plug Smooth Flow green 3cc, series 8000
dpvlink
22279

0.50 CHF
The image displays a long, cylindrical object made of metal. It has a smooth, shiny surface and is open at both ends. The shape is consistent and uniform.
Adapter hose for cartridge adapter heads
Tube 1 meter, series 8000
Ø 4/2 mm, polyvinyl, spare part
for cartridge adapter series 8000
dpvlink
22294

2.15 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle 90° with thread
size 32 / yellow
internal diameter 0.11 mm, length 6.36 mm / 0.25 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

1.45 CHF
The image shows the end of a white, transparent container. It has a round opening and a rotating mechanism, presumably used for dispensing content.
Cartridges "transparent" 3cc
Cartridge series 8000 transparent (PP) 3cc
for UV-resistant applications
Length 75 mm, external diameter 11.5 mm
dpvlink
22240

0.80 CHF
The image shows the top part of a clear plastic bottle with a narrow spout. The cap has a round, wavy structure and a small slot in the center.
Cartridges "transparent" 5cc
Cartridge series 8000 transparent (PP) 5cc
for UV-resistant applications
Length 71 mm, external diameter 14.6 mm
dpvlink
22240

0.75 CHF
The image shows the upper part of a transparent plastic bottle. The neck of the bottle has a screw thread, and the opening is equipped with a thin, round attachment.
Cartridges "transparent" 10cc
Cartridge series 8000 transparent (PP) 10cc
for UV-resistant applications
Length 91 mm, external diameter 18.7 mm
dpvlink
22240

1.05 CHF
The image depicts a clear, cylindrical glass tube with an open end and a wide base. It is elongated and features a smooth, transparent body.
Cartridges "transparent" 55cc
Cartridge series 8000 transparent (PP) 55cc
for UV-resistant applications
Length 175 mm, external diameter 26.0 mm
dpvlink
22240

2.60 CHF
The image shows an orange marker. The body of the marker is elongated and has a smooth surface. The tip is round and also orange, with an opening in the middle.
Cartridges "amber" 3cc
Cartridge series 8000 amber (PP) 3cc
for UV protection up to 520 NM
Length 75 mm, external diameter 11.5 mm
dpvlink
22246

1.05 CHF
The image shows the end of an orange marker. The surface is smooth and glossy. The marker has a round shape with a sturdy, slightly curved end.
Cartridges "amber" 5cc
Cartridge series 8000 amber (PP) 5cc
for UV protection up to 520 NM
Length 71 mm, external diameter 14.6 mm
dpvlink
22246

1.10 CHF
The image shows the upper part of an orange bottle. It has a round shape and a narrow, open neck that tapers slightly at the top.
Cartridges "amber" 10cc
Cartridge series 8000 amber (PP) 10cc
for UV protection up to 520 NM
Length 91 mm, external diameter 18.7 mm
dpvlink
22246

1.15 CHF
The image shows an orange, round container with a straight neck. The neck is hollow and has an opening that tapers towards the end. The surface is smooth and shiny.
Cartridges "amber" 30cc
Cartridge series 8000 amber (PP) 30cc
for UV protection up to 520 NM
Length 118 mm, external diameter 25.4 mm
dpvlink
22246

1.70 CHF
The image shows a long, cylindrical object in bright orange. It has an opening at one end and a carefully shaped edge on the other side.
Cartridges "amber" 55cc
Cartridge series 8000 amber (PP) 55cc
for UV protection up to 520 NM
Length 75 mm, external diameter 11.5 mm
dpvlink
22246

2.75 CHF
The image shows a black, cylindrical object with a slightly raised edge. At one end, there is a round opening that is hollow inside. The surface is smooth and shiny.
Cartridges "black" 3cc
Cartridge series 8000 black (PP) 3cc
opaque, for UV applications
Length 75 mm, external diameter 11.5 mm
dpvlink
22252

1.05 CHF
The image shows the end of a black, cylindrical object. The surface is smooth, with an open hole in the center, surrounded by a round shape.
Cartridges "black" 5cc
Cartridge series 8000 black (PP) 5cc
opaque, for UV applications
Length 71 mm, external diameter 14.6 mm
dpvlink
22252

1.10 CHF
The image shows a black plastic part with a round end and an inner hole. The surface is slightly shiny and has a smooth texture. It appears to be a tube or a connector.
Cartridges "black" 10cc
Cartridge series 8000 black (PP) 10cc
opaque, for UV applications
Length 91 mm, external diameter 18.7 mm
dpvlink
22252

1.15 CHF
The image shows a cylindrical, long metal object that is painted black. One end has a connector, while the other end is flat and features a mount.
Cartridges "black" 30cc
Cartridge series 8000 black (PP) 30cc
opaque, for UV applications
Length 118 mm, external diameter 25.4 mm
dpvlink
22252

1.70 CHF
The image shows a black cylindrical object with a wide end and a narrow, hollow output. The surface is smooth and shiny, giving it a modern appearance.
Cartridges "black" 55cc
Cartridge series 8000 black (PP) 55cc
opaque, for UV applications
Length 175 mm, external diameter 26.0 mm
dpvlink
22252

2.75 CHF
The image shows a black cylinder with a wide top edge and a conical shape tapering downwards. The surface is smooth and shiny. The top of the cylinder is flat.
Plug "Neoprene"
Plug neoprene black
for 80cc / 55cc / 30cc cartridges
PU = 20 pieces ++System A++
dpvlink
2854

1.70 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 15 / amber
internal diameter 1.37 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows an elongated, cylindrical object made of white plastic. It has a larger flat surface at one end and a smaller, round outlet at the other end.
Cartridges "transparent" 5cc
Cartridge transparent (PP) 5cc
PU = 10 pcs ++ system A++
dpvlink
2714

0.80 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Buna" for cartridge 10cc...
O-ring Buna black
for 10 cc cartridge
PU = 1 piece ++ system A++
dpvlink
2882

1.00 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Viton" for cartridge 10cc...
O-ring Viton; for aggressive liquids
for 10 cc cartridge
PU = 1 piece ++ system A++
dpvlink
2887

2.20 CHF
The image shows a gray syringe with a long, thin needle. The syringe has a wide front end and a narrow, straight needle attachment. It is depicted in a simplified manner.
Dispensing needle standard without thread...
Dispensing needle standard 0.58 mm / yellow
Diameter 0.58 mm / yellow, length 25.4 mm
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
2915

1.20 CHF
The image shows a gray syringe with a long, thin needle. The syringe has a wide front end and a narrow, straight needle attachment. It is depicted in a simplified manner.
Dispensing needle standard without thread...
Dispensing needle standard 0.41 mm / blue
Diameter 0.41 mm / blue, length 12.5 mm
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
2913

0.70 CHF
The image shows a gray syringe with a long, thin needle. The syringe has a wide front end and a narrow, straight needle attachment. It is depicted in a simplified manner.
Dispensing needle standard without thread...
Dispensing needle standard 0.41 mm / black
Diameter 0.41 mm/blue, length 25.4 mm
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
2915

1.20 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 15 length...
Dispensing needle PP flexible with thread,
length 38 mm
Size 15 / amber / internal diameter 1.24 mm
PU = 50 pieces
dpvlink
2969

1.80 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 15 length...
Dispensing needle PP flexible with thread
length 12.5 mm
Size 15 / amber / internal diameter 1.24 mm
PU = 50 pieces
dpvlink
2969

1.75 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 18 length...
Dispensing needle PP flexible with thread
length 38 mm
Size 18 / brown / internal diameter 0.81 mm
PU = 50 pieces
dpvlink
2969

1.80 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 18 length...
Dispensing needle PP flexible with thread
length 12.5 mm
Size 18 / green / internal diameter 0.81 mm
PU = 50 pieces
dpvlink
2969

1.75 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 20 length...
Dispensing needle PP flexible with thread
length 38 mm
Size 20 / pink / internal diameter 0.58 mm
PU = 50 pieces
dpvlink
2969

1.80 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 20 length...
Dispensing needle PP flexible with thread
length 12.5 mm
Size 20 / pink / internal diameter 0.58 mm
PU = 50 pieces
dpvlink
2969

1.75 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 25 length...
Dispensing needle PP flexible with thread
length 38 mm
Size 25 / red / internal diameter 0.36 mm
PU = 50 pieces
dpvlink
2969

1.80 CHF
The image shows a screwdriver. It has a long, thin, straight handle in brown and a slender, tapered metallic blade. The screwdriver is oriented horizontally.
Dispensing needle flexible size 25 length...
Dispensing needle PP flexible with thread
length 12.5 mm
Size 25 / red / internal diameter 0.36 mm
PU = 50 pieces
dpvlink
2969

1.75 CHF
The image depicts a stylized, symmetrical shape with curved sides that are wider at the top and taper towards the bottom. It resembles a vase or a container. The background is dark.
Plug "PE" 55cc/30cc
Plug PE white
for 55 cc / 30 cc cartridge
PU = 10 pieces ++ system A++
dpvlink
2865

1.15 CHF
The image shows a transparent, tubular plastic part with pronounced, round protrusions on the outside. It has a hollow interior. The surface is smooth and slightly textured.
Hose clamp, plastic EFD type
Hose clamp plastic EFD type
for attaching the compressed air hose to the
cartridge adapter, filter and connector
PU = 1 piece
dpvlink
2905

1.20 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Viton" for cartridge 3cc...
O-ring Viton; for aggressive liquids
for cc 3 cartridge
PU = 10 pieces ++ system A++
dpvlink
2887

1.90 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Buna" for cartridge 3cc...
O-ring buna black
for cc 3 cartridge
PU = 10 pieces ++ system A++
dpvlink
2882

0.80 CHF
The image shows a schematic representation of a cylindrical shape with a wide top and a textured, rotatable middle. The bottom has an opening or valve.
Cartridges "black" 5cc
Cartridge black (PP) 5cc
for UV applications
PU = 10 pcs. ++ system A++
dpvlink
2742

1.15 CHF
The image shows an elongated, cylindrical object made of white plastic. It has a larger flat surface at one end and a smaller, round outlet at the other end.
Cartridges "transparent" 30cc
Cartridge transparent (PP) 30cc
PU = 10 pieces ++ system A++
dpvlink
2714

1.55 CHF
The image shows a vertical, slender column, topped and bottomed with a circle. The column has two parallel lines located in the center.
Hand piston 30cc
Hand piston for 30cc cartridge
(suitable for plug "Neopren")
PU = 10 pieces ++ system A++
dpvlink
8705

1.10 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Buna" for cartridge5cc
O-ring Buna black
for 5 cc cartridge
PU = 10 pieces ++ system A++
dpvlink
2882

0.90 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Viton" for cartridge 5cc...
O-ring Viton; for aggressive liquids
for 5 cc cartridge
PU = 10 pieces ++ system A++
dpvlink
2887

2.15 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Buna" for cartridge 55cc/30cc...
O-ring Buna black
for 55 cc / 30 cc cartridge
PU = 10 pieces ++ system A++
dpvlink
2882

1.05 CHF
The image shows a simple, round rubber ring in a dark color. It has a uniform diameter and a slightly raised edge. The surface is smooth and has a slight shimmer.
O-Ring "Viton" for cartridge 55cc/30cc...
O-ring Viton; for aggressive liquids
for 55 cc / 30 cc cartridge
PU = 10 pieces ++ system A++
dpvlink
2887

2.25 CHF
The image shows a long, narrow cone in blue. The tip is sharply pointed, while the base is wider and flat. On the right, a small notch can be seen.
Dispensing needle tapered size 16
Dispensing needle PP tapered with thread
Size 16 / grey / internal diameter 1.20 mm
PU = 50 pieces
dpvlink
2963

0.85 CHF
The image shows a long, narrow cone in blue. The tip is sharply pointed, while the base is wider and flat. On the right, a small notch can be seen.
Dispensing needle tapered size 18
Dispensing needle PP tapered with thread
Size 18 / green / internal diameter 0.84 mm
PU = 50 pieces
dpvlink
2963

0.85 CHF
The image shows a long, narrow cone in blue. The tip is sharply pointed, while the base is wider and flat. On the right, a small notch can be seen.
Dispensing needle tapered size 20
Dispensing needle PP tapered with thread
Size 20 / pink / internal diameter 0.58 mm
PU = 50 pieces
dpvlink
2963

0.85 CHF
The image shows a long, narrow cone in blue. The tip is sharply pointed, while the base is wider and flat. On the right, a small notch can be seen.
Dispensing needle tapered size 22
Dispensing needle PP tapered with thread
Size 22 / blue / internal diameter 0.41 mm
PU = 50 pieces
dpvlink
2963

0.85 CHF
The image shows a gray syringe with a long, thin needle. The syringe has a wide front end and a narrow, straight needle attachment. It is depicted in a simplified manner.
Dispensing needle standard without thread...
Dispensing needle standard 0.33 mm / orange
Diameter 0.33 mm / orange, length 12,5 mm
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
2913

0.70 CHF
The image shows a gray syringe with a long, thin needle. The syringe has a wide front end and a narrow, straight needle attachment. It is depicted in a simplified manner.
Dispensing needle standard without thread...
Dispensing needle standard 0.15 mm / lavender
Diameter 0.15 mm / lavender, length 12,5 mm
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
2913

0.95 CHF
The image shows a transparent plastic filter in the shape of an elongated cylinder with two connected, narrow ends. It has a slight thickening in the middle.
Filter universal
Universal filter
For use in the hose line
Recommended when dispensing food
Pu = 1 piece
dpvlink
2905

40.25 CHF
The image shows a schematic representation of a cylindrical shape with a wide top and a textured, rotatable middle. The bottom has an opening or valve.
Cartridges "black" 3cc
Cartridge black (PP) 3cc
for UV applications
PU = 10 pieces ++ system A++
dpvlink
2742

1.10 CHF
The image shows a long, narrow cone in blue. The tip is sharply pointed, while the base is wider and flat. On the right, a small notch can be seen.
Dispensing needle tapered size 14
Dispensing needle PP tapered with thread
Size 14 / orange / internal diameter 1.60 mm
PU = 50 pieces
dpvlink
2963

0.85 CHF
The image shows a screwdriver-like shape: an orange handle with a long, green end pointing forward. Light is emanating from the tip.
Dispensing brush with soft bristles
Dispensing brush with soft bristles
PU = 1 piece
dpvlink
8709

15.85 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 25 / red
internal diameter 0.25 mm, length 25.4 mm / 1"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 25 / red
internal diameter 0.25 mm, length 38 mm / 1.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45 ° with thread,
size 25 / red
internal diameter 0.25 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90 ° with thread, size 25 / red
Internal diameter 0.25 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
Size 30 / lavender
Internal diameter 0.15 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.95 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
Size 30 / lavender
Internal diameter 0.15 mm, length 6.35 mm / 0.25"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
Size 30 / lavender
Internal diameter 0.15 mm, length 25.4 mm / 1"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
Size 30 / lavender
Internal diameter 0.15 mm, length 38 mm / 1.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 30 / lavender
internal diameter 0.15 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90 ° with thread,
size 30 / lavender
internal diameter 0.15 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 14 / olive
internal diameter 1.60 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 14 / olive
internal diameter 1.60 mm, length 25.4 mm / 1"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 14 / olive
internal diameter 1.60 mm, length 38 mm / 1.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread
size 14 / olive
internal diameter 1.60 mm, length 12.5 mm / 0.5 "
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a screwdriver with a red handle and a long, narrow metallic shaft that is slightly bent. The handle is ergonomically shaped and has vertical grooves.
Dispensing needle standard 45° with thread...
Dosing needle 45 ° with thread, size 14 / olive,
Internal diameter 1.60 mm, length 38 mm / 1.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8689

1.55 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread
size 25 / red
internal diameter 0.25 mm, length 6.35 mm / 0.25"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread,
size 25 / red
internal diameter 0.25 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver-like shape: an orange handle with a long, green end pointing forward. Light is emanating from the tip.
Dispensing brush with hard bristles
Dispensing brush with hard bristles
PU = 1 piece
dpvlink
8709

15.85 CHF
The image shows a vertical, cylindrical body with a wide top and a narrow bottom. The cylinder has vertical grooves and a screw head attachment at the lower end.
Cartridges "amber" 55cc
Cartridge amber (PP) 55cc
for UV applications
PU = 10 pieces ++ system A++
dpvlink
2738

2.85 CHF
It is a black, elongated object with several round, profiled elevations in the middle. At one end, there is an opening that looks like a connector.
Device plug replacement for tube 4/2
Connector replacement for 4/2 tube
PU = 1 piece
dpvlink
2905

19.45 CHF
The image shows a black, cylindrical component with several spiral grooves. At one end, there is an opening, and on the side, a small protrusion. It could be a connecting element.
Device plug replacement for tube 6/4
Connector replacement for 6/4 tube
PU = 1 piece
dpvlink
2905

19.45 CHF
The image shows a white plastic connector. It has an elongated, cylindrical shape with a slightly tapered tip. Vertical grooves are placed on the side.
Needle cap clear
Needle cap clear
uni size, PU = 10 pieces
dpvlink
2897

0.25 CHF
The image shows a black, conically shaped plug. It has a smooth surface and an opening at one end. The plug is surrounded by a flat base.
Needle cap black
Needle cap black
uni size / with thread
PU = 10 pieces
dpvlink
2897

0.35 CHF
The image shows a white, cylindrical plastic adapter. It has a smooth surface and a slightly conical shape. It is wider on one side than on the other.
Needle cap white
Needle cap white
uni size / with thread
PU = 10 pieces
dpvlink
2897

0.25 CHF
The image shows a silver, metallic U-shaped clamp with a marked number "5-7" on the outside. It has a smooth surface and is hollow inside.
Hose clamp, preformed (metal)
Hose clamp preformed (metal)
for attaching the compressed air hose to the
cartridge adapter, filter and plug
PU = 1 piece
dpvlink
2905

0.85 CHF
The image shows a shiny, round metal ring. It has a uniform, smooth surface and is hollow inside. The ring has a medium width and appears sturdy.
Hose clamp, round (metal)
Hose clamp round (metal)
for attaching the compressed air hose to the
cartridge adapter, filter and plug
PU = 1 piece
dpvlink
2905

0.85 CHF
The image shows a screwdriver. It has a red handle and a slim, straight metal tip. The tip is designed for screws and protrudes forward.
Dispensing needle standard with thread size...
Dispensing needle standard with thread,
size 23 / orange
Internal diameter 0.33 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steelel
PU = 50 pieces
dpvlink
8645

0.70 CHF
The image shows a screwdriver with a yellow handle and a metallic tip. The handle is ergonomically designed and has a slim, elongated shape.
Dispensing needle standard with thread size...
Dispensing needle standard with thread,
size 23 / orange
Internal diameter 0.33 mm, length 6.35 mm / 0.25"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8635

0.95 CHF
The image shows a screwdriver with a long, thin steel blade and a purple handle. The handle has an ergonomic shape and a white tip.
Dispensing needle standard with thread size...
Dispensing needle standard with thread,
size 23 / orange
Internal diameter 0.33 mm, length 25.4 mm / 1"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8656

1.20 CHF
The image shows a screwdriver with a long, thin, metallic shaft and a yellow, ergonomically designed plastic handle. The handle has a smooth surface.
Dispensing needle standard with thread size...
Dispensing needle standard with thread,
size 23 / orange
Internal diameter 0.33 mm, length 38 mm / 1.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8667

1.60 CHF
The image shows a red screwdriver with a narrow, angled steel handle. The handle has a smooth surface and a special shape for better grip.
Dispensing needle standard 45° with thread...
Dispensing needle 45° with thread, size 23/orange
Internal diameter 0.33 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8678

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dispensing needle 90° with thread, size 23/orange
Internal diameter 0.33 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
The image shows a blue screwdriver with a long, slender blade. The handle is wide and ergonomic, while the blade is visible on the right side.
Dispensing needle standard 90° with thread...
Dosing needle 45 ° with thread, size 14 / olive,
Internal diameter 1.60 mm, length 12.5 mm / 0.5"
plastic body with capillary stainless steel
PU = 50 pieces
dpvlink
8693

1.25 CHF
