DC1220 Digital dispenser - max. 2 bar
DC1220 Digital Metering Device - max. 2 bar
The DC1220 is a high-precision, digital metering device for technical applications, offering a maximum output pressure capacity of 2 bar. It features a digital display that shows all relevant pressures both as a level indicator and numerically. This allows for precise and reproducible settings of metering pressure, vacuum retention, and metering times. The operation is via an easy-to-understand menu that provides maximum operating comfort. Additionally, a timer, an I/O port, and a precision pressure regulator are integrated. The device can communicate with PLCs or machine controls via a standard I/O interface.
Technical Data: - Dimensions: 260 x 75 x 220 mm (W x H x D) - Weight: 1.5 kg - Metering duration: 0.01 - 999 seconds - Input voltage: 85-264 V AC - Working voltage: 24 V DC - Compressed air input: up to 7 bar - Compressed air output: 0.08 - 6 bar - Display: 128 x 64 pixels - Programs: 8 memory slots

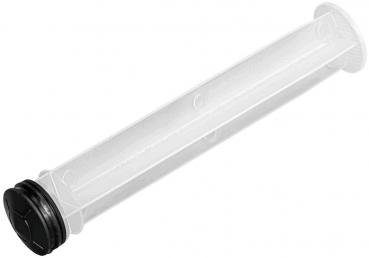

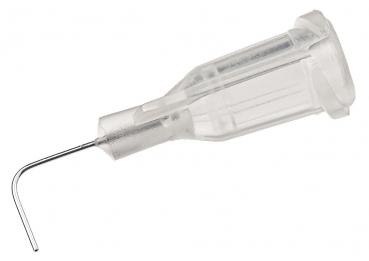

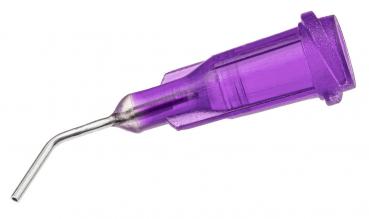

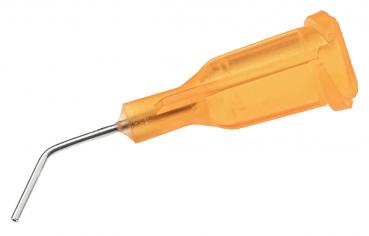

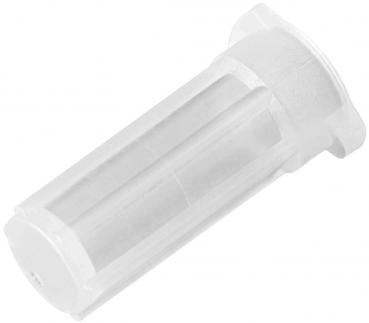

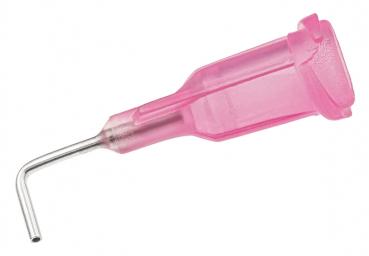

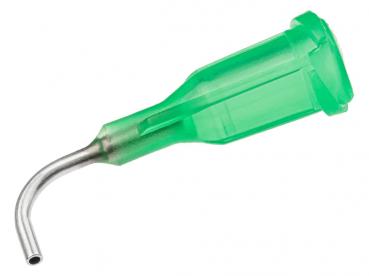

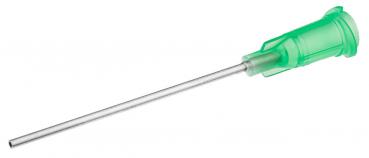

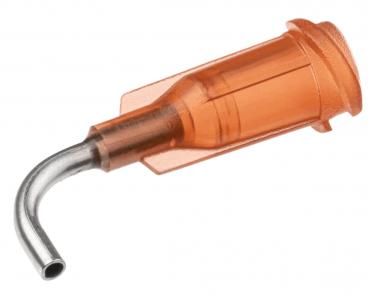

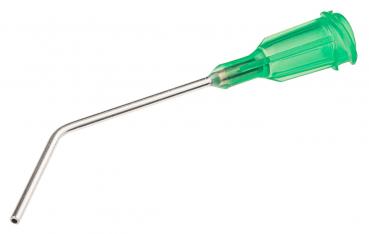

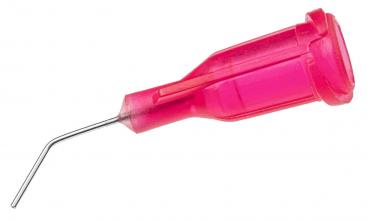

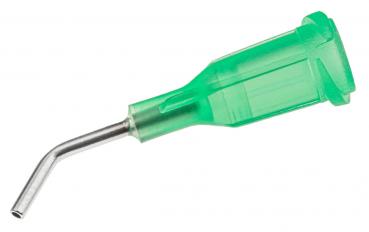

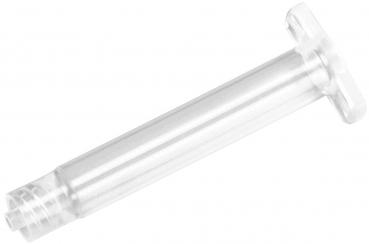

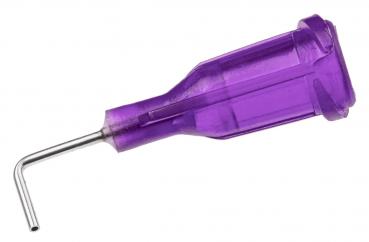

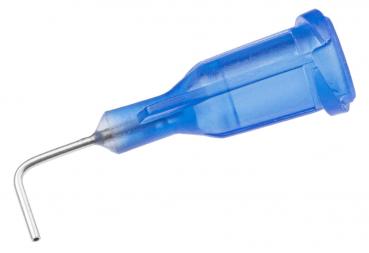

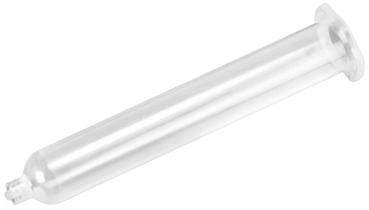

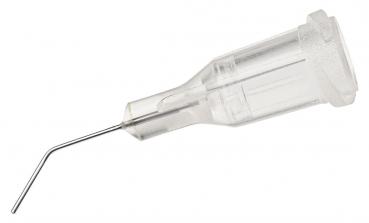

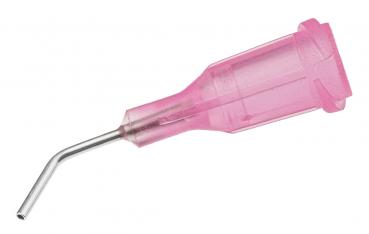

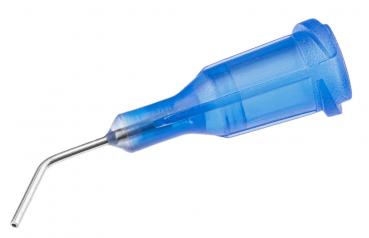

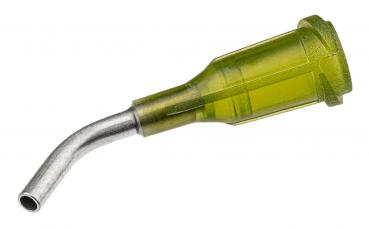

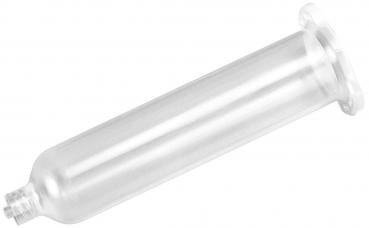

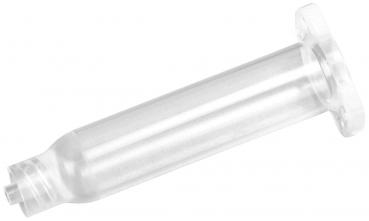

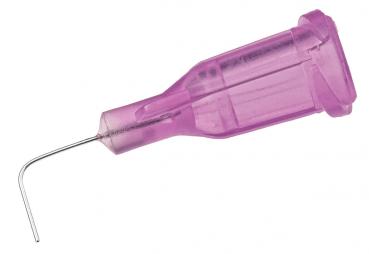

Accessories included: - Cold device cable, foot switch, cartridge holder, connection hose for compressed air input, cartridge adapter, cartridges, plugs, assortment of metering needles.
The DC1220 is a high-precision, digital metering device for technical applications, offering a maximum output pressure capacity of 2 bar. It features a digital display that shows all relevant pressures both as a level indicator and numerically. This allows for precise and reproducible settings of metering pressure, vacuum retention, and metering times. The operation is via an easy-to-understand menu that provides maximum operating comfort. Additionally, a timer, an I/O port, and a precision pressure regulator are integrated. The device can communicate with PLCs or machine controls via a standard I/O interface.
Technical Data: - Dimensions: 260 x 75 x 220 mm (W x H x D) - Weight: 1.5 kg - Metering duration: 0.01 - 999 seconds - Input voltage: 85-264 V AC - Working voltage: 24 V DC - Compressed air input: up to 7 bar - Compressed air output: 0.08 - 6 bar - Display: 128 x 64 pixels - Programs: 8 memory slots
Accessories included: - Cold device cable, foot switch, cartridge holder, connection hose for compressed air input, cartridge adapter, cartridges, plugs, assortment of metering needles.
Details
- Input voltage Input voltage
- 85 - 264 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75
- Length [mm] Length [mm]
- 220
- Width [mm] Width [mm]
- 235
- Compressed air input Compressed air input
- 5 - 7 bar
- Compressed air output Compressed air output
- 0,08 - 2 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Time range Time range
- 0.01 - 999 s
- Weight Weight
- 1.5 kg
Show accessories
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Input voltage | Working voltage | Height [mm] | Length [mm] | Width [mm] | Compressed air input | Compressed air output | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
DC1220 DC1220 Digital dispenser - max. 2 bar | 85 - 264 V/AC | 24 V/DC | 75 | 220 | 235 | 5 - 7 bar | 0,08 - 2 bar | 1,822.90 CHF | |
|
|
DC1240 DC1240 Digital dispenser - max. 4 bar | 85 - 264 V/AC | 24 V/DC | 75 | 220 | 235 | 5 - 7 bar | 0,08 - 4 bar | 1,822.90 CHF | |
|
|
DC1260 DC1260 Digital dispenser - max. 6 bar | 85 - 264 V/AC | 24 V/DC | 75 | 220 | 235 | 5 - 7 bar | 0,08 - 6 bar | 1,822.90 CHF | |
| Show Compare List (0) | ||||||||||
