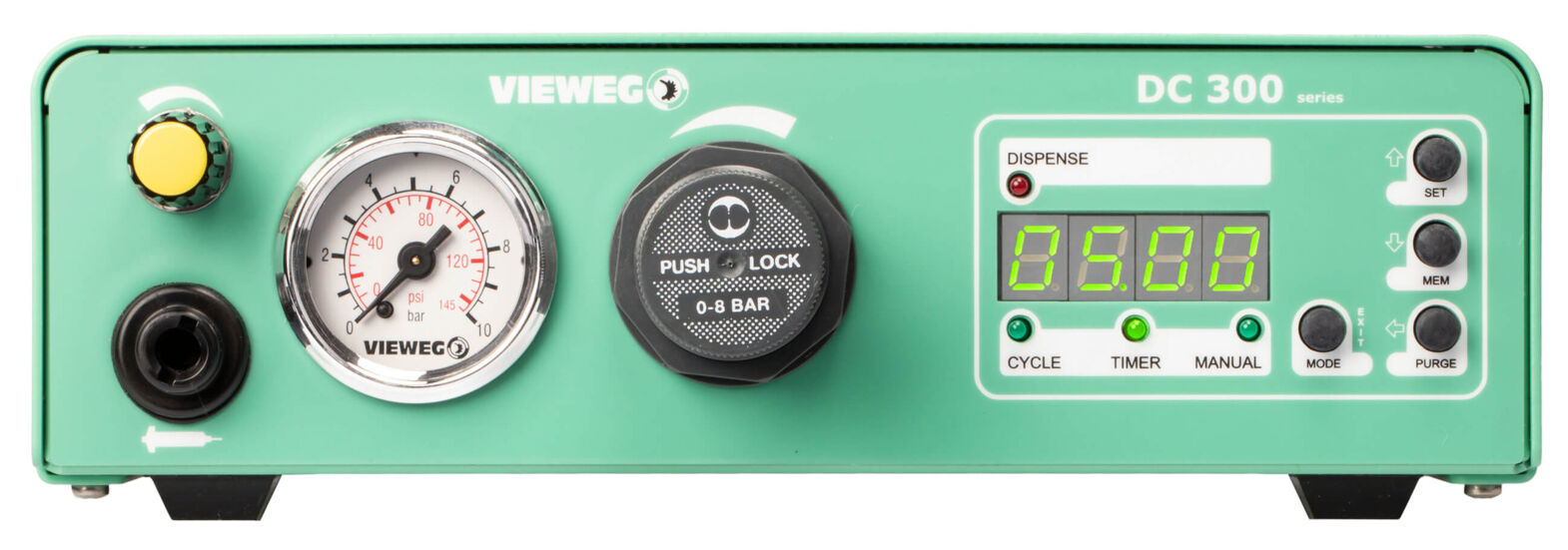

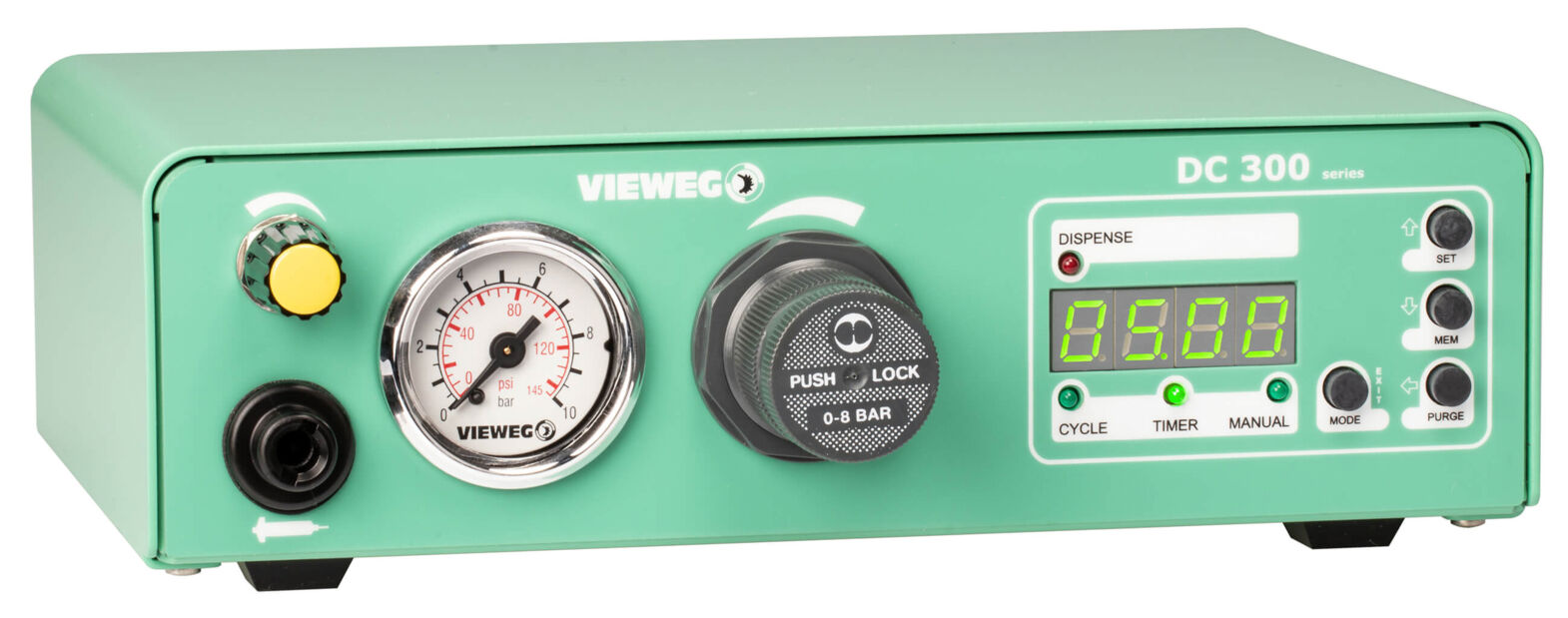

DC370 Dispenser

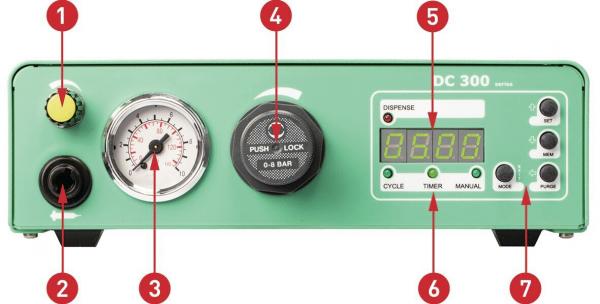

The DC370 dosing device from Vieweg offers precise control and monitoring of the dosing process, ideal for technical use in various industrial sectors. With a digital display and the option to choose between manual and timed dosing, the device allows for flexible application. The input pressure monitoring is done via a pressure sensor with error display, while the compressed air output is adjustable between 0.1 and 7 bar.
The device supports a time range from 0.01 to 9999 seconds and can be seamlessly integrated into automated processes via an optional I/O port. Additionally, it features a cycle operation with 9 program slots and a switchable unit from bar to psi. The wide-range power supply (85-264V AC) and the operating voltage of 24 V DC increase the flexibility of use. With dimensions of 235 x 75 x 220 mm and a weight of 1.3 kg, the DC370 is compact and easy to handle.

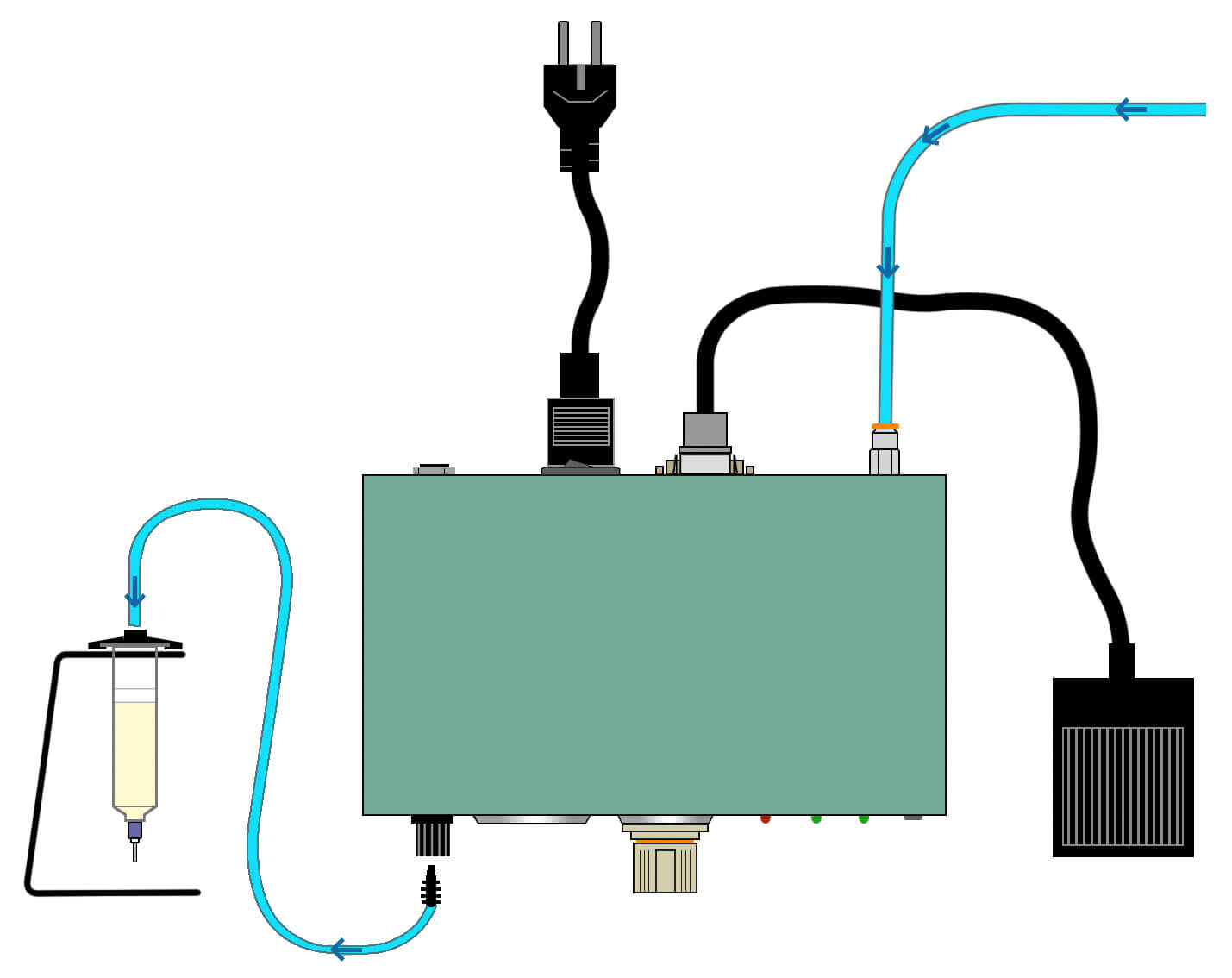

Included in the delivery are a footswitch, a cartridge holder, a connection hose for the compressed air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 134-piece dosing needle assortment. This comprehensive equipment makes the DC370 a versatile and user-friendly solution for precise dosing.
The device supports a time range from 0.01 to 9999 seconds and can be seamlessly integrated into automated processes via an optional I/O port. Additionally, it features a cycle operation with 9 program slots and a switchable unit from bar to psi. The wide-range power supply (85-264V AC) and the operating voltage of 24 V DC increase the flexibility of use. With dimensions of 235 x 75 x 220 mm and a weight of 1.3 kg, the DC370 is compact and easy to handle.
Included in the delivery are a footswitch, a cartridge holder, a connection hose for the compressed air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, and a 134-piece dosing needle assortment. This comprehensive equipment makes the DC370 a versatile and user-friendly solution for precise dosing.
Details
- Input voltage Input voltage
- 100 - 240 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75 mm
- Length [mm] Length [mm]
- 135 mm
- Width [mm] Width [mm]
- 225 mm
- Compressed air input Compressed air input
- 0 - 7 bar
- Compressed air output Compressed air output
- 0 - 7 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Time range Time range
- 0.01 - 9999 s
- Weight Weight
- 1.3 kg
