DC600 Dispenser
DC600 - Dispensing Device

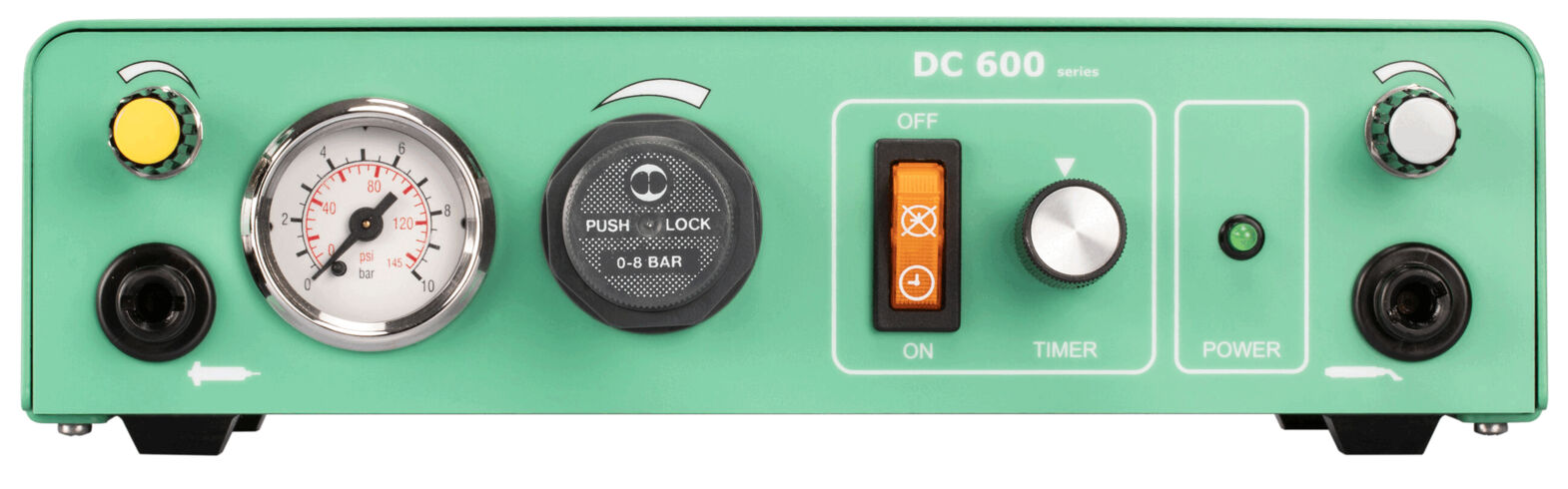

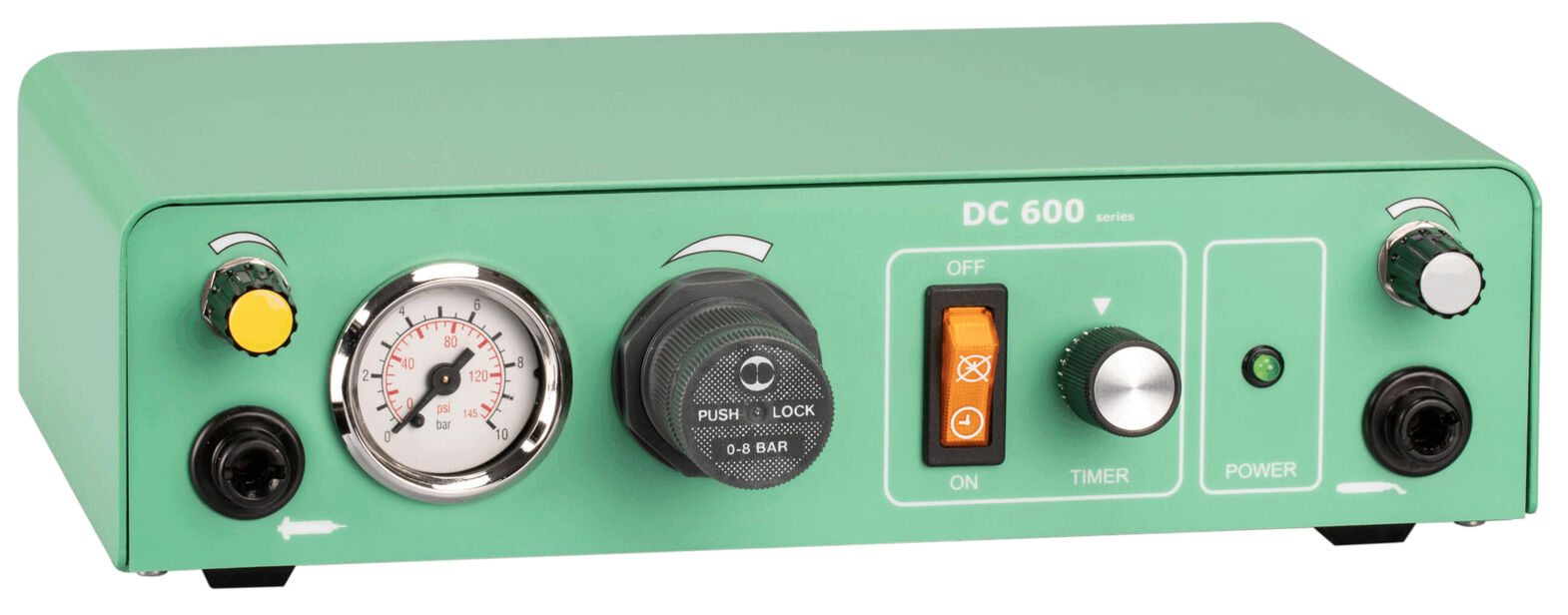

The DC600 dispensing device is a high-precision instrument, ideal for miniature areas in industrial applications. It enables the application of solder paste and other materials with utmost accuracy and is excellent for pick-and-place tasks as well as the assembly and post-processing of small parts. The integrated vacuum retraction system prevents dripping in low-viscosity media, which enhances drip safety. The device is suitable for a variety of media and offers the following technical features:

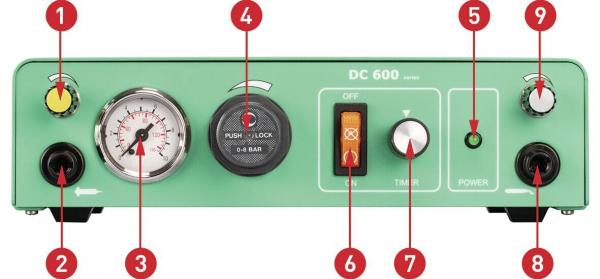

- Vacuum tweezer with negative pressure function
- Timer with adjustable time range from 0.01 to 31 seconds
- Compressed air output and input from 0 to 7 bar
- Pressure gauge and pressure regulator
- Power LED
Technical Data:
- Dimensions: 260 x 75 x 220 mm
- Dispensing speed: up to 600 dispensations per minute
- Dispensing method: manual or timed
- Operating voltage: 24 V DC
- Input voltage: 85-264 V AC
- Weight: 1.4 kg

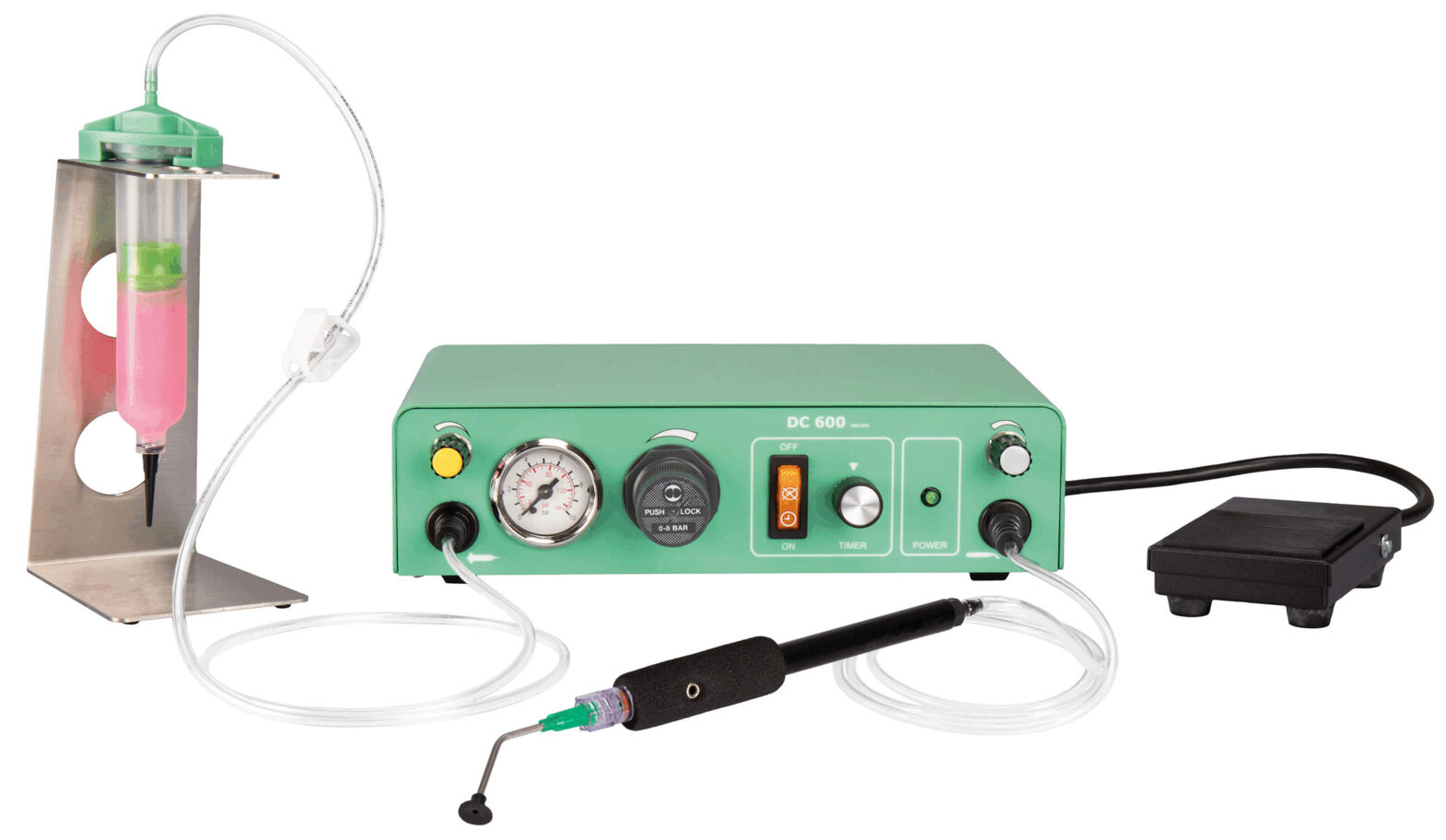

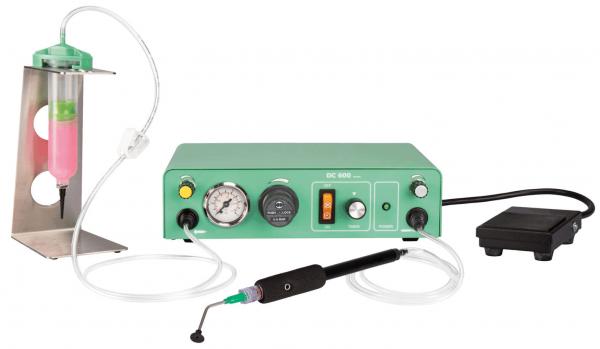

The package includes a foot switch, a cartridge holder, a connection hose for the compressed air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, a 134-piece dispensing needle assortment, and a tweezer with vacuum function including various vacuum suckers and dispensing needles.
The DC600 dispensing device is a high-precision instrument, ideal for miniature areas in industrial applications. It enables the application of solder paste and other materials with utmost accuracy and is excellent for pick-and-place tasks as well as the assembly and post-processing of small parts. The integrated vacuum retraction system prevents dripping in low-viscosity media, which enhances drip safety. The device is suitable for a variety of media and offers the following technical features:
- Vacuum tweezer with negative pressure function
- Timer with adjustable time range from 0.01 to 31 seconds
- Compressed air output and input from 0 to 7 bar
- Pressure gauge and pressure regulator
- Power LED
Technical Data:
- Dimensions: 260 x 75 x 220 mm
- Dispensing speed: up to 600 dispensations per minute
- Dispensing method: manual or timed
- Operating voltage: 24 V DC
- Input voltage: 85-264 V AC
- Weight: 1.4 kg
The package includes a foot switch, a cartridge holder, a connection hose for the compressed air input, a 30cc cartridge adapter, three 30cc cartridges, three 30cc plugs, a 134-piece dispensing needle assortment, and a tweezer with vacuum function including various vacuum suckers and dispensing needles.
Details
- Input voltage Input voltage
- 100 - 240 V/AC
- Working voltage Working voltage
- 24 V/DC
- Height [mm] Height [mm]
- 75
- Length [mm] Length [mm]
- 260
- Width [mm] Width [mm]
- 210
- Compressed air input Compressed air input
- 0 - 7 bar
- Compressed air output Compressed air output
- 0.1 - 7 bar
- Dispensing method Dispensing method
- manuel / time-controlled
- Dispensing speed per minute Dispensing speed per minute
- 600
- Time range Time range
- 0.01 - 31 s
- Weight Weight
- 1.4 kg
