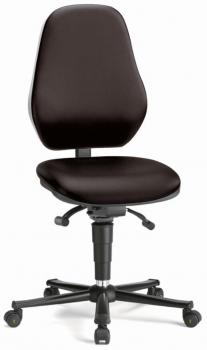

Basic 2 ESD swivel chair with synchronous technology
The Basic 2 ESD swivel chair by bimos combines advanced synchronous technology with comprehensive ESD protection, ensured by volume conductive plastic and conductive comfort cushions. This chair is specifically designed for work environments where electrostatic discharges must be avoided and meets the standards DIN 68877 and DIN EN 61340-5-1.The ergonomic design supports a body-friendly sitting posture, while the seat and backrest height can be individually adjusted to provide optimal comfort. The backrest features a weight regulation that automatically adjusts to the user. With a seat height of 49 to 63 cm and a backrest height of 53 cm, the chair is designed for a maximum load capacity of 120 kg.
The PLUS model additionally offers a conductive outer back shell. The chair is equipped with conductive, braked twin castors, specifically suitable for smooth floors, and features a flat-base five-foot subframe made of black, epoxy-coated profile steel tube. Available in fabric or synthetic leather covers, this swivel chair offers a practical and safe seating solution for ESD-sensitive areas.
Details
- Seat height Seat height
- 49 - 63 cm
- Backrest: height Backrest: height
- 53 cm
- Castor type Castor type
- double castors for smooth floors, conductive
- Seat mechanism Seat mechanism
- synchronous technology
- Cover Cover
- fabric oder synthetic leather
- Armrest Armrest
- without armrest
- Backrest Backrest
- height-adjustable
- Castor Feature Castor Feature
- braked
- Chair type Chair type
- swivel chair
- Max. load capacity Max. load capacity
- 120 kg
- Polished aluminum base Polished aluminum base
- steel black, flat-ending
- Seat height adjustment Seat height adjustment
- lateral lever
- Seat: size Seat: size
- 46 x 44 cm
- Bleeder resistance Bleeder resistance
- 106 Ω
- Series Series
- BASIC
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Swivel chair BASIC
ESD suitability of the BASIC swivel chair
The Basic ESD swivel chair is suitable for use in electrostatically protected areas, as it is characterized by reliable ESD protection. The EN 61340-5-1 standard specifies the required resistances, which the BASIC chair meets.
The ESD BASIC swivel chair in three models
Der The ESD BASIC offers all the typical Bimos benefits - whether at a low or high working height. It is available in three versions that are optimally adapted to different workplace requirements:
- Model 1: For low working positions with glides
- Model 2: For low working positions with castors
- Model 3: For high working positions with glides
The PLUS version also has a conductive back shell and therefore offers even more protection in sensitive ESD areas.
Always the right choice – the ESD BASIC
Good sitting quality
The ergonomics package, the various Basic versions, the optional equipment options - all this makes the CLEANROOM BASIC swivel chair an excellent candidate for comfortable and healthy sitting in the ESD area. The benefits are considerable: fewer sick days, higher employee motivation, lower error rates. With Bimos, you can count on more success in all areas.
More environmental friendliness
Bimos is EMAS-certified. This means, among other things, that we attach great importance to environmentally friendly and sustainable production for all our chairs. Right from the development stage, attention is paid to the use of recyclable materials, few composite materials and complete recovery at a later stage. However, our most important goal is to ensure that your chair is as durable as possible and ideally only needs to be replaced after decades.
