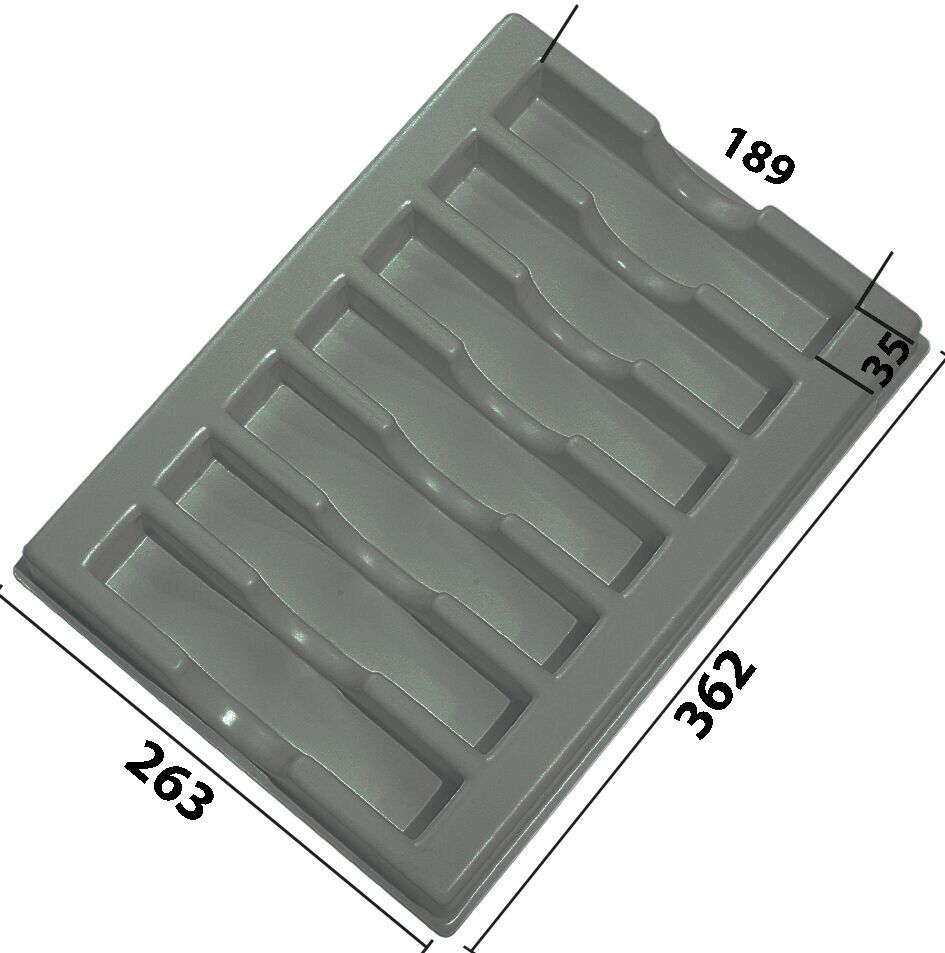

The image shows a rectangular, gray plate with several elongated indentations. The dimensions are 362 mm in length, 263 mm in width, and 35 mm in height. The indentations are evenly arranged.
Vacuum-formed insert T-2107 362 x 263 x 43 mm, 7 compartments ESD
(Product No.: 032.T-2107)
The image shows a rectangular, gray plate with several elongated indentations. The dimensions are 362 mm in length, 263 mm in width, and 35 mm in height. The indentations are evenly arranged.
Notice

Vacuum-formed insert T-2107 362 x 263 x 43 mm, 7 compartments ESD

Vacuum-formed insert T-2107 362 x 263 x 43 mm, 7 compartments ESD

dpvlink:
18942
Length :
362 mm
Width [mm]:
263 mm
Height [mm]:
43 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now


Minimum order:
10 PCE
24.10 CHF

excl. 8.1% tax

10 PCE
Compare Compare
Notice
Product Info

Vacuum-formed insert T-2107 362 x 263 x 43 mm, 7 compartments ESD

The deep-drawing insert T-2107 from Licefa, measuring 362 x 263 x 43 mm with seven compartments, is specifically designed for the safe storage and transport of sensitive electronic components. Each compartment measures 189 x 35 x 41 mm, ensuring optimal organization and protection of the components.
These inserts are made from an electrically conductive plastic that meets the requirements of DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm. These properties make them particularly suitable for ESD-sensitive environments, to prevent static charges and safely protect the electronic components.
The deep-drawing insert is also suitable for standard containers measuring 400 x 300 mm, which facilitates integration into existing storage and transport solutions. With its robust construction and specific dimensions, it offers an efficient and secure solution for technical buyers in the field of electronics manufacturing and storage.
Length
Length
362 mm
Width [mm]
Width
263 mm
Height [mm]
Height
43 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
7
Dimensions cavities
Dimensions cavities
189x35x41 mm
Suitable for containers
Suitable for containers
400x300 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 318
Complete Catalog 2023 - 2024
