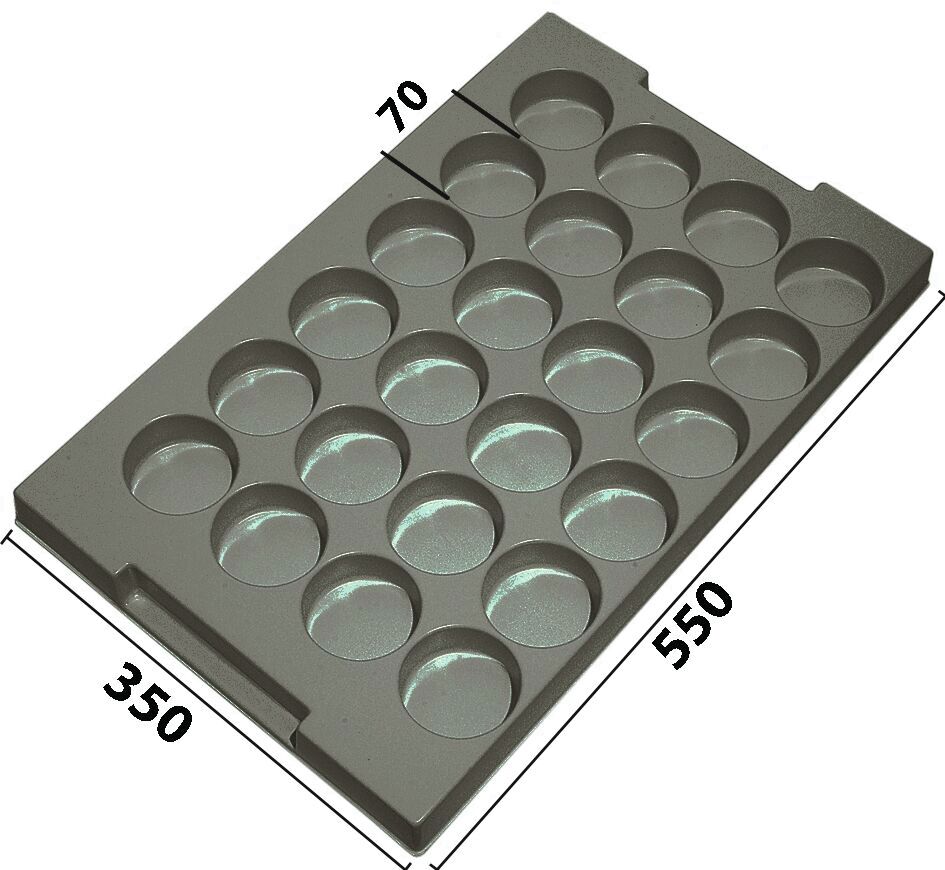

The image displays a gray plastic plate with 24 round indentations. The plate measures 350 mm in width and 550 mm in length, with a narrow area of 70 mm on one side.
Vacuum-formed insert T-237 550 x 350 x 38 mm, 24 compartments ESD
(Product No.: 032.T-237)
The image displays a gray plastic plate with 24 round indentations. The plate measures 350 mm in width and 550 mm in length, with a narrow area of 70 mm on one side.

Vacuum-formed insert T-237 550 x 350 x 38 mm, 24 compartments ESD

Vacuum-formed insert T-237 550 x 350 x 38 mm, 24 compartments ESD

dpvlink:
19008
Length :
550 mm
Width [mm]:
350 mm
Height [mm]:
38 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice
Product Info

Vacuum-formed insert T-237 550 x 350 x 38 mm, 24 compartments ESD

The Licefa deep-drawing insert, model T-237, is an optimal solution for the safe storage and transportation of sensitive electronic components. With dimensions of 550 x 350 x 38 mm and 24 compartments, each with a diameter of 70x30 mm, this insert fits perfectly into containers sized 600x400 mm.
The insert is characterized by its electrical conductivity, which meets the standards DIN EN 61340-5-1, with a surface resistance between 10^3 and 10^5 Ohm. These characteristics make it ideal for use in ESD protection zones to prevent electrostatic discharges.
In addition, the insert offers a practical recessed grip for easy handling. The minimum order quantity for this product is 50 pieces.
Length
Length
550 mm
Width [mm]
Width
350 mm
Height [mm]
Height
38 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
24
Dimensions cavities
Dimensions cavities
70x30 mm
Suitable for containers
Suitable for containers
600x400 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 321
Complete Catalog 2023 - 2024
