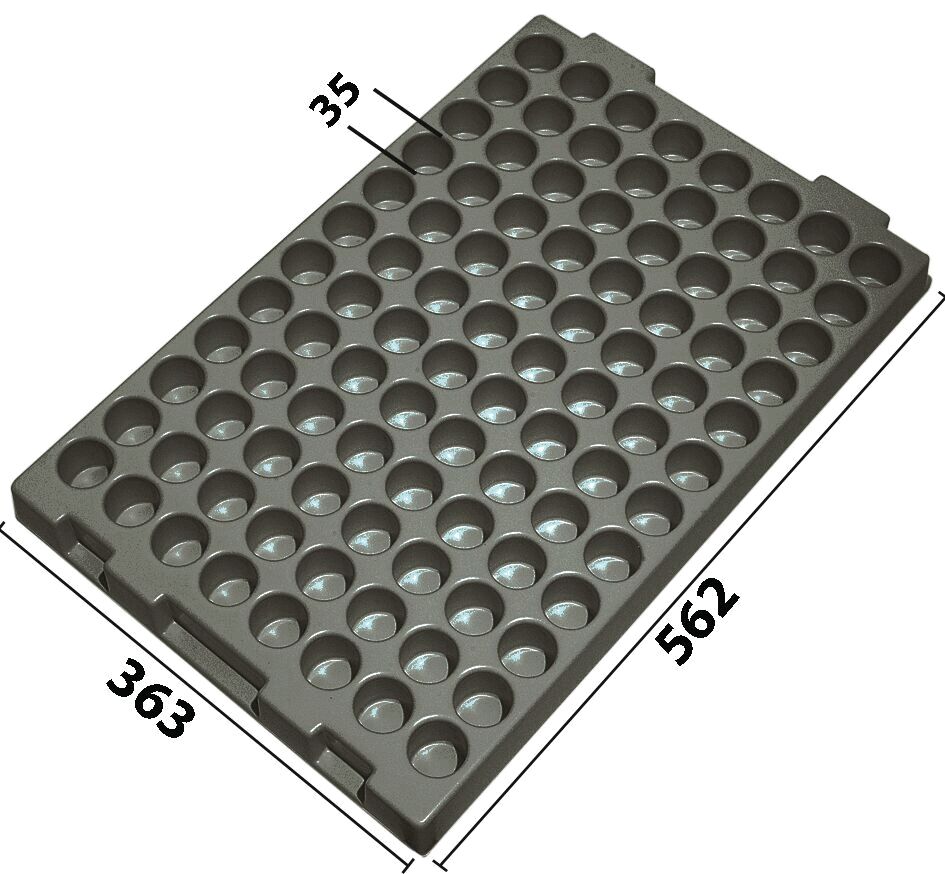

The image shows a flat, gray plate with many small, round indentations. The plate is rectangular in shape and measures 363 mm in width and 562 mm in length.
Vacuum-formed insert T-247 562 x 363 x 43 mm, 96 compartments ESD
(Product No.: 032.T-247)
The image shows a flat, gray plate with many small, round indentations. The plate is rectangular in shape and measures 363 mm in width and 562 mm in length.

Vacuum-formed insert T-247 562 x 363 x 43 mm, 96 compartments ESD

Vacuum-formed insert T-247 562 x 363 x 43 mm, 96 compartments ESD

dpvlink:
18992
Length :
562 mm
Width [mm]:
363 mm
Height [mm]:
43 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice
Product Info

Vacuum-formed insert T-247 562 x 363 x 43 mm, 96 compartments ESD

The deep-drawing insert T-247 from Licefa, specifically designed for the storage and transportation of sensitive electronic components, provides optimal protection features through its ESD properties. This insert is made of electrically conductive plastic that complies with the DIN EN 61340-5-1 standards, thus ensuring the safety of your components from electrostatic discharge. With dimensions of 562 x 363 x 43 mm and a total of 96 compartments, each measuring 35x35 mm, this insert fits perfectly into containers with dimensions of 600x400 mm.
The deep-drawing insert is characterized by practical features such as reversible stacking and a grip recess, which facilitate everyday handling. The surface resistance is between 10^3 and 10^5 Ohm, ensuring conductivity. A minimum order quantity of 50 pieces is required for an efficient storage and transportation solution. This insert is a reliable choice for technical buyers who value quality and functionality.
Length
Length
562 mm
Width [mm]
Width
363 mm
Height [mm]
Height
43 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
96
Dimensions cavities
Dimensions cavities
35x35 mm
Suitable for containers
Suitable for containers
600x400 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 320
Complete Catalog 2023 - 2024
