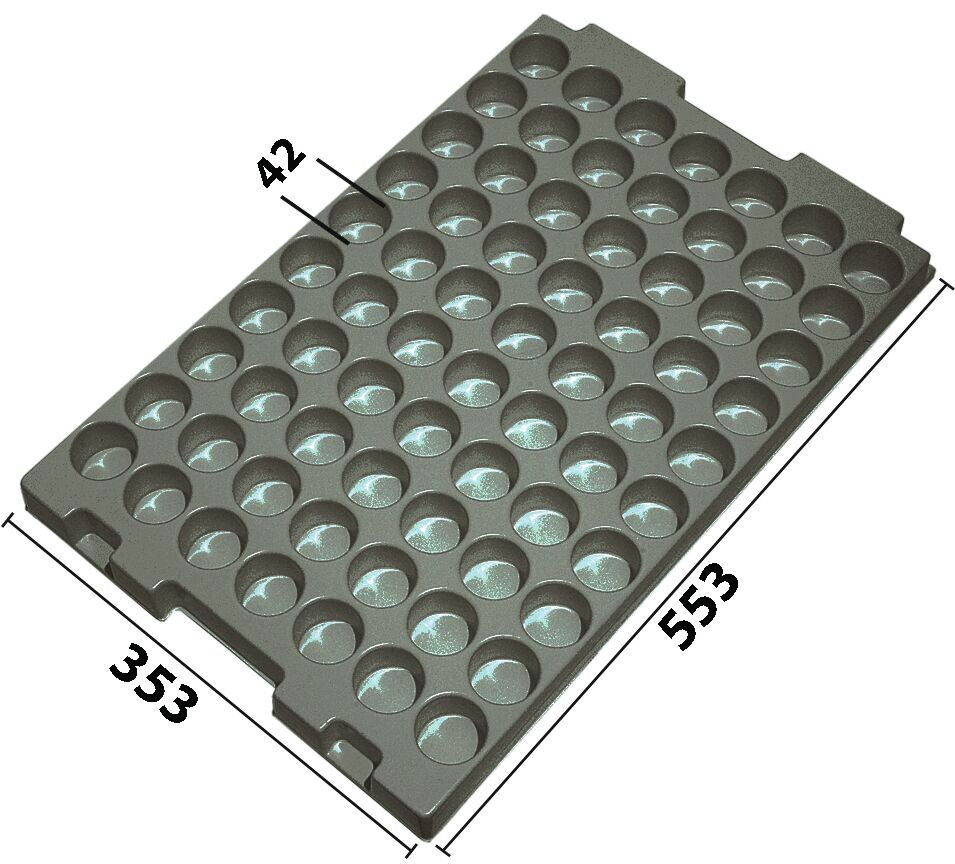

The image displays a gray plastic plate with many small round indentations. It is rectangular, measuring 553 mm in length and 353 mm in width, with a height of 42 mm.
Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD
(Product No.: 032.T-249)
The image displays a gray plastic plate with many small round indentations. It is rectangular, measuring 553 mm in length and 353 mm in width, with a height of 42 mm.

Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD

Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD

dpvlink:
19000
Length :
553 mm
Width [mm]:
353 mm
Height [mm]:
36 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice
Product Info

Vacuum-formed insert T-249 553 x 353 x 36 mm, 70 compartments ESD

The deep-drawing insert T-249 from Licefa, with dimensions of 553 x 353 x 36 mm, is specifically designed for the secure storage and transport of sensitive electronic components. This insert features 70 compartments with a diameter of 42x32 mm each, made from electrically conductive material and complying with the standards of DIN EN 61340-5-1. The conductivity of the material ensures a surface resistance between 10^3 and 10^5 Ohm, providing protection against electrostatic discharges.
The insert is also suitable for containers sized 600x400 mm and offers comfortable handling through reversible stacking and a practical handle recess. The minimum order quantity is 50 pieces. With these technical features, the deep-drawing insert T-249 is ideally suited for technical purchasers looking for high-quality solutions for ESD-safe storage.
Length
Length
553 mm
Width [mm]
Width
353 mm
Height [mm]
Height
36 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
70
Dimensions cavities
Dimensions cavities
42x32 mm
Suitable for containers
Suitable for containers
600x400 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 321
Complete Catalog 2023 - 2024
