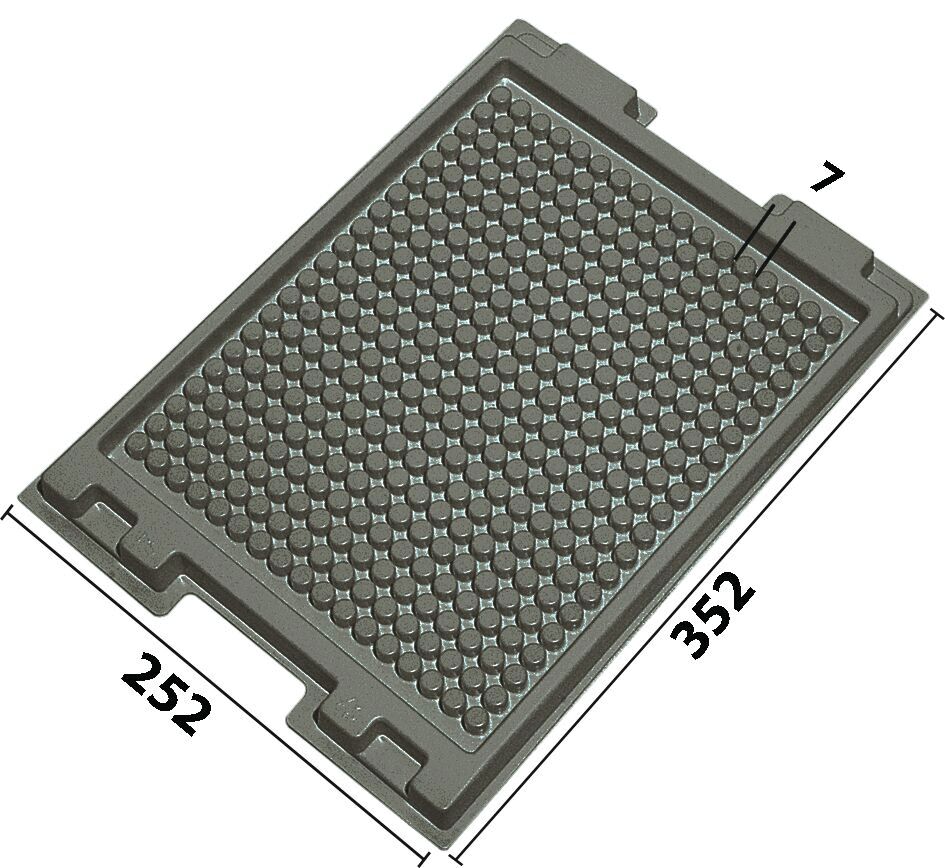

The image shows a gray, flat plate with a textured surface covered with many small, round elevations. The dimensions are 252 mm x 352 mm and 7 mm thick.
Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD
(Product No.: 032.T-276)
The image shows a gray, flat plate with a textured surface covered with many small, round elevations. The dimensions are 252 mm x 352 mm and 7 mm thick.

Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD

Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD

dpvlink:
18950
Length :
352 mm
Width [mm]:
252 mm
Height [mm]:
20 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice
Product Info

Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD

The deep-drawing insert T-276 from Licefa is a high-quality solution for the safe storage and transport of sensitive electronic components. This insert is specifically designed for use in containers of size 400x300 mm and offers optimal protection for your electronic parts through its electrostatic discharge protection function (ESD). With dimensions of 352 x 252 x 20 mm and 320 precisely shaped compartments with a diameter of 7x15 mm each, this product allows efficient use of available space.
The deep-drawing insert is characterized by electrical conductivity according to DIN EN 61340-5-1, with surface resistance between 10^3 and 10^5 ohms. Additionally, the insert is equipped with a handle recess for easy handling and reverse stacking for space-saving storage. The minimum order quantity is 50 pieces, which represents a practical solution for technical purchasers in the industry who need larger quantities.
Length
Length
352 mm
Width [mm]
Width
252 mm
Height [mm]
Height
20 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
320
Dimensions cavities
Dimensions cavities
7x15 mm
Suitable for containers
Suitable for containers
400x300 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 319
Complete Catalog 2023 - 2024
Configurators:
Imprinting / Printing for boxes

Product Family

Vacuum-formed inserts T-276

Article image
Article description
Length
Width [mm]
Height [mm]
Price
Compare
032.T-276 - Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD
032.T-276
Vacuum-formed insert T-276 352 x 252 x 20 mm, 320 compartments ESD
352 mm
252 mm
20 mm
-
Show Compare List (0)
