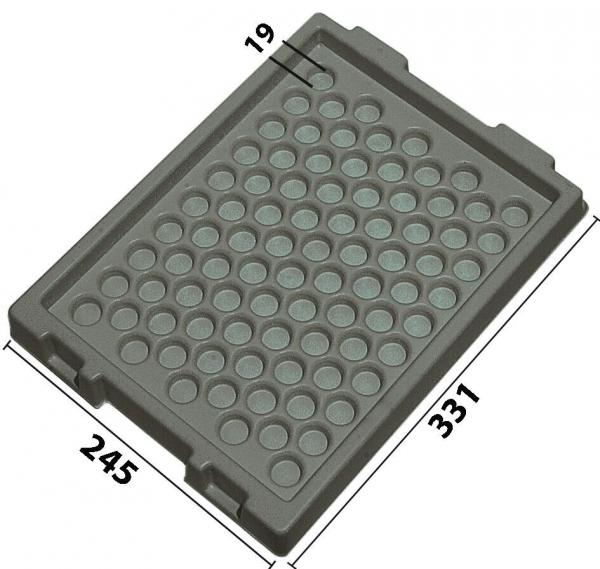

The image shows a rectangular, gray plate with many round indentations. The plate measures approximately 33.1 cm in length and 24.5 cm in width. There are also two small notches in the upper area.
Vacuum-formed insert T-285 331 x 245 x 35 mm, 86 compartments ESD
(Product No.: 032.T-285)

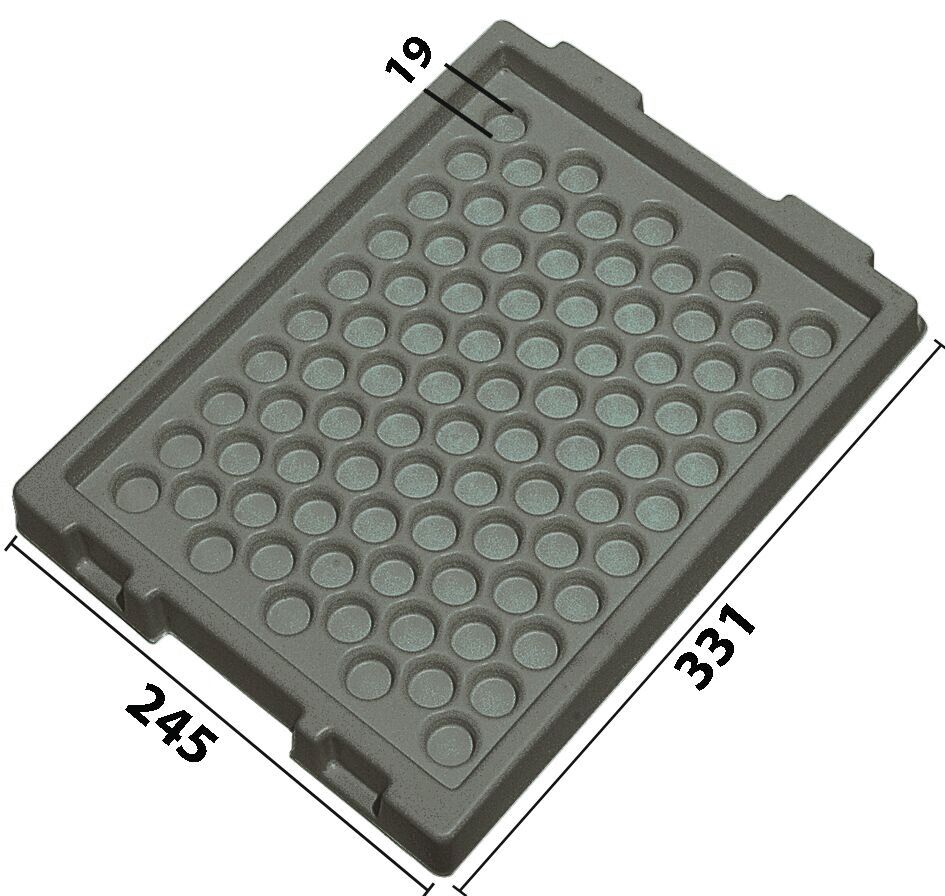

The image shows a rectangular, gray plate with many round indentations. The plate measures approximately 33.1 cm in length and 24.5 cm in width. There are also two small notches in the upper area.

Vacuum-formed insert T-285 331 x 245 x 35 mm, 86 compartments ESD

Vacuum-formed insert T-285 331 x 245 x 35 mm, 86 compartments ESD

dpvlink:
18964
Length :
331 mm
Width [mm]:
245 mm
Height [mm]:
35 mm
Properties:
Further product information
Imprinting / Printing for boxes
configure_now



Compare Compare
Notice
Product Info

Vacuum-formed insert T-285 331 x 245 x 35 mm, 86 compartments ESD

The deep-drawing insert T-285 from Licefa, measuring 331 x 245 x 35 mm with 86 compartments, is specifically designed for the storage and transport of sensitive electronic components. Each compartment has a diameter of 19x30 mm, ideal for smaller components. This ESD-compliant insert meets the standards of DIN EN 61340-5-1, making it suitable for electrostatically endangered environments.
The insert is made from Liastat, an electrically conductive material that offers a surface resistance between 10^3 and 10^5 Ω. These properties guarantee safe protection of components from electrostatic discharges. Additionally, the recessed grip allows for easy handling and the reverse stacking enables efficient space utilization in standard containers of size 400x300 mm.
The minimum order quantity for this product is 50 units, which is a good option for bulk buyers and technical purchasers who value quality and specifications.
Length
Length
331 mm
Width [mm]
Width
245 mm
Height [mm]
Height
35 mm
Conductivity
Conductivity
conductive
Surface resistance Rs
Surface resistance Rs
103 - 105 Ω
Cavities
Cavities
86
Dimensions cavities
Dimensions cavities
19x30 mm
Suitable for containers
Suitable for containers
400x300 mm
Common
Vacuum-formed inserts are specially shaped inserts or inserts made of plastic that are used in storage and transport containers to store sensitive or fragile items safely and securely.
Licefa's ESD vacuum-formed inserts offer a first-class solution for the safe and efficient storage of your sensitive electronic components. All inserts are made of electrically conductive material (Liastat).

Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 319
Complete Catalog 2023 - 2024
