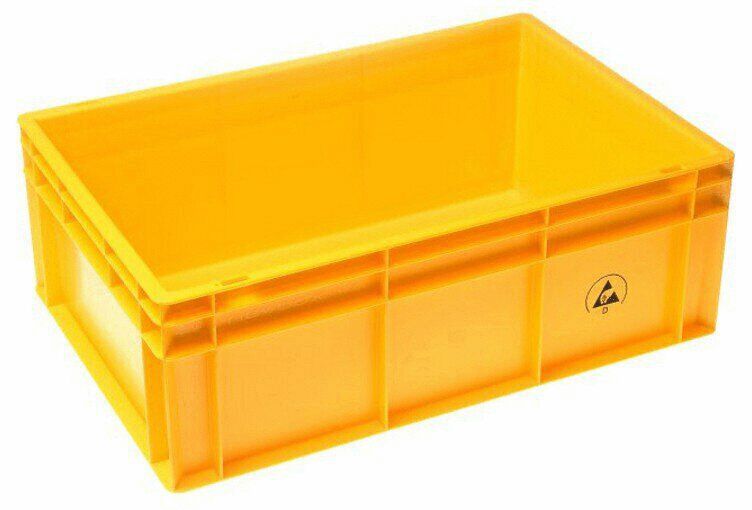

The image shows a rectangular, bright yellow plastic box. It has a flat shape and low walls, with a smooth surface and a symbolic print on one side.
NEWBOX Euro containers IDP ESD 300x200x120 mm
(Product No.: 5311.05.gelb)
The image shows a rectangular, bright yellow plastic box. It has a flat shape and low walls, with a smooth surface and a symbolic print on one side.
Notice / Inquire

NEWBOX Euro containers IDP ESD 300x200x120 mm

dpvlink:
30970
Properties:
Further product information
Interlayers
configure_now


18.80 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

NEWBOX Euro containers IDP ESD 300x200x120 mm

The NEWBOX Euro container IDP ESD in Yellow is made from a permanently electrostatically dissipative polypropylene, which meets the standards DIN EN 61340-5-1 and DIN IEC 61340-5-1. With external dimensions of 300 x 200 x 120 mm and internal dimensions of 270 x 170 x 117 mm, this container offers an efficient solution for the storage and transport of sensitive electronic components.
The use of Inherently Dissipative Polymers (IDP) ensures humidity independence and consistent conductivity with a surface resistance between 10^9 and 10^10 Ohm. Additionally, the container is stackable, allowing for space-saving storage.
Markings such as the ESD warning symbol, the recycling symbol, and a LOT number are clearly placed on the container, further contributing to safety and traceability.
Color
Color
yellow
Height
Height
120 mm
Internal height
117 mm
Internal length
270 mm
Internal width
Internal width
170 mm
Length
Length
300 mm
Width
Width
200 mm
Conductivity
Conductivity
dissipative
Surface resistance Rs
Surface resistance Rs
109 - 1010 Ω
Material
Material
polypropylene / IDP
Stackable
Stackable
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

There are two rectangular plates visible. One is yellow and the other is red. They are flat and made of a material that appears lightweight. The yellow plate is on top of the red one.
Hinged lid ESD
Hinged lid IDP 300x200 mm, yellow
electrostatically dissipative (DIN IEC 61340-5-1)
IDP = inherently dissipative polymers
dpvlink
8464

8.55 CHF
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 305
Complete Catalog 2023 - 2024
Configurators:
Interlayers
Configurators:
Imprinting / Printing for boxes
Configurators:
Parting Inserts

Product Family

NEWBOX Euro container IDP yellow

  • Permanently electrostatically dissipative polypropylene IDP (inherently dissipative polymer)
  • Color yellow
  • stackable
  • independent of humidity
  • Labeling: ESD warning symbol, recycling symbol and lot number

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Height
Internal height
Internal length
Internal width
Length
Width
Conductivity
Surface resistance Rs
Material
Stackable
Price
Compare
5311.05.gelb - NEWBOX Euro containers IDP ESD 300x200x120 mm
5311.05.gelb
NEWBOX Euro containers IDP ESD 300x200x120 mm
yellow
120 mm
117 mm
270 mm
170 mm
300 mm
200 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
18.80 CHF
5311.10.gelb - NEWBOX Euro containers IDP ESD 400x300x120 mm
5311.10.gelb
NEWBOX Euro containers IDP ESD 400x300x120 mm
yellow
120 mm
115 mm
355 mm
255 mm
400 mm
300 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
27.70 CHF
5311.14.gelb - NEWBOX Euro container IDP ESD 400x300x170 mm
5311.14.gelb
NEWBOX Euro container IDP ESD 400x300x170 mm
yellow
170 mm
165 mm
355 mm
255 mm
400 mm
300 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
33.65 CHF
5311.20.gelb - NEWBOX Euro container IDP ESD 400x300x220 mm
5311.20.gelb
NEWBOX Euro container IDP ESD 400x300x220 mm
yellow
220 mm
215 mm
355 mm
255 mm
400 mm
300 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
38.75 CHF
5311.31.gelb - NEWBOX Euro container IDP ESD 400x300x320 mm
5311.31.gelb
NEWBOX Euro container IDP ESD 400x300x320 mm
yellow
320 mm
317 mm
355 mm
255 mm
400 mm
300 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
53.00 CHF
5311.24.gelb - NEWBOX Euro container IDP ESD 600x400x120 mm
5311.24.gelb
NEWBOX Euro container IDP ESD 600x400x120 mm
yellow
120 mm
115 mm
555 mm
355 mm
600 mm
400 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
49.55 CHF
5311.34.gelb - NEWBOX Euro container IDP ESD 600x400x170 mm
5311.34.gelb
NEWBOX Euro container IDP ESD 600x400x170 mm
yellow
170 mm
165 mm
555 mm
355 mm
600 mm
400 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
58.05 CHF
5311.42.gelb - NEWBOX Euro container IDP ESD 600x400x220 mm
5311.42.gelb
NEWBOX Euro container IDP ESD 600x400x220 mm
yellow
220 mm
215 mm
555 mm
355 mm
600 mm
400 mm
dissipative
109 - 1010 Ω
polypropylene / IDP
yes
66.70 CHF
