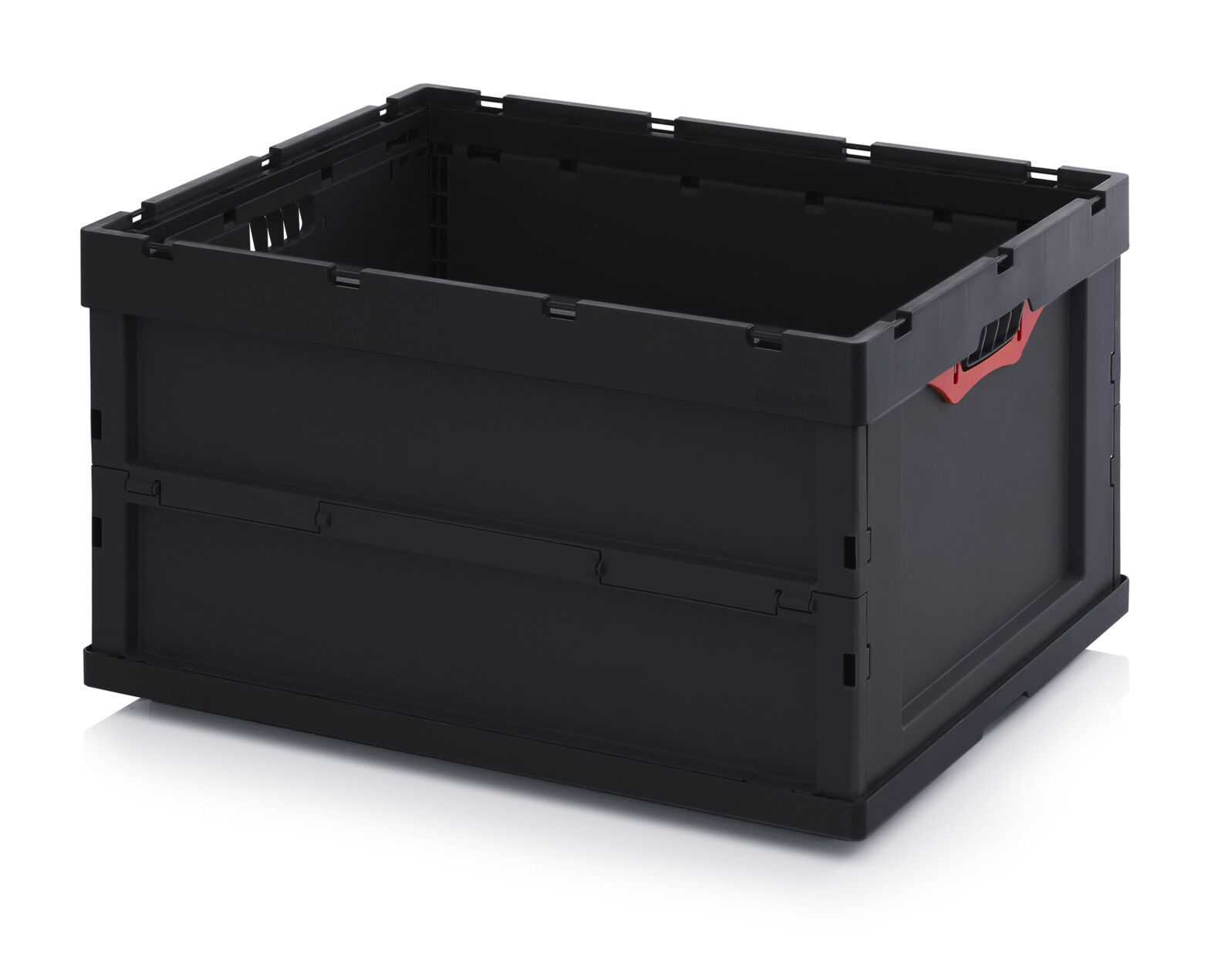

It is a black, square box with open sides. The top edge is reinforced, and a red label is attached to one side. The box appears sturdy and stackable.

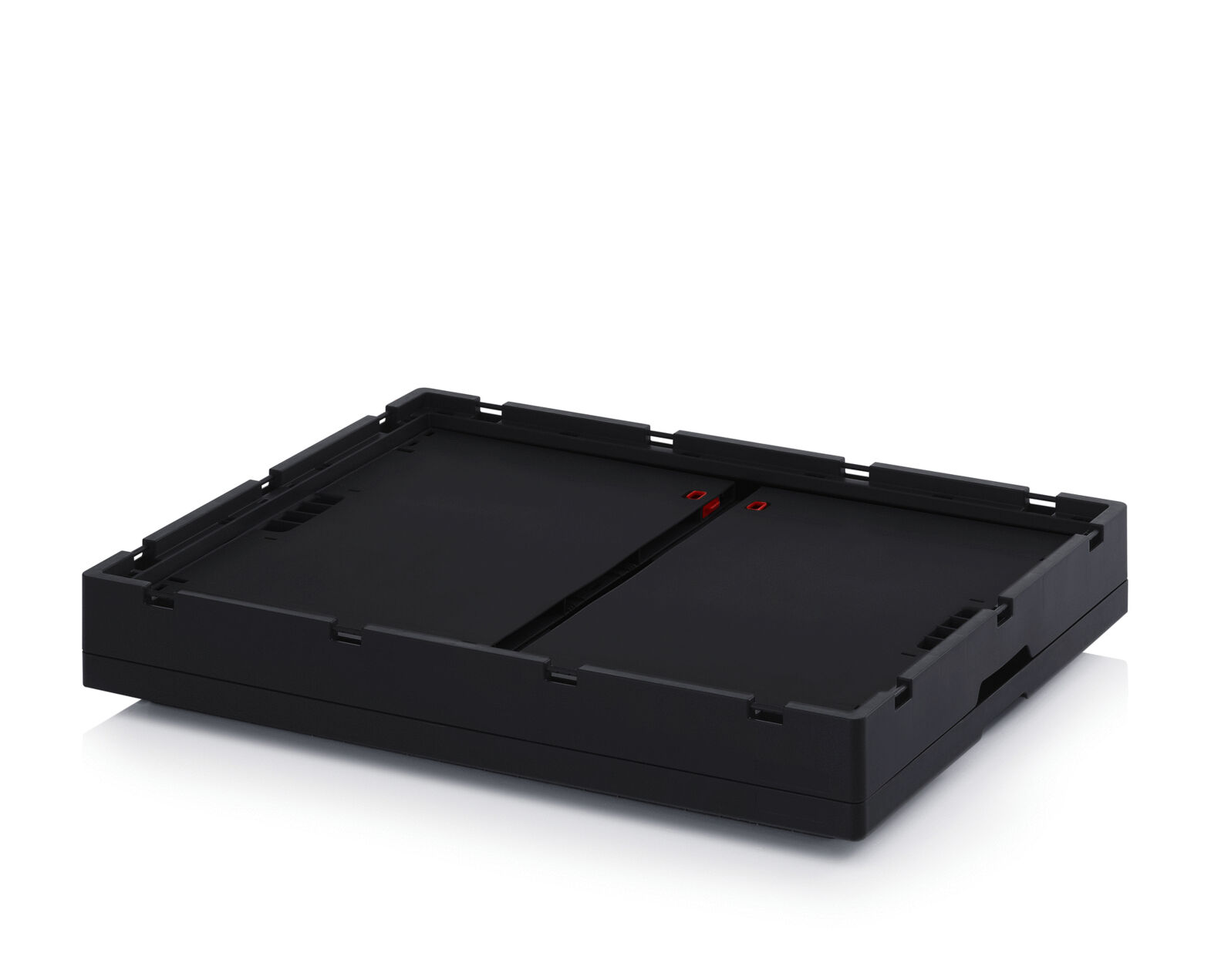

The image shows a flat, black box with slightly raised edges and a central division. The surface is smooth and there are a few small openings on the sides.
Preview: It is a black, square box with open sides. The top edge is reinforced, and a red label is attached to one side. The box appears sturdy and stackable.
Preview: The image shows a flat, black box with slightly raised edges and a central division. The surface is smooth and there are a few small openings on the sides.
ESD folding box, 188l
(Product No.: 5301.FB-8060445)
It is a black, square box with open sides. The top edge is reinforced, and a red label is attached to one side. The box appears sturdy and stackable.
The image shows a flat, black box with slightly raised edges and a central division. The surface is smooth and there are a few small openings on the sides.
Mobile Preview: It is a black, square box with open sides. The top edge is reinforced, and a red label is attached to one side. The box appears sturdy and stackable.
Mobile Preview: The image shows a flat, black box with slightly raised edges and a central division. The surface is smooth and there are a few small openings on the sides.
Notice

ESD folding box, 188l

ESD folding box, 188l

dpvlink:
17015
Length :
800 mm
Width :
600 mm
Height :
445 mm
Volume:
188 l
Properties:
Further product information

chevron-down
95.75 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

ESD folding box, 188l

The ESD folding box from AUER with a volume of 188 liters offers an efficient solution for the safe storage and transportation of electrostatically sensitive products. The external dimensions of the box are 800 x 600 x 445 mm, while the internal dimensions are 755 x 555 x 430 mm, allowing for a compact stacking height of 103 mm. When not in use, the box can be folded down to a height of just 125 mm, allowing for a volume reduction of up to 82% and significantly simplifying storage.
The box is made of robust polypropylene, finished in classic black, and can carry up to 25 kg. Its simple and sturdy folding mechanism ensures safe and easy handling. The ESD folding box meets the ESD standard DIN EN 61340-5-1, with a typical through and surface resistance of 10^3 to 10^10 Ohm, ensuring safe handling of electrostatically sensitive components.
Length
Length
800 mm
Width
Width
600 mm
Height
Height
445 mm
Volume
Volume
188 l
Height in folded state
Height in folded state
125 mm
Internal height
430 mm
Internal length
755 mm
Internal width
Internal width
555 mm
Stacking height
Stacking height
103 mm
Surface resistance Rs
Surface resistance Rs
103 - 1010 Ω
Volume resistance
Volume resistance
103 - 1010 Ω
Load capacity
Load capacity
25 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a rectangular, flat object in black and white. The left side has a continuous white area, while the right side has a recess. The background is black.
Label holder, transparent 102 x 65 mm for...
Label holder outside 102 x 65 mm /
inside 90 x 52 mm self-adhesive
dpvlink
812

2.20 CHF
The image displays a flat, rectangular frame in white with a transparent center. The background is black, highlighting the frame.
Label holder, transparent 184 x 98 mm for...
Label holder outside 184 x 98 mm /
inside 155 x 85 mm self-adhesive
dpvlink
812

2.20 CHF
On a black background, a white sheet of paper is stuck. On it, handwritten is "to QP". The sheet has no further decorations or images.
ESD label pocket IDP-STAT, transparent, readable...
ESD label holder IDP-STAT transparent /
Readable barcode, dimensions: 118 x 80 x 0.25 mm
dpvlink
812

1.55 CHF
On a black background, a white sheet of paper is stuck. On it, handwritten is "to QP". The sheet has no further decorations or images.
Label holder ESD, transparent 156 x 115 mm...
ESD Label holder 156 X 115 mm, self-adhesive
dpvlink
812

4.15 CHF
On a black background, a white sheet of paper is stuck. On it, handwritten is "to QP". The sheet has no further decorations or images.
Label holder ESD, transparent 115 x 83 mm...
ESD Label holder 115 X 83 mm, self-adhesive
dpvlink
812

3.75 CHF
The image shows a white, rectangular plastic or paper card with a notch at the top. It is flat and unprinted.
ESD Label pocket IDP-STAT, self-adhesive...
ESD label pocket IDP-STAT, transparent
Dimensions: 118 x 74 x 0.25 mm
Front IDP-STAT, back insulating film
dpvlink
812

0.95 CHF
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 298
Complete Catalog 2023 - 2024

Product Family

Folding box ESD

Article image
Article description
Length
Width
Height
Volume
Price
Compare
5301.FB-4030220 - ESD folding box, 21l
5301.FB-4030220
ESD folding box, 21l
400 mm
300 mm
220 mm
21 l
31.05 CHF
5301.FB-4030270 - ESD folding box, 26l
5301.FB-4030270
ESD folding box, 26l
400 mm
300 mm
270 mm
26 l
34.00 CHF
5301.FB-4030320 - ESD folding box, 31l
5301.FB-4030320
ESD folding box, 31l
400 mm
300 mm
320 mm
31 l
35.95 CHF
5301.FB-6040220 - ESD folding box, 46l
5301.FB-6040220
ESD folding box, 46l
600 mm
400 mm
220 mm
46 l
41.15 CHF
5301.FB-6040270 - ESD folding box, 56l
5301.FB-6040270
ESD folding box, 56l
600 mm
400 mm
270 mm
56 l
44.00 CHF
5301.FB-6040320 - ESD folding box, 67l
5301.FB-6040320
ESD folding box, 67l
600 mm
400 mm
320 mm
67 l
46.75 CHF
5301.FB-6040420 - ESD folding box, 87l
5301.FB-6040420
ESD folding box, 87l
600 mm
400 mm
420 mm
87 l
56.60 CHF
5301.FB-8060445 - ESD folding box, 188l
5301.FB-8060445
ESD folding box, 188l
800 mm
600 mm
445 mm
188 l
95.75 CHF
